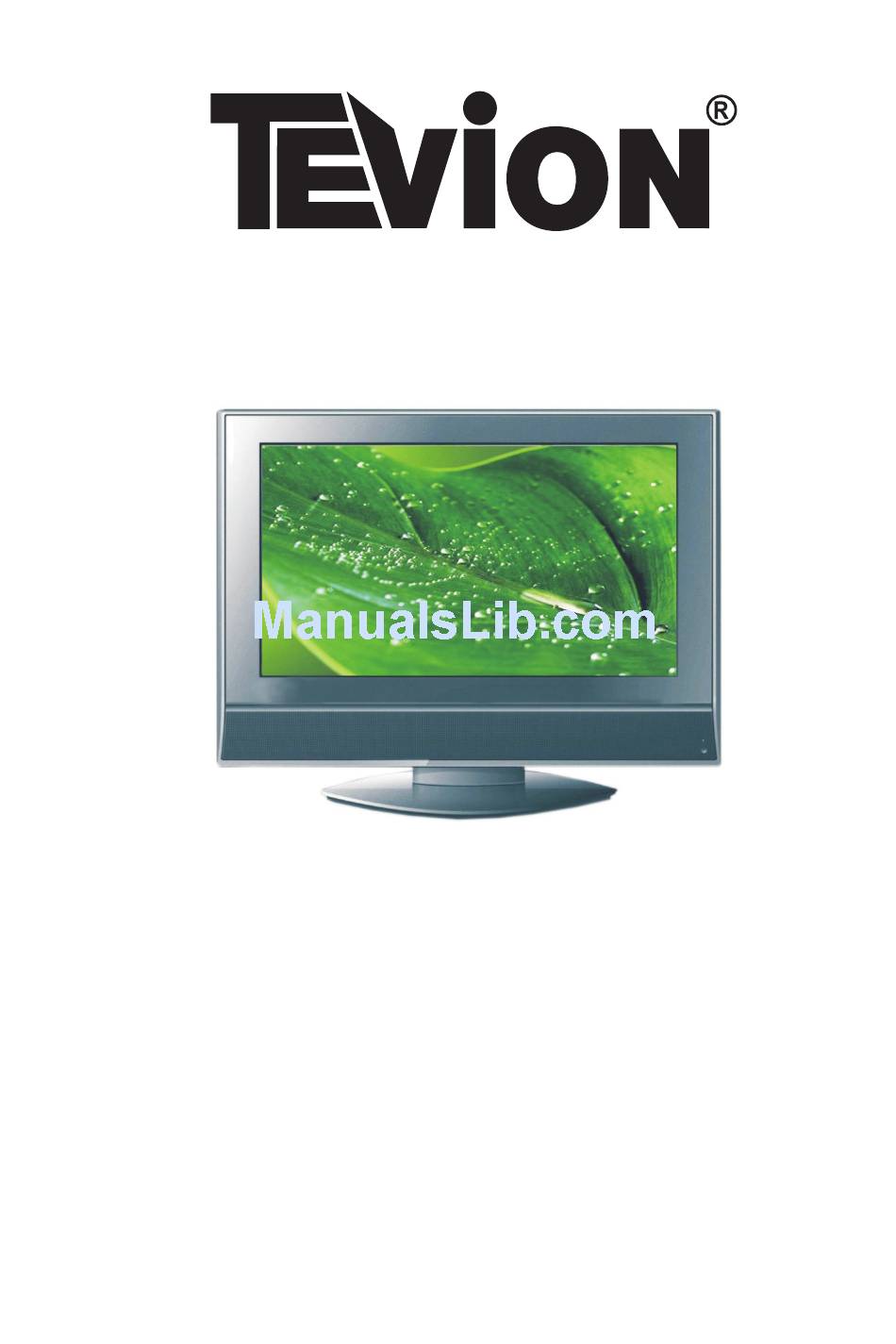

- Page 1 USER MANUAL LCD TV LCD1912 Thank you for your purchase of this Tevion® LCD TV. To enjoy your TV to the full from the very beginning, read this manual carefully and keep it handy for future reference.
-
Page 2: Important Safeguards
Warning To prevent fire or shock hazard, do not use this plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure . Do not expose this appliance to rain or moisture. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN... -
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS Caution Carrying the set requires two or more people Caution Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television. Caution Do not insert anything in the ventilation holes. if metal or something flammable enters, it may result in fire or electric shock. - Page 4 WARNINGS AND CAUTIONS Caution Never stand on, lean on or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall. Caution Do not place your television on an unstable cart, stand, shelf or table.
- Page 5 WARNINGS AND CAUTIONS Warning Take care not to connect too many appliances to the same mains socket as this could result in fire or electric shock. Do not place objects on this unit. it may damage the screen surface. Warning High voltages are used in the operation of this television receiver.
-
Page 6: Table Of Contents
Table of Contents Warnings and cautions Table of Contents Front/Back panel diagram Systems connection Remote Control Using the Remote Control Remote control instruction Battery Installation OPERATON INSTRUCTIONS Tuner on the LCD TV Main menu Teletext Nicam HELP / TROUBLESHOOTING SPECIFICATION... -
Page 7: Front/Back Panel Diagram
Front/Back panel diagram VOL- VOL+ MENU SOURCE Power Indicator Remote Sensor Power / Standby Button 13 14 REAR CONNECTIONS SIDE BUTTONS 7. Component (YUV) AUDIO INPUT CH- button 8. DC INPUT (DC 12V) 2. CH+ button 9. PC (VGA) INPUT 3. -
Page 8: Systems Connection
SYSTEMS CONNECTION CONNECTION: INPUT/OUTPUT JACK AS FOLLOWS: ANT Input, S-VIDEO Input, PC (VGA) Input, PC (audio) Input, Component (Y Pb Pr) Input, AV Input. CONNECT POWER: Connect the 12Vpower adapter to the power input of the LCD TV, and then connect the other end to 230-240V~ 50Hz power outlet. Note: 1. -
Page 9: Remote Control
Remote Controller Battery Installation Using the Remote Control Unless stated otherwise, the remote control Remove the battery compartment lid on the can operate all the features of the LCD TV. rear of the remote control by sliding the lid Always point the remote control directly at down, then off. -
Page 10: Operaton Instructions
OPERATION INSTRUCTIONS Turn on the LCD TV 1.Connect the 12Vpower adapter to the power input of the LCD TV, and then connect the other end to a suitable 230-240V~ 50Hz power supply socket. 2.Press the POWER button to turn the LCD TV on or off. 3.When the power is on, press the SOURCE or AV(remote) button to select the input mode you desire. - Page 11 OPERATION INSTRUCTIONS PICTURE MENU 1. Brightness: Adjust the picture brightness. 2. Contrast: Adjust the picture contrast. 3. Colour: Adjust the picture colour. 4. Sharpness: Adjust the picture sharpness. 5. Noise Reduction: Set the Noise Reduction function to ON or OFF. 6.
- Page 12 OPERATION INSTRUCTIONS SET UP MENU 1. Show indicator: Set the Show Indicator function to On or OFF. 2. Language: Select the On Screen Display (OSD) language. 3. Child lock: Set the child lock control to ON or OFF. 4. Timers: Select and set the timer modes. 5.
- Page 13 OPERATION INSTRUCTIONS PC (VGA) MODE - SUPPORTED RESOLUTION AND FREQUENCY The below table denotes the Screen Resolutions and Frequencies supported by this product when in the PC Mode. Ensure your PC (or other device) operates to one of the below Resolutions and Vertical Frequencies. 640x480 Resolution 800x600...
-
Page 14: Teletext
OPERATION INSTRUCTIONS TELETEXT Teletext features may vary depending on the Broadcasting in your area. Teletext is only available if the channel selected is transmitting Teletext. When in Teletext mode, the volume may still be altered by pressing the VOL+/VOL- or MUTE buttons. TXT Button Press the TXT button to enter the Teletext mode. -
Page 15: Nicam
OPERATION INSTRUCTIONS NICAM Press the NICAM button to set the TV’s sound to Nicam Stereo. This setting is usually set to Stereo to provide the best reproduction. If reception deteriorates or if the service is not available then switch to Mono. Mono (M1) and (M2) can also be selected if a mono signal is being transmitted. -
Page 16: Help / Troubleshooting
HELP / TROUBLESHOOTING Check power supply and cable connection No picture and no sound Make sure the power button is ON Check that the setting for brightness and contrast ratio are correct Check audio cable and audio volume Has picture but no sound Make sure TV was not muted Check that the colour and sound systems are set to PAL BG... -
Page 17: Specification
SPECIFICATION LCD: 19”LCD (16:10) View angle: Horizontal view angle: 160 degrees Vertical view angle: 135 degrees Resolution: 1440 x 900 Display Colours: 16.2 Million Response Time: 8ms (Gray to Gray) TV Colour System: PAL, NTSC, SECAM TV Sound System: B/G, D/K, I Channels: Inputs: VGA (PC), Y Pb Pr (HD), S-VIDEO, PC... - Page 18 75-L1002201-01...
