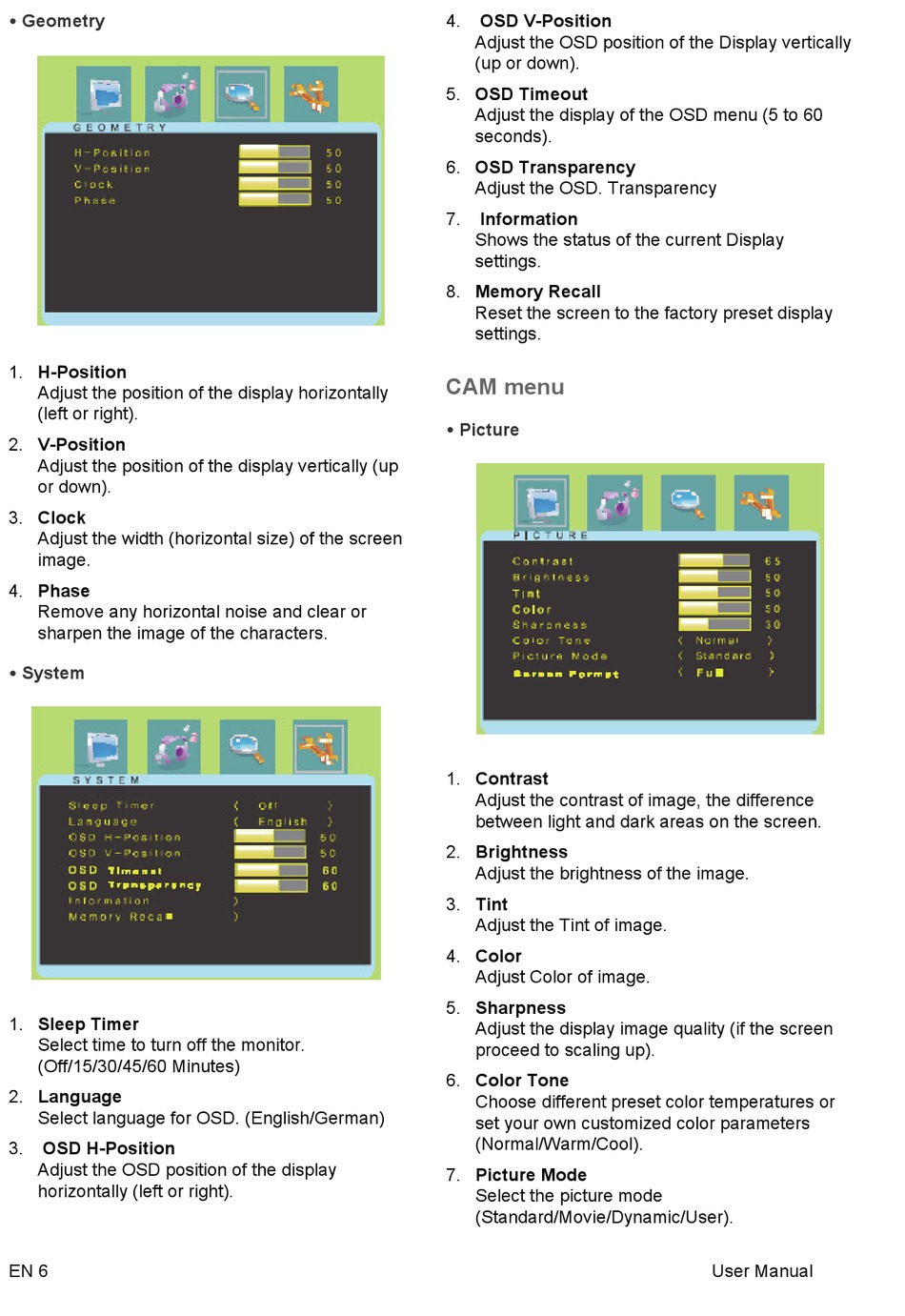

Cam Menu - Interlogix TVM-1700 User Manual

 Geometry
1. H-Position
Adjust the position of the display horizontally
(left or right).
2. V-Position
Adjust the position of the display vertically (up
or down).
3. Clock
Adjust the width (horizontal size) of the screen
image.
4. Phase
Remove any horizontal noise and clear or
sharpen the image of the characters.
 System
1. Sleep Timer
Select time to turn off the monitor.
(Off/15/30/45/60 Minutes)
2. Language
Select language for OSD. (English/German)
3. OSD H-Position
Adjust the OSD position of the display
horizontally (left or right).
EN 6
4. OSD V-Position
Adjust the OSD position of the Display vertically
(up or down).
5. OSD Timeout
Adjust the display of the OSD menu (5 to 60
seconds).
6. OSD Transparency
Adjust the OSD. Transparency
7. Information
Shows the status of the current Display
settings.
8. Memory Recall
Reset the screen to the factory preset display
settings.

CAM menu

 Picture
1. Contrast
Adjust the contrast of image, the difference
between light and dark areas on the screen.
2. Brightness
Adjust the brightness of the image.
3. Tint
Adjust the Tint of image.
4. Color
Adjust Color of image.
5. Sharpness
Adjust the display image quality (if the screen
proceed to scaling up).
6. Color Tone
Choose different preset color temperatures or
set your own customized color parameters
(Normal/Warm/Cool).
7. Picture Mode
Select the picture mode
(Standard/Movie/Dynamic/User).
