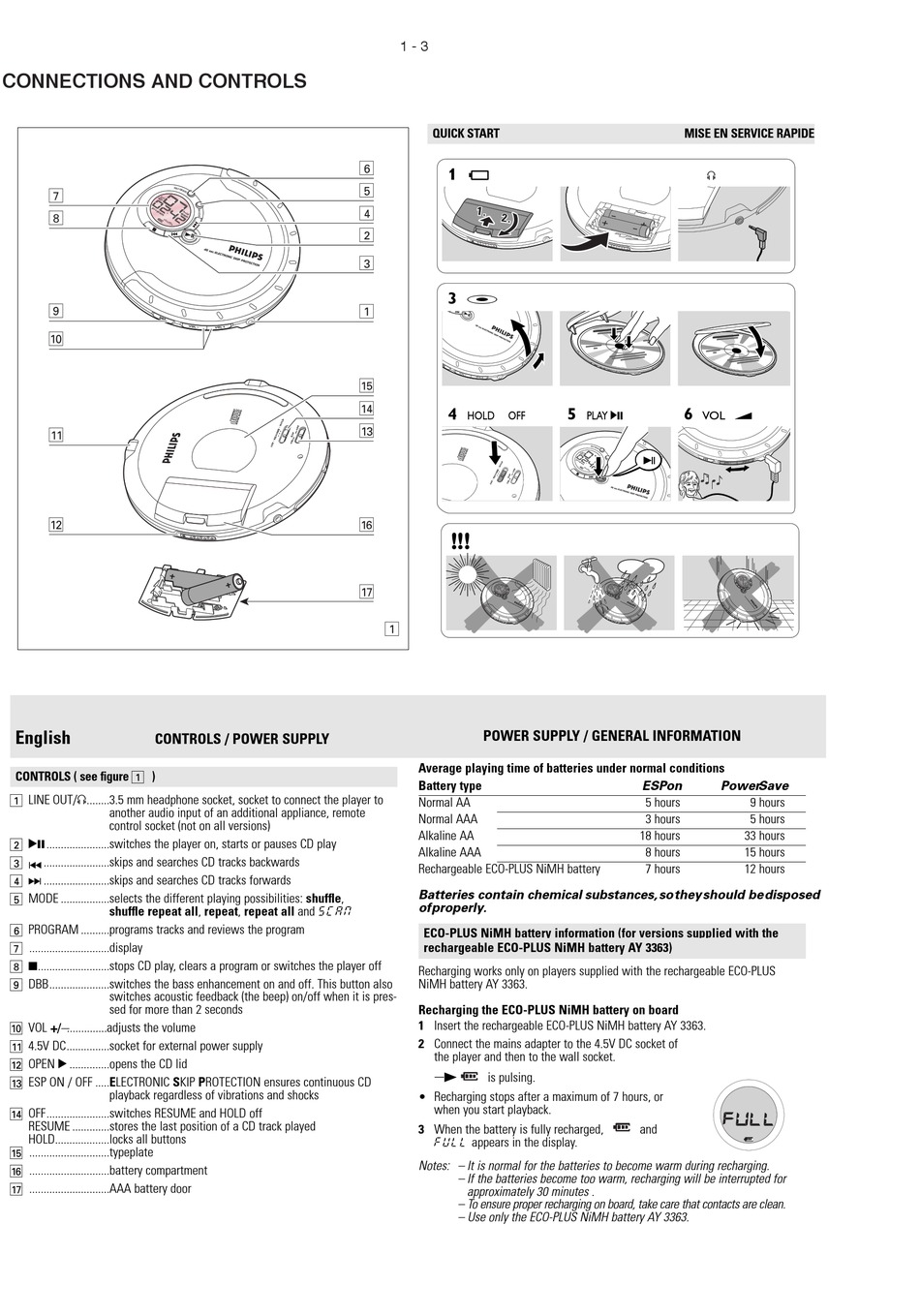

CONNECTIONS AND CONTROLS

7
8
9
0
!
@
English
CONTROLS / POWER SUPPLY
CONTROLS ( see figure 1 )
1 LINE OUT/p........3.5 mm headphone socket, socket to connect the player to
another audio input of an additional appliance, remote
control socket (not on all versions)
2 2; ......................switches the player on, starts or pauses CD play
§ .......................skips and searches CD tracks backwards
3
4 §
.......................skips and searches CD tracks forwards
5 MODE .................selects the different playing possibilities: shuffle,
shuffle repeat all, repeat, repeat all and SCAN
6 PROGRAM ..........programs tracks and reviews the program
7 ............................display
8 9.........................stops CD play, clears a program or switches the player off
9 DBB.....................switches the bass enhancement on and off. This button also
switches acoustic feedback (the beep) on/off when it is pres-
sed for more than 2 seconds
-
0 VOL +/ ..............adjusts the volume
! 4.5V DC...............socket for external power supply
@ OPEN 2 ..............opens the CD lid
# ESP ON / OFF .....ELECTRONIC SKIP PROTECTION ensures continuous CD
playback regardless of vibrations and shocks
$ OFF......................switches RESUME and HOLD off
RESUME .............stores the last position of a CD track played
HOLD...................locks all buttons
% ............................typeplate
^ ............................battery compartment
& ............................AAA battery door
1 - 3
QUICK START
6
1
5
4
2
3
3
#
1
%
$
4
HOLD OFF
#
^
!!!
&
1
POWER SUPPLY / GENERAL INFORMATION
Average playing time of batteries under normal conditions
Battery type
Normal AA
Normal AAA
Alkaline AA
Alkaline AAA
Rechargeable ECO-PLUS NiMH battery
Batteries contain chemical substances, so they should be disposed
of properly.
ECO-PLUS NiMH battery information (for versions supplied with the
rechargeable ECO-PLUS NiMH battery AY 3363)
Recharging works only on players supplied with the rechargeable ECO-PLUS
NiMH battery AY 3363.
Recharging the ECO-PLUS NiMH battery on board
1 Insert the rechargeable ECO-PLUS NiMH battery AY 3363.
2 Connect the mains adapter to the 4.5V DC socket of
the player and then to the wall socket.
y
is pulsing.
• Recharging stops after a maximum of 7 hours, or
when you start playback.
3 When the battery is fully recharged,
FULL appears in the display.
Notes: – It is normal for the batteries to become warm during recharging.
– If the batteries become too warm, recharging will be interrupted for
approximately 30 minutes .
– To ensure proper recharging on board, take care that contacts are clean.
– Use only the ECO-PLUS NiMH battery AY 3363.
MISE EN SERVICE RAPIDE
p
5 PLAY 2; 6
VOL
ESP on Power Save
5 hours
3 hours
18 hours
8 hours
7 hours
and
9 hours
5 hours
33 hours
15 hours
12 hours
