Connections
1. Connect the satellites to the left and right RCA outputs at the rear panel of the subwoofer.
2. Place both satellites on extreme sides of the listening position.
3. The subwoofer can be placed on the floor and near the playback device.
4. Connect the playback device to the rear 3.5 mm stereo input with the included signal cable.
5. The playback device such as CD/DVD, Mp3/Mp4 player or T V can be connected to the speaker
system.
6. Last, connect the AC power adapter to the rear of the subwoofer and to the AC power supply
source. Please ensure the AC power supply match the power requirement printed at the rear panel.
7. For the remote control, please ensure fresh battery is correctly loaded.
Operations
1. Ensure the master volume is at the lowest setting.
2. Turn on the main AC power and switch on the speaker system from the rear power switch.
3. Start the playback device and song.
4. Adjust the volume on the media player, and speaker master volume to your preferred listening
level.
5. For remote control, simply point directly at the subwoofer and adjust the volume control. It is a
wireless remote control using RF signals, therefore you can use it at 360° angle from the subwoofer.
Please use within 3 m radius.
6. When the turntable is turned or depressed, the LED will illuminate in blue colour. Please turn
EN
the volume turntable slowly for level adjustments.
5
7. To mute, depress the volume turntable once (less than 1.5 seconds) to activate. To deactivate,
depress again and it will return to volume mode.
8. For adjusting the bass, depress the volume turntable for more than 1.5 seconds. The LED will
turn orange in colour indicating bass mode. Start turning the turntable to adjust the bass level. To
return to volume mode again, depress for more than 1.5 seconds or after 5 seconds of non-activity.
9. If the remote control is left idle for 10 seconds, it will return to power-saving mode. If activated in
power saving mode, it will return to the last function mode.
Note: it is advisable not to turn the volume too loud or to its extreme volume limit to avoid damage
to the speaker driver material and impair your hearing. Always adjust in slow increment. Do not
block the ventilation of the subwoofer during use.

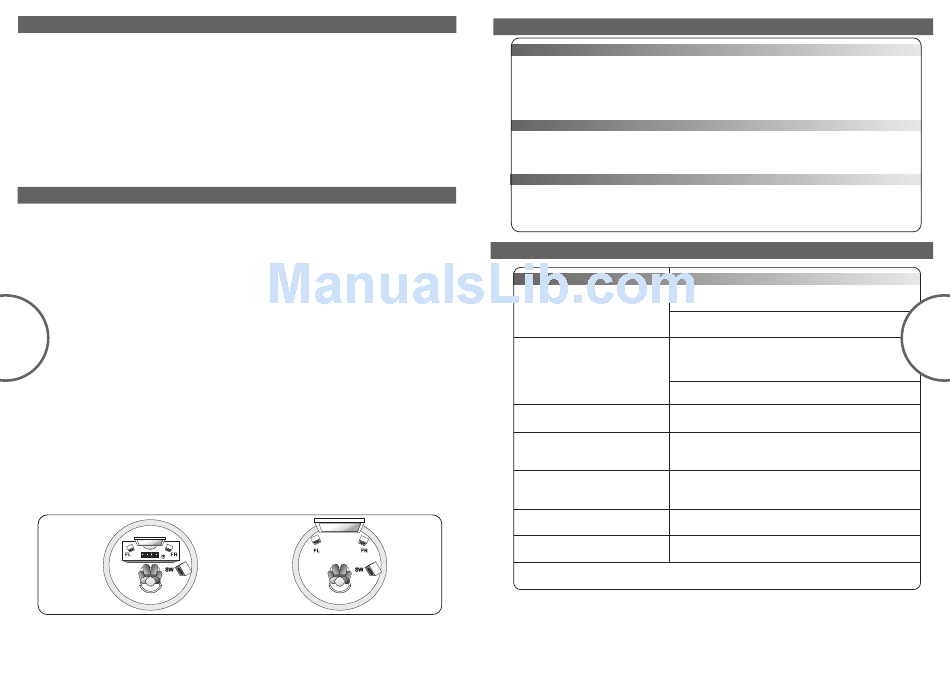

Ideal listening position
and placement
FL - front left
FR - front right
SW - subwoofer

Technical Information

Amplifier
Total Power: 40 Watt RMS
Power distribution: 10 Watt x 2 + 20 Watt
Harmonic distortion: < 0.5 % 1 W 1 kHz
Frequency response: 50 Hz - 18 kHz
Signal/Noise ratio: > 75 dB
Separation: > 50 dB
Speakers
Tweeter type: 2.5" x 2
Tweeter rated power: 15 Watt x 2 4 Ohm
Woofer type: 5"
Woofer rated power: 30 Watt 8 Ohm
Interfaces
Output: 2RCAs
Input: 3.5mm stereo jack
Wireless: RF remote control (Battery type: Alkaline AAA / 3 m radius)
Frequently Asked Questions (FAQ)
Questions
Please ensure fresh batteries are inside the
battery compartment of the remote control.
Wireless volume intermittent
Try to use it nearer to the subwoofer.
Check if the audio source is properly paired and
connected. Secondly check if the 3.5mm stereo
plug is correctly inserted.
No Sound
Ensure volume is correctly adjusted
Check the 3.5 mm stereo cable for proper connection
Intermittent sound
and cable is firmly inserted
What are the LED illumination LED on the RF remote control indicates operating
meaning?
conditions.
Any playback devices such as PC, notebook with USB slot,
What are the products
CD/DVD player, Media Players with 3.5mm stereo plug.
supported?
Check if the volume is at lower level and the Mp3
Sound is distorted
format is recorded at above 196 bitrate
It is magnetically shielded so can be placed
Where to place this speaker
near LCD TV Monitor without any distortion
If the problem still exists, please contact the distributor or ask for professional service
Answers
