satspeed V7621-A1 User's Manual
Follow each STEP carefully and only go to the next step once you have complete the
previous STEP.
Connection of Integrated Access Device

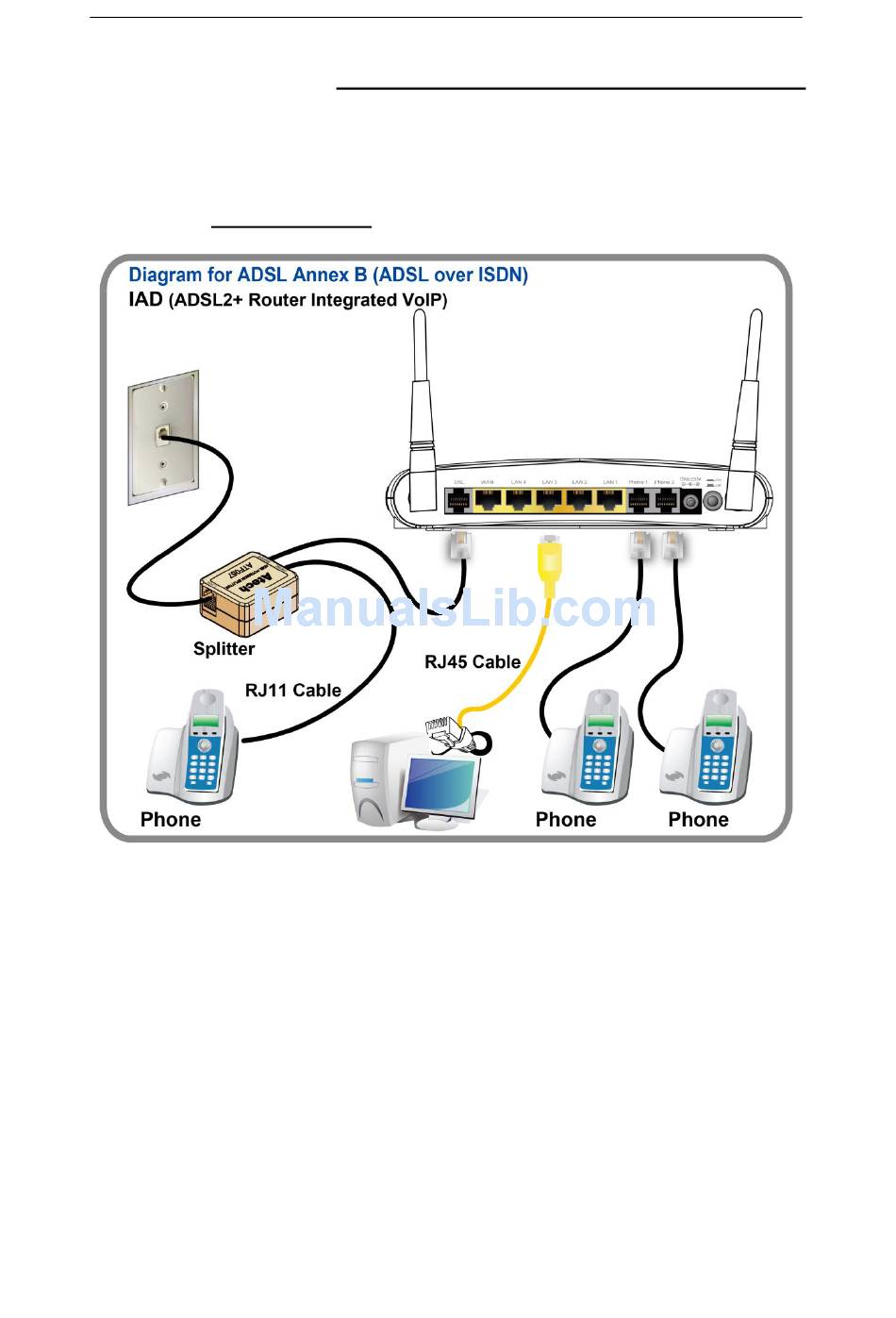

If you have an ISDN telephone line connect the modem router as shown below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of the 4
Integrated Access Device's LAN Ports.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the
"LINE" port of the supplied splitter. Connect another RJ11 telephone cable to the
"MODEM" port of the splitter and connect the other end of this cable to the LINE port of
your Integrated Access Device. (If there is no option Splitter, please connect the supplied
RJ11 telephone cable from your home's telephone jack to the "LINE" port of your
Integrated Access Device.)
3. Connect a RJ11 telephone cable to the "PHONE" port of the splitter and connect the other
end to your telephone.
4. Connect the power adapter to the power inlet "POWER" of the Integrated Access Device
and turn the "ON/OFF SWITCH" switch of your Integrated Access Device on.
