ENGLISH
OPERATION MANUAL
Thank you for buying this JB Systems product. To take full advantage of all
possibilities, please read these operating instructions very carefully.
The JB Systems TUBELED™ system contains the following components:
• The 1m long TUBELED™ tubes: to be connected to the controller.
• The TUBELED™ controller: controls the connected led tubes.
• Signal extension cables: 5m or 10m.
• Power extension cables: 5m, 10m or 20m.
This manual only explains the functions of the controller.
FEATURES
• Dedicated controller used to control the TUBELED™ led tubes (not included)
• Controls up to 4000 tubes, no extra power boosters needed.
• 38 preprogrammed patterns
• Auto mode scans all patterns automatically
• Pattern selection by DMX512:
o Channel1: choose patterns
o Channel2: speed control
o Channel3: interval time
o Channel4: strobe/flash rate
• RGB color mixing, controlled by DMX512 (make your own colors):
o Channel1: not used (set to zero)
o Channel2: dimming red color
o Channel3: dimming green color
o Channel4: dimming blue color
• Adjustable strobe function
• Adjustable speed and interval time for most patterns
• Nice plastic enclosure can be fixed on the wall
• Auto save function: saves the last working mode for all patterns individually.
• Perfect for use in: retail stores, commercial displays, architectural lighting, indoor
and outdoor decoration, clubs, pubs, mobile DJs, trussing, ...

BEFORE USE

Check the contents:
Check if the carton contains the following items:
• TUBELED™ controller
• Mains DC Adapter 12V 500mA
• Operating instructions
JB SYSTEMS
OPERATION MANUAL
1/29 TUBELED™ CONTROLLER
ENGLISH
Some important instructions:
• To protect the environment, please try to recycle the packing material as much as
possible.
• Keep this booklet in a safe place for future consultation. If you sell this product, be
sure to add this user manual.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• Install the unit always indoor!
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction
may result. If a foreign object enters the unit, immediately disconnect the mains
power.
• Prevent use in dusty environments and clean the unit regularly.
• The electrical installation should be carried out by qualified personal.
• We strongly suggest NOT opening the cover, there are no user serviceable parts
inside.
• In the event of serious operating problems, stop using the controller and contact your
dealer immediately.

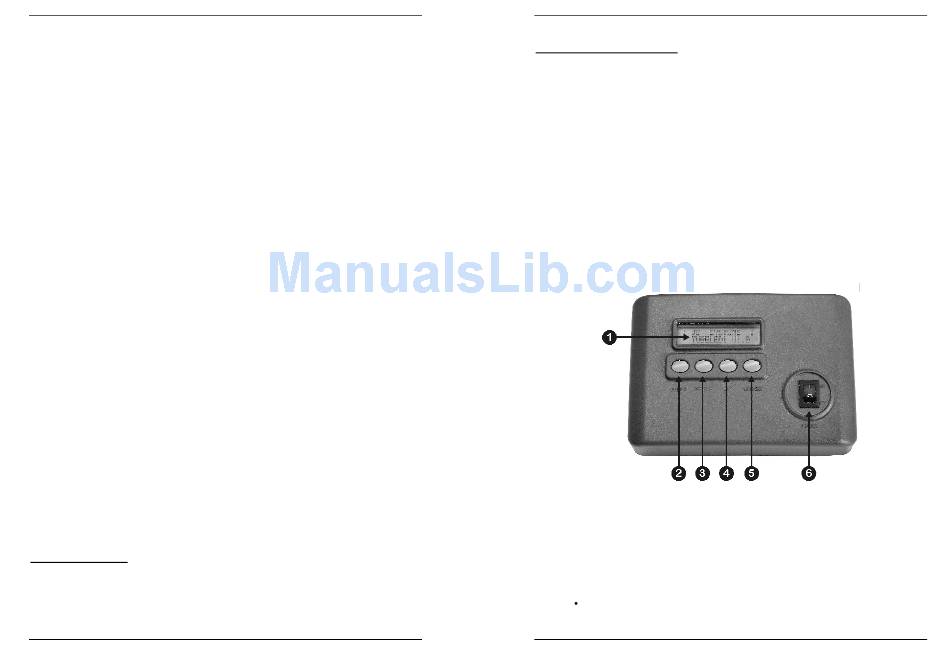

CONTROLS
(FRONT)
1. LCD DISPLAY: shows you all necessary information about working mode,
parameters etc.
2. MODE BUTTON: used to choose the desired working mode and patterns. The
display shows another function every time you push the button. Keep the button
pressed if you want to browse faster through all possible modes. (see further for
the possible options to choose from)
3. SETUP BUTTON: used to set the parameters of the selected mode or pattern.
Almost every pattern can have its own parameters. These parameters are saved
for every pattern individually.
Interval: this is the waiting time between two steps in a chase pattern.
