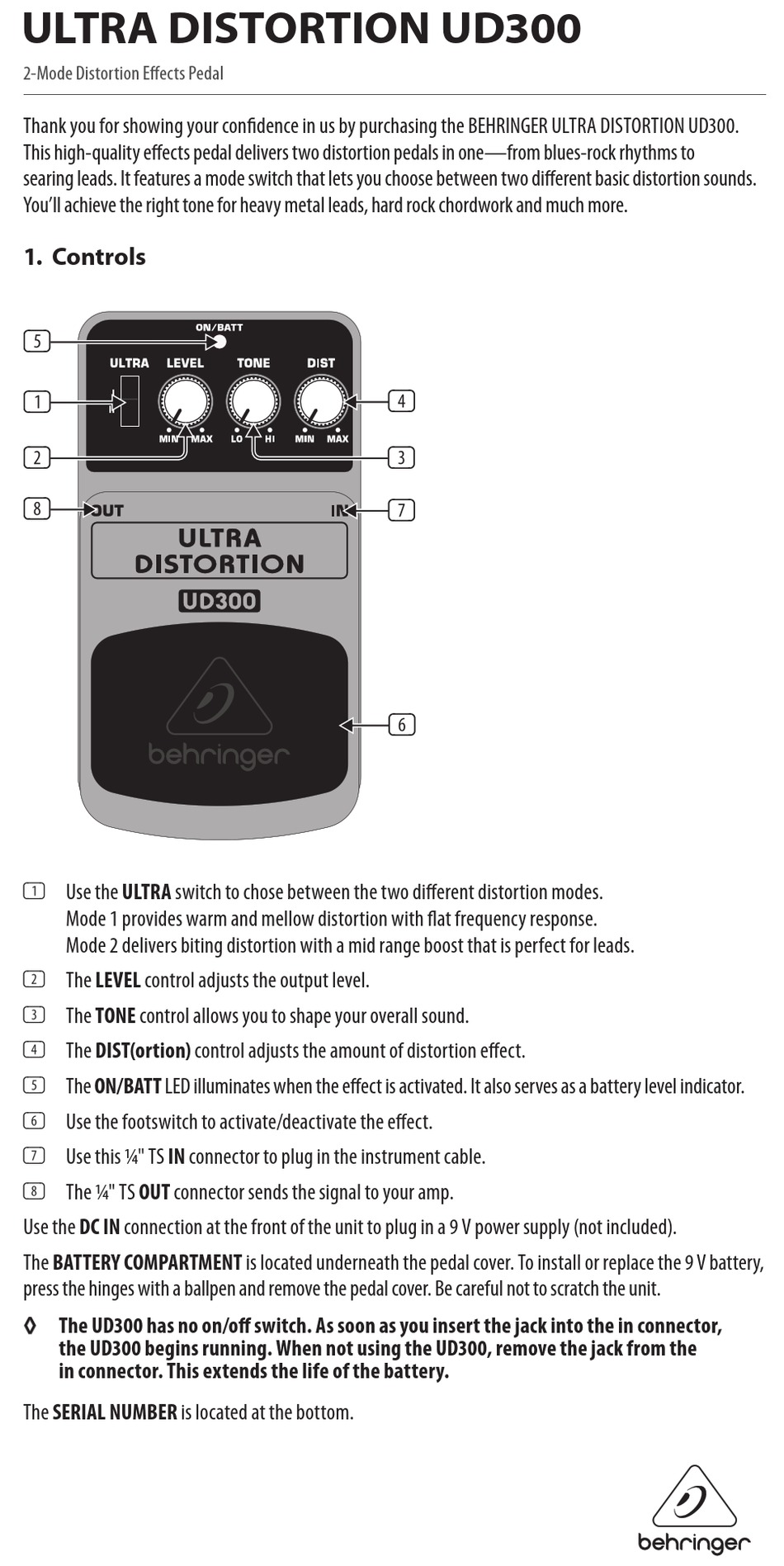

Behringer ULTRA DISTORTION UD300 User Manual

ULTRA DISTORTION UD300
2-Mode Distortion Eff ects Pedal
Thank you for showing your confi dence in us by purchasing the BEHRINGER ULTRA DISTORTION UD300.
This high-quality eff ects pedal delivers two distortion pedals in one—from blues-rock rhythms to
searing leads. It features a mode switch that lets you choose between two diff erent basic distortion sounds.
You'll achieve the right tone for heavy metal leads, hard rock chordwork and much more.
1. Controls
(5)
(1)
(2)
(8)
(1) Use the ULTRA switch to chose between the two diff erent distortion modes.
Mode 1 provides warm and mellow distortion with fl at frequency response.
Mode 2 delivers biting distortion with a mid range boost that is perfect for leads.
(2) The LEVEL control adjusts the output level.
(3) The TONE control allows you to shape your overall sound.
(4) The DIST(ortion) control adjusts the amount of distortion eff ect.
(5) The ON/BATT LED illuminates when the eff ect is activated. It also serves as a battery level indicator.
(6) Use the footswitch to activate/deactivate the eff ect.
(7) Use this ¼" TS IN connector to plug in the instrument cable.
(8) The ¼" TS OUT connector sends the signal to your amp.
Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery,
press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.
◊ ◊
The UD300 has no on/off switch. As soon as you insert the jack into the in connector,
the UD300 begins running. When not using the UD300, remove the jack from the
in connector. This extends the life of the battery.
The SERIAL NUMBER is located at the bottom.
(4)
(3)
(7)
(6)
