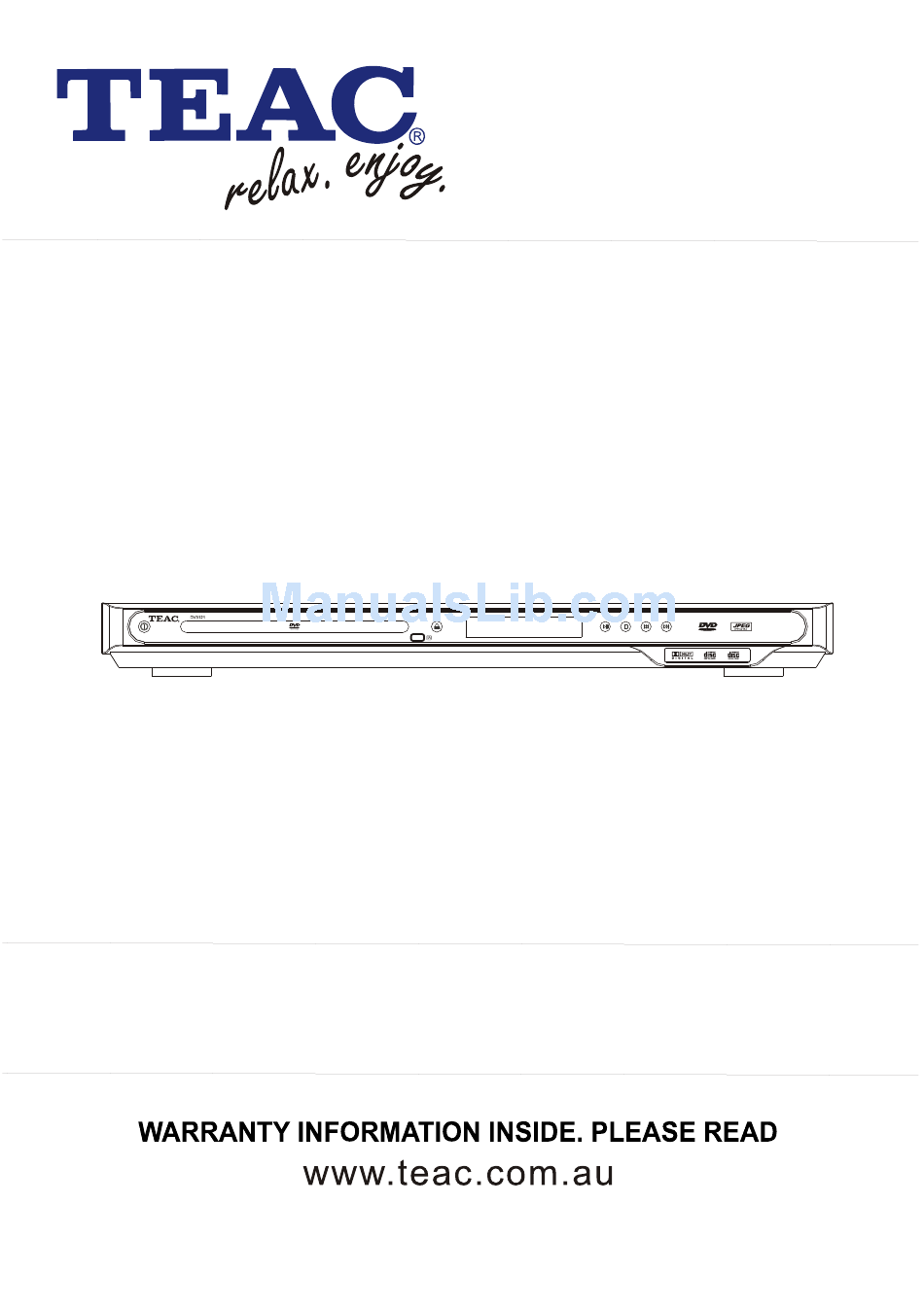

  • Page 1 DV3121 DVD Player USER MANUAL IMPORTANT!
  • Page 2 The warranty does not cover freight or insurance. In all cases of transit damage or lost, a claim must be filed against the carrier by the purchaser, even if shipment is arranged by TEAC. TEAC in- home service may also be available at a fee upon request.
  • Page 3 *Your nearest Authorised TEAC Service Centre is listed in your Owners Manual 10. No one is authorised to assume any liability on behalf of TEAC or impose any obligation on it, in connection with the sale of any equipment other than as stated in this warranty and outlined above.
  • Page 4 Dealer’s Address Postcode Please ensure that your product is packed appropriately upon return to the service centre. If you have any other queries regarding service or warranty please contact the TEAC Customer Care Centre below: service@teac.com.au www.teac.com.au 1800 656 700...

  • Page 5: Table Of Contents

    Content Introduction Safety Precautions Important Safety Instructions Caution Features Front Panel and Rear Panel Illustration Remote Control Connections TV set Connecting Digital Audio Connecting Advanced Features Mode and Features Setup Remote Control Operation Kodak Picture CD Playback Others Troubleshooting Remote Control Preparation Specifications...

  • Page 6: Safety Precautions

    RISQUE CHOC ELECTRIQUE NE AVIS PAS OUVRIR...

  • Page 10: Introduction

    Features Introduction Full compatibility with DVD, CD, Kodak Picture CD, CD-R and CD-RW (finalized Screensaver Multiple playback modes: Program, Search Coaxial digital audio output S-video, composite video and component (Y, Pb, Pr) video outputs Disc formats supported by this player: Dolby Digital Multi-angle Subtitle choices...

  • Page 11: Front Panel And Rear Panel Illustration

    7 8 9 POWER POWER NEXT BUTTON NEXT BUTTON VFD SCREEN VFD SCREEN CABIN DOOR CABIN DOOR PLAY/PAUSE BUTTON PLAY/PAUSE BUTTON SENSOR SENSOR STOP BUTTON STOP BUTTON OPEN/CLOSE BUTTON OPEN/CLOSE BUTTON PREV BUTTON PREV BUTTON 100V-240V~ 50/60Hz 1 2 3 2.0 CH Audio output 2.0 CH Audio output COMPOSITE VIDEO output jack...

  • Page 12: Remote Control

    Introduction Remote Control VFD DISPLAY SVCD SVCD DVD DISC DVD DISC SVCD/VCD/CD DISC SVCD/VCD/CD DISC PLAY TIME PLAY TIME DOLBY DIGITAL DOLBY DIGITAL Mp3 DISC Mp3 DISC PLAY/PAUSE PLAY/PAUSE Remote Control STANDBY STANDBY OPEN/CLOSE SUBTITLE 0-10+ NUMBER KEY LANGUAGE ZOOM TITLE SLOW ANGLE...

  • Page 14: Tv Set Connecting

    Connecting to an AV Amplifier with Digital Audio Input Connections Coaxial Amplifier VOLUME INPUT SELECTOR POWER BYPASS PRO LOGIC 3 STEREO MODE TEST CHANNEL KARAOKE MUTE DOWN BASS TREBLE ECHO MIC VOL EXCITE Notes Notes 1. The DVD audio setting output need to be settled for the 1.

  • Page 15: Advanced Features

    Advanced Features 1. General Steps of setup menu A) Press the setup button, the main setup menu appears. A) Press the setup button, the main setup menu appears. SYSTEM SETUP SYSTEM SETUP TV SYSTEM VIDEO TV TYPE DEFAULT EXIT SETUP B) Press the Left and Right arrow buttons to highlight the icon of the desired B) Press the Left and Right arrow buttons to highlight the icon of the desired page, then press the Down or Right arrow button to activate that page.
  • Page 16 Advanced Features VIDEO SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION SHARPNESS EXIT SETUP A)Press the Arrow buttons to highlight the Exit Setup option,then press A)Press the Arrow buttons to highlight the Exit Setup option,then press Enter or Setup again to exit Setup Menu Enter or Setup again to exit Setup Menu 2.
  • Page 17 Advanced Features 2.1.2 VIDEO 2.1.2 VIDEO According to the setting of the output jack of TV set, you can choose According to the setting of the output jack of TV set, you can choose INTERLACE-YUV,P-SCAN Y,Pb,Pr, S-VIDEO. INTERLACE-YUV,P-SCAN Y,Pb,Pr, S-VIDEO. SYSTEM SETUP SYSTEM SETUP TV SYSTEM...
  • Page 18 Advanced Features 2.1.4 DEFAULT 2.1.4 DEFAULT The DEFAULT setup options are RESTORE factory setup. The DEFAULT setup options are RESTORE factory setup. SYSTEM SETUP SYSTEM SETUP TV SYSTEM VIDEO TV TYPE DEFAULT RESTORE RESTORE EXIT SETUP When your unit does not work properly, It may probably result from some wrong When your unit does not work properly, It may probably result from some wrong settings.
  • Page 19 Advanced Features LANGUAGE SETUP LANGUAGE SETUP ENGLISH ENGLISH OSD LANGUAGE GERMAN GERMAN AUDIO LANG SPANISH SPANISH SUBTITLE LANG FRENCH FRENCH MENU LANG SLOVAK SLOVAK CZECH CZECH POLISH POLISH LATIN LATIN EXIT SETUP 2.2.3 2.2.3 SUBTITLE LANG SUBTITLE LANG Highlight the SUBTITLE LANG option, and press the Arrow buttons Highlight the SUBTITLE LANG option, and press the Arrow buttons to choose the subtitle language you prefer.
  • Page 20 Advanced Features 2.3 AUDIO SETUP 2.3 AUDIO SETUP The audio setup options are illustrated as below: The audio setup options are illustrated as below: 2.3.1 AUDIO OUT 2.3.1 AUDIO OUT Highlight the AUDIO OUT option, and press the Arrow buttons to Highlight the AUDIO OUT option, and press the Arrow buttons to choose the audio output mode you prefer.
  • Page 21 Advanced Features 2.4.1 BRIGHTNESS 2.4.1 BRIGHTNESS Use the Up and Down arrow buttons to move the scroll and Use the Up and Down arrow buttons to move the scroll and adjust the adjust the brightness. brightness. VIDEO SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION...
  • Page 22 Advanced Features 2.4.4 SATURATION 2.4.4 SATURATION Use the Up and Down arrow butt o ns to move the scroll and adjus t the Use the Up and Down arrow butt o ns to move the scroll and adjus t the saturation.
  • Page 23 Advanced Features SPEAKER SETUP SPEAKER SETUP The speaker setup options are illustrated as below: The speaker setup options are illustrated as below: 2.5.1 2.5.1 DOWNMIX DOWNMIX A) LT / RT A) LT / RT Choose this setting when the DVD player are Choose this setting when the DVD player are connected to a 2 Channel Analog Audio Input.
  • Page 24 Advanced Features DIGITAL SETUP DIGITAL SETUP The DIGITAL SETUP options are illustrated as below: The DIGITAL SETUP options are illustrated as below: 2.6.1 DYNAMIC RANGE 2.6.1 DYNAMIC RANGE When LINE OUT is selected,choose this setting to adjust the line out ratio for When LINE OUT is selected,choose this setting to adjust the line out ratio for different effects.

  • Page 25: Remote Control Operation

    Advanced Features DISPLAY DISPLAY During playback,press DISPLAY to show the current time counter position. Disc type Play time of the current title Play time of the current title Current title Total Chapter Total title Current Chapter Press DISPLAY to show the Audio and Subtitle message menu. Language Angle Audio type...
  • Page 26 Advanced Features Press Time again to show the remain play time. Press Time again to show the remain play time. Current title Current title Remain play time Remain play time Total title Total title Total Chapter Total Chapter Current Chapter Current Chapter GOTO GOTO...
  • Page 27 Advanced Features 0-10+ keys 0-10+ keys These keys are used to input the time, as well as title, chapter and track These keys are used to input the time, as well as title, chapter and track numbers. numbers. When a numeric item is displayed on the screen, press the 0-10+ keys to When a numeric item is displayed on the screen, press the 0-10+ keys to select the desired entry, and press SELECT to confirm.
  • Page 28 Advanced Features NEXT NEXT Press NEXT to skip to the next chapter or track. Press NEXT to skip to the next chapter or track. STOP STOP Press STOP once during playback to stop and hold playback. Press STOP once during playback to stop and hold playback. Press PLAY to resume playback from the point you pressed STOP .
  • Page 29 Advanced Features VOL- VOL+ VOL- VOL+ Press Volume < VOL+> button to increase Volume. Press Volume < VOL+> button to increase Volume. Press < VOL-> button to reduce Volume till to no volume output. Press < VOL-> button to reduce Volume till to no volume output. MUTE MUTE Press MUTE to mute the Audio output.
  • Page 30 Advanced Features PROG PROG White [PROGRAM] is on, press ENTER to display the [Program] submenu: White [PROGRAM] is on, press ENTER to display the [Program] submenu: Others Input the track numbers in the order you would like them to Input the track numbers in the order you would like them to Program Input play.

  • Page 31: Kodak Picture Cd Playback

    Advanced Features IMAGE ROTATION Press the DIRECTION button ( to rotation the image as you prefer. Q1/2 Q1/3 Q1/4 QOFF...

  • Page 32: Troubleshooting

    Make sure the Main unit s POWER button is on enter enter...

  • Page 33: Remote Control Preparation

    Remote Control Preparation Other Battery installation Battery installation Using the remote Using the remote 1.Open the cover 1.Open the cover Point the remote control at the remote sensor. (The pictures below are for reference only.) 2.Install batteries 2.Install batteries 3.Close the cover 3.Close the cover Notes: Point the remote control directly at the...

  • Page 34: Specifications

    Specifications Power requirements: AC 100-240 Volt, 50/60Hz Power requirements: AC 100-240 Volt, 50/60Hz Power consumption: 15W Power consumption: 15W Video standard: NTSC/PAL/AUTO Video standard: NTSC/PAL/AUTO Unit Weight: 2.06kg Unit Weight: 2.06kg Disc s COMPATIBILITY: DVD,DVD+/-R/RW,VCD,JPEG.CD-DA,CD-R, Disc s COMPATIBILITY: DVD,DVD+/-R/RW,VCD,JPEG.CD-DA,CD-R, CD-RW. CD-RW.
  • Page 35 TEAC AUSTRALIA PTY.,LTD. A.B.N.: 11 113 998 048 Service Providers in Australia please contact one of the following service providers in your area if you require service for your product. Name Address Service area Phone Associated Electronics 7 Molonglo Mall...
  • Page 36 TEAC AUSTRALIA PTY.,LTD. A.B.N.: 11 113 998 048 Inverlec Electronics Shop 1,20 Glen Innes Road INVERELL 2360 (02)67 22 4522 (02)67 22 4522 Maxwell Electronics 106 Bath Road KIRRAWEE 2232 (02)95 42 300 (02)95 42 3377 AVL Electronics 2/87 Bold Street...
  • Page 37 TEAC AUSTRALIA PTY.,LTD. A.B.N.: 11 113 998 048 Bowen Retravision (Northern Elect) 40 Bowen Street BOWEN 4805 (07)47 86 1633 (07)47 86 2257 Telefix Unit 9, 19 Lensworth Street COOPERS PLAINS 4108 (07)33 23 2700 (07)33 23 2730 Nielsons Radio & TV Service...
  • Page 38 TEAC AUSTRALIA PTY.,LTD. A.B.N.: 11 113 998 048 Name Address Service area Phone TCS (Total Care Services) 62 Leader Street ADELAIDE 5035 (08)83 51 1044 (08)83 51 1043 E.K. Dunstan & Co 255 Main Street CLARE 5453 (08)88 42 2144...
  • Page 39 6312 (08)98 81 2148 (08)98 81 3129 Proton 21A Charles Street NORTHAM 6401 (08)96 22 3168 (08)96 22 3168 TEAC Perth Service Centre 273 Great Eastern Highway PERTH 6104 (08)94 79 6499 (08)94 79 6544 Charles Hunt Electronics 25 Brodie Court...
