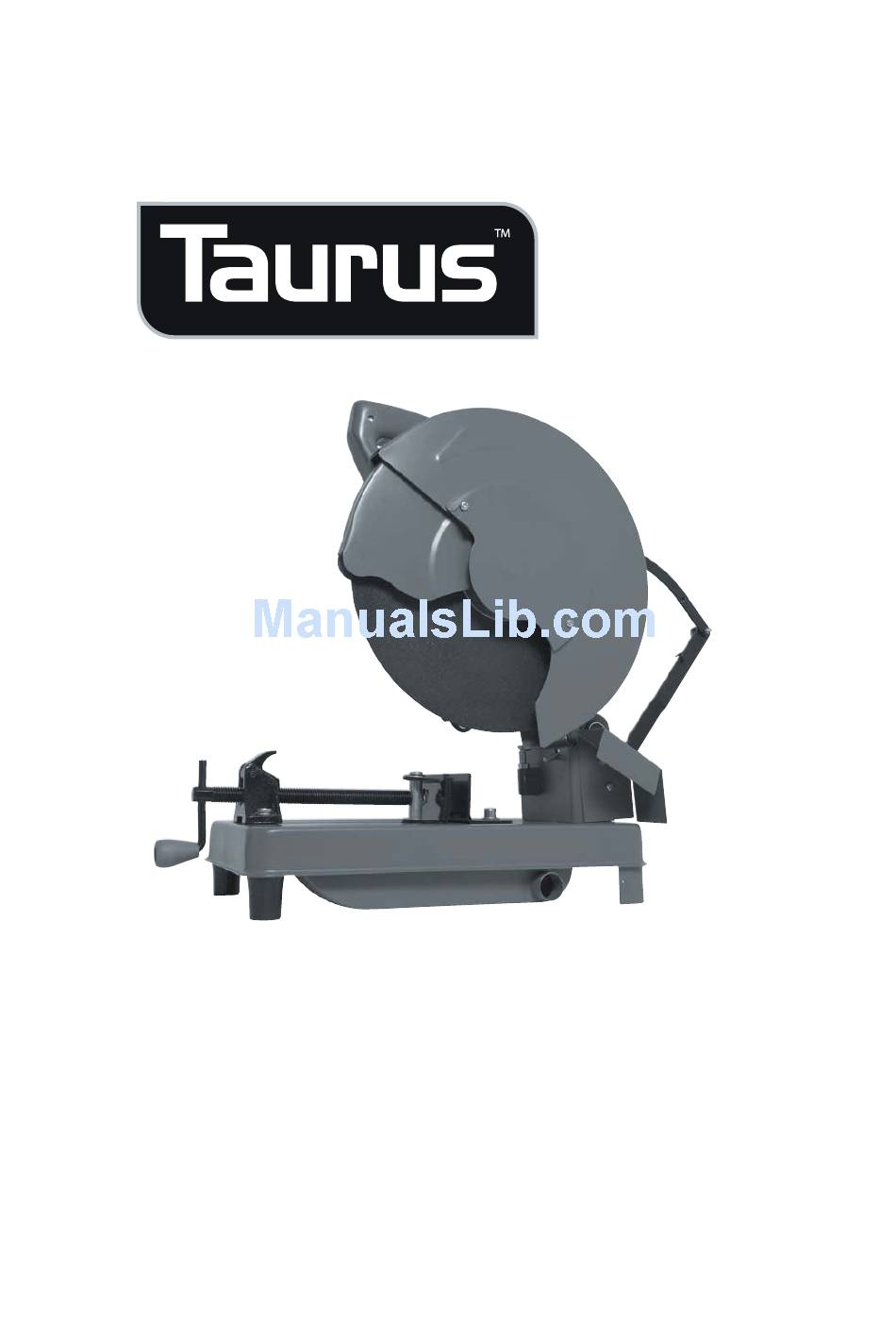

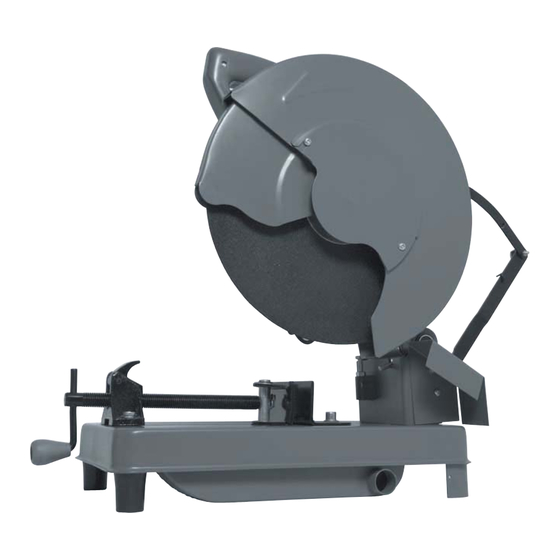

- Page 1 METAL CUT OFF SAW 355mm (14”) Wheel TST16-355 0807...
-
Page 2: General Safety Rules
GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term ’’power tool’’ in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 4 Precautions on using Metal Cut Off Machine The Cut off Machine is for light duty home use for cutting metal. Disconnect power supply plug before replacing wheels or covers. Ensure abrasive wheel rotates freely before switching on the power. Do not operate the machine with the wheel guard off. Never allow material to jam between the wheels and the rests.
-
Page 5: Operation
OPERATION Make sure that the supply voltage matches that specified on the rating plate. Specifications for abrasive wheel: Type Outer Inner Thickness Operating Diameter Diameter Linear Velocity TS16-355 254mm 32mm 80 m/s Use only abrasive wheels in good condition. An abrasive wheel that has been stored for more than one year should be strength tested. - Page 6 Loosen and Tighten the vice Tighten Turn the vice rod clockwise to secure the work-piece with the vice. Loosen Turn the vice rod anti-clockwise to release the work-piece (see Figure 1). • When a large work-piece is to be processed, move the auxiliary stopper forward 3.5 mm (see Figure 2).
-
Page 7: Cleaning And Maintenance
CLEANING AND MAINTENANCE Keep the motor-outlet well ventilated and clean. Compressed air can be used to blow off the dust in the motor. Check the bearing housing and the gearbox periodically and lubricate them occasionally. After the cutting-off machine has been operated for 40 hours, check the carbon brush for replacement. - Page 8 Cutting Capability Cutting Capability Type 90° / 45° 90° 45° 90° 90° TS16-355 115 mm 120 mm 106 mm 102 mm x 139 mm 197 mm Main components of metal cut off saw Switch on grip Side covers Moveable Hood Abrasive Wheel Vice Rod Work table...
- Page 13 ALDI STORES 1 SARGENTS ROAD MINCHINBURY NSW 2770 AUSTRALIA www.aldi.com.au...
- Page 14 14/5/07 11:09:53 AM...
