SECTION 2

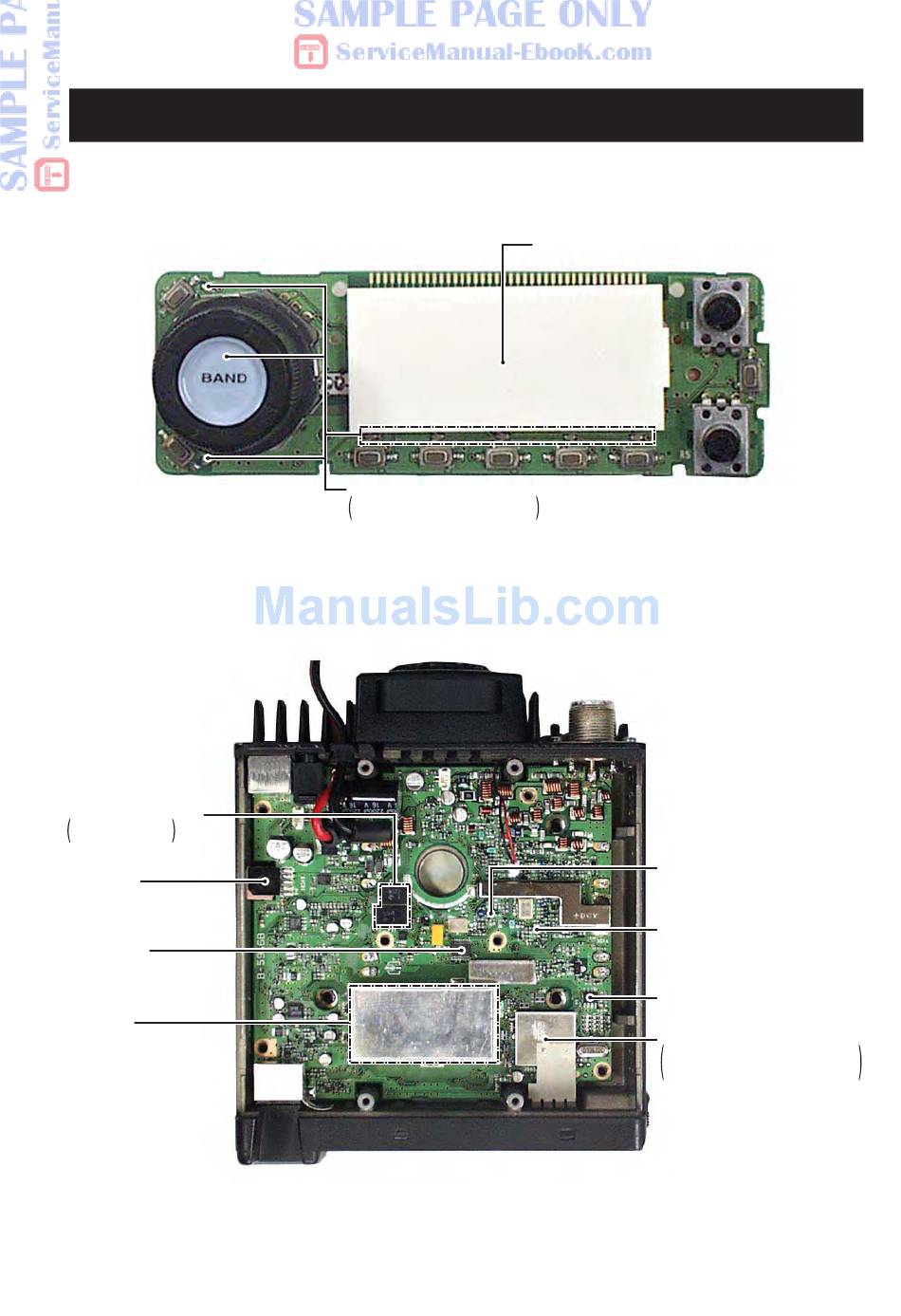

• CONTROL UNIT (TOP VIEW)
• MAIN UNIT (TOP VIEW)
Ceramic bandpass filter
FI1: CFWS450HT
FI2: CFWM450E
AF amplifier
(IC510: LA4425A)
D/A converter
(IC11: M62352GP)
VCO board
INSIDE VIEWS
Key back lights
K
ht
DS13-DS18, DS20: SML512MW
DS21: SML-020MYT
LCD back light
(DS22: CV1074)
2:
074)
2 - 1
1st mixer [VHF band]
(Q32: 3SK299)
1st mixer [400M,800MHz band]
(IC12: µPC2757TB)
EEP ROM
(IC501: HN58X24128FPI)
MAIN CPU
IC505
: HD6432143SA70FA
[USA]only
: HD6432143SA69FA except[USA]
