SECTION 2
Antenna swtching circuit
(D2, D8: MA77)
Power amplifier
(Q1: 2SK3476)
APC
( )
IC3A: NJM12902V
Q37: DTA144EU
FM IF IC
(IC2: TA31136FN)
IF amplifier
(Q14: 2SC4406)
PLL IC
(IC1: LV2105V)
TX/RX switch
(D3, D4: MA77)

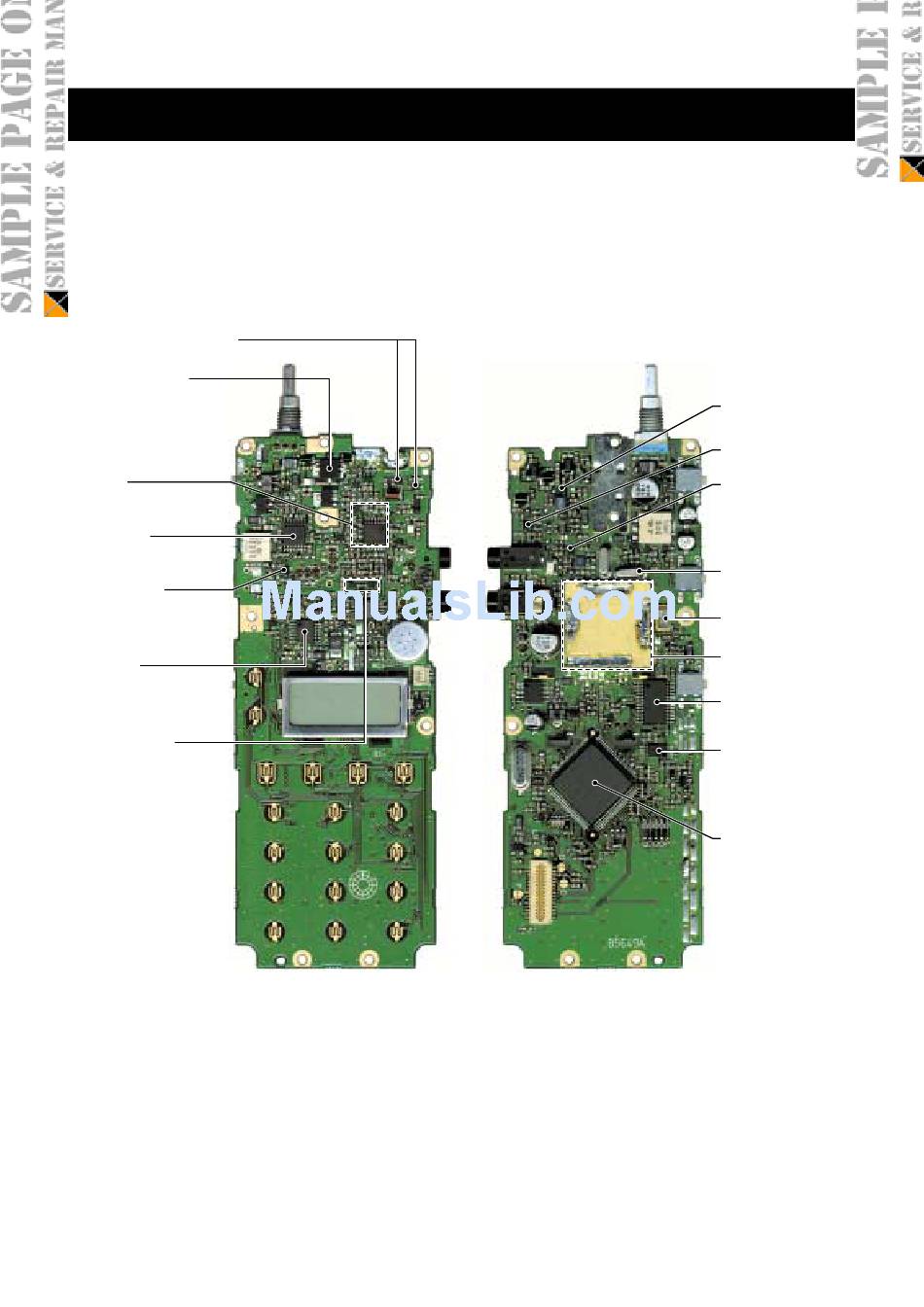

INSIDE VIEWS
TOP VIEW
2 - 1
BOTTOM VIEW
(
Antenna swtching circuit
(D1: MA77)
RF amplifier
(Q12: 3SK274)
1st mixer
(Q13: 3SK274)
Crystal filter
)
FI1, Fl3: FL-298
21.700 MHz
PLL reference oscillator
(X1: CR-659 21.25 MHz)
VCO circuit
D/A converter
(IC10: M62363FP)
EEPROM
(IC7: BR24C16FV)
CPU
(IC8: HD6473877H)
