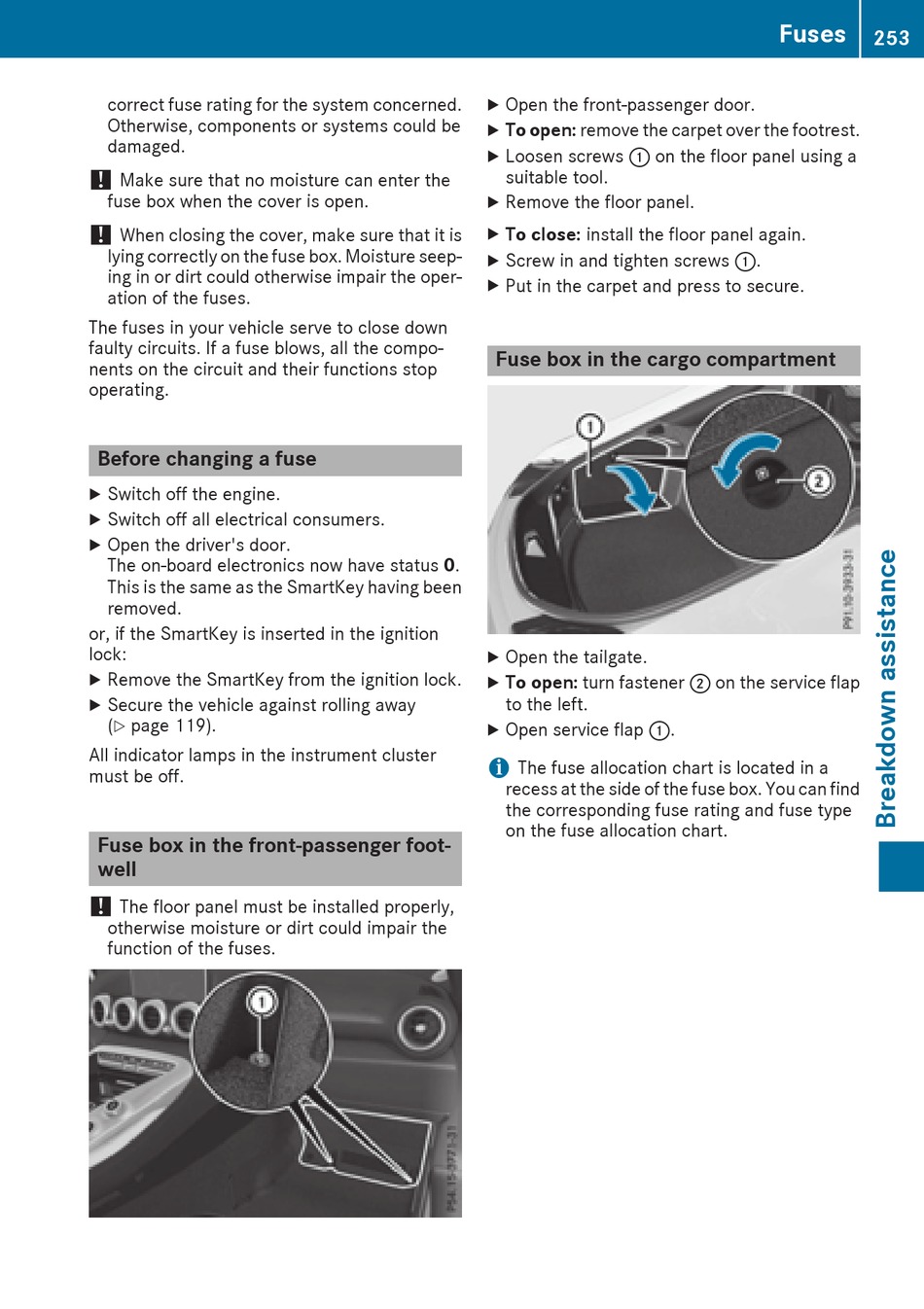

correct fuse rating for the system concerned.
Otherwise, components or systems could be
damaged.
!
Make sure that no moisture can enter the
fuse box when the cover is open.
!
When closing the cover, make sure that it is
lying correctly on the fuse box. Moisture seep-
ing in or dirt could otherwise impair the oper-
ation of the fuses.
The fuses in your vehicle serve to close down
faulty circuits. If a fuse blows, all the compo-
nents on the circuit and their functions stop
operating.
Before changing a fuse
Switch off the engine.
X
Switch off all electrical consumers.
X
Open the driver's door.
X
The on-board electronics now have status 0.
This is the same as the SmartKey having been
removed.
or, if the SmartKey is inserted in the ignition
lock:
Remove the SmartKey from the ignition lock.
X
Secure the vehicle against rolling away
X
( page 119).
Y
All indicator lamps in the instrument cluster
must be off.
Fuse box in the front-passenger foot-
well
!
The floor panel must be installed properly,
otherwise moisture or dirt could impair the
function of the fuses.
Open the front-passenger door.
X
To open: remove the carpet over the footrest.
X
Loosen screws : on the floor panel using a
X
suitable tool.
Remove the floor panel.
X
To close: install the floor panel again.
X
Screw in and tighten screws :.
X
Put in the carpet and press to secure.
X
Fuse box in the cargo compartment
Open the tailgate.
X
To open: turn fastener ; on the service flap
X
to the left.
Open service flap :.
X
i
The fuse allocation chart is located in a
recess at the side of the fuse box. You can find
the corresponding fuse rating and fuse type
on the fuse allocation chart.
Fuses
253
