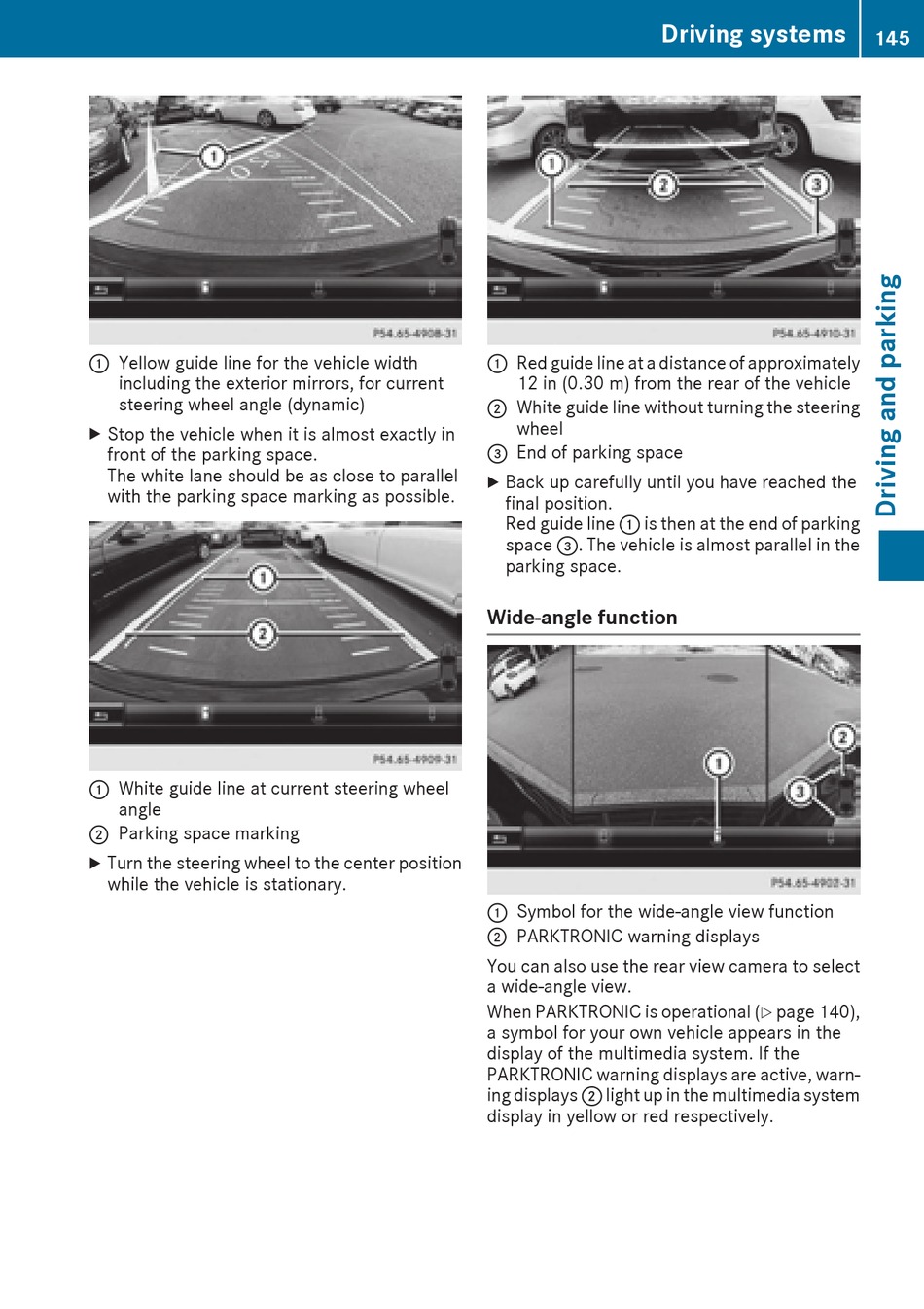

Yellow guide line for the vehicle width
:
including the exterior mirrors, for current
steering wheel angle (dynamic)
Stop the vehicle when it is almost exactly in
X
front of the parking space.
The white lane should be as close to parallel
with the parking space marking as possible.
White guide line at current steering wheel
:
angle
Parking space marking
;
Turn the steering wheel to the center position
X
while the vehicle is stationary.
Driving systems
Red guide line at a distance of approximately
:
12 in (0.30 m) from the rear of the vehicle
; White guide line without turning the steering
wheel
End of parking space
=
Back up carefully until you have reached the
X
final position.
Red guide line : is then at the end of parking
space =. The vehicle is almost parallel in the
parking space.
Wide-angle function
Symbol for the wide-angle view function
:
PARKTRONIC warning displays
;
You can also use the rear view camera to select
a wide-angle view.
When PARKTRONIC is operational (
a symbol for your own vehicle appears in the
display of the multimedia system. If the
PARKTRONIC warning displays are active, warn-
ing displays ; light up in the multimedia system
display in yellow or red respectively.
145
page 140),
