COMMERCIAL CLEANING EQUIPMENT
www.tomcatequip.com
1711 South Street
Racine, WI 53404 (USA)
(800) 450-9824 | (+001) 262-681-6470
© 2016 RPS Corporation
EDGE
Scan With Phone for more Information
Operating Instructions (EN)
& Parts Manual
MODELS:
20'' EDGE Stick ST
20'' EDGE Stick HD
28'' EDGE Stick HD
Read these Instructions before
using the machine.
Read these Safety Messages
before using the machine.
VERSION 16.055
TC-EDGESTICK-OP-EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tomcat edge 20" stick st
Summary of Contents for Tomcat edge 20" stick st

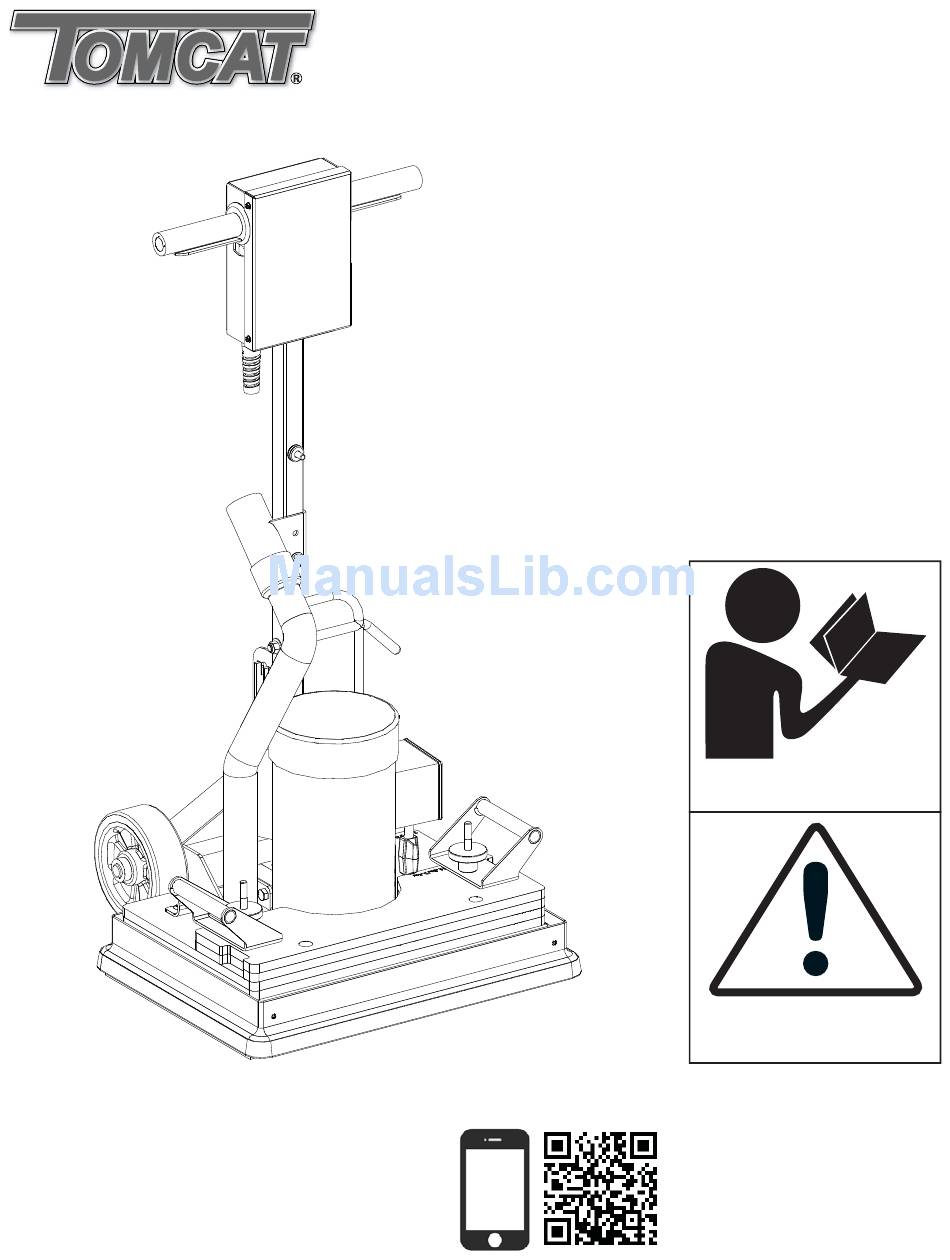

- Page 1 EDGE COMMERCIAL CLEANING EQUIPMENT Operating Instructions (EN) & Parts Manual MODELS: 20'' EDGE Stick ST 20'' EDGE Stick HD 28'' EDGE Stick HD Read these Instructions before using the machine. Read these Safety Messages before using the machine. Scan With Phone for more Information www.tomcatequip.com 1711 South Street Racine, WI 53404 (USA)
- Page 2 INTRODUCTION This manual is furnished with each new machine. This manual will allow the Operator to get the best performance out of your RPS manufactured Scrubber-Drier, Sweeper, Burnisher, or Orbital Scrubber. Read this manual thoroughly before operating or servicing the machine. This machine will provide excellent performance, but the best results will be obtained at the most minimum costs if: •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents Common Wear Parts EDGE Pads and Screens: Safety Messages EDGE Diamonds For Polishing Marble/Terrazzo: EDGE Isolator Replacement Kits: Operation Controls BackPack Accessories: Machine Setup PARTS SECTION Installing EDGE pads: Handlebar Versions Pre-Cleaning Checklist: Operating - Scrubbing: Locking Handlebar Machine Operation Scrubdeck Assembly... -
Page 4: Safety Messages
SAFETY MESSAGES You will see four kinds of safety reminders in this manual: WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury or damage to this machine or nearby objects. - Page 5 WARNING WARNING Do not operate this machine around fuels, solvents, To avoid electrical shock, do not pull on the power cord fl ammable fl oor fi nishes, thinners, wood dust or any to move the machine or unplug the power cord from fl...
-
Page 6: Operation Controls
OPERATION CONTROLS 1. HANDLEBAR: Foam padded handlebars provide ergonomic support 2. SOLUTION CONTROL LEVEL (OPTIONAL): Controls solution fl ow (Down = RELEASE, Up = OFF) 3. MAIN POWER SWITCH (OPTIONAL): Turns the machine ON and OFF 4. POWER CORD: Hospital grade 50 ft cord 5. -
Page 7: Machine Setup
MACHINE SETUP MACHINE OPERATION INSTALLING EDGE PADS: PRE-CLEANING CHECKLIST: Read and understand the Safety Messages section on To install or replace a Pad: Pages 3 and 4 before operating the machine. 6. Check and make sure that there is electrical outlets NOTICE available for use or large gauge extension cords. -
Page 8: Maintenance
MAINTENANCE DAILY MAINTENANCE: 1. Remove the clean Pads / Brushes. Never use soiled Pads / Brushes when cleaning. Replace Pads / Brushes when they become packed with residue. 2. Drain and rinse Tanks thoroughly and fl ush out solution feed to Scrubdeck (If applicable to your model). 3. -
Page 9: Edge Pm Records
EDGE PM RECORDS CUSTOMER INFORMATION CUSTOMER EMAIL ADDRESS PHONE CITY STATE CONTACT MACHINE INFORMATION MODEL #: SERIAL #: WORK ORDER#: HOUR METER: DECK CONDITION EDGE PAD GRIP FACE GOOD WORN NEEDS REPLACEMENT SPACER PAD GOOD WORN NEEDS REPLACEMENT CHECK OPERATION AND CONDITION OF: IN SPEC REPAIR PROBLEM... -
Page 10: Motor Information
MOTOR INFORMATION ® ® IEC34-1 E57948 LR33543 IEC34-5 CAT. NO: 117536.00 DATE: G12B MODEL: M6K28FC3A 1 1/2 / 1.12 HP/KW: 1 1/2 / 1.12 CUST: PN: 2850 3450 RPM: DUTY:CONT INS:F4 100/200-220 TYPE: KF 115/230 VOLT: PH:1 AMB:40 C 15.6/7.8-7.5 ENCL: TEFC 13.2/6.6 FLA:... -
Page 11: Common Wear Parts
COMMON WEAR PARTS EDGE PADS AND SCREENS: DESCRIPTION 28''×14'' 20''×14'' 13''×19'' SCRUBDECK SCRUBDECK White Pad EDGE-4054 EDGE-4005 Red Pad EDGE-4053 EDGE-4004 Blue Pad EDGE-4052 EDGE-4003 Green Pad EDGE-4051 EDGE-4002 Black Pad EDGE-4050 EDGE-4001 White Driver Pad EDGE-4058 EDGE-4025 EDGE-4019 60 Grit Sand Screen EDGE-4059 EDGE-4026 EDGE-4020... -
Page 12: Edge Isolator Replacement Kits
EDGE ISOLATOR REPLACEMENT KITS: DESCRIPTION PART NUMBER Kit for 20" AC Stick Machines EDGE-7217 Kit for 28" AC Stick Machines EDGE-7221 Kit for 28" DC Stick Machines EDGE-7218 Kit for 32" DC Stick Machines EDGE-7219 Kit for 20" DC Machines EDGE-7209 Kit for 24"... -
Page 13: Parts Section
PARTS SECTION - 13 - EDGESTICK-OP-EN... -
Page 14: Handlebar Versions
HANDLEBAR VERSIONS - 14 - EDGESTICK-OP-EN... -
Page 15: Locking Handlebar
LOCKING HANDLEBAR - 15 - EDGESTICK-OP-EN... -
Page 16: Scrubdeck Assembly
SCRUBDECK ASSEMBLY - 16 - EDGESTICK-OP-EN... -
Page 17: Scrubdeck Weights
SCRUBDECK WEIGHTS - 17 - EDGESTICK-OP-EN... -
Page 18: Water Tank And Handlebar
WATER TANK AND HANDLEBAR - 18 - EDGESTICK-OP-EN... -
Page 19: Isolated Handlebars
ISOLATED HANDLEBARS - 19 - EDGESTICK-OP-EN... -
Page 20: Onboard Vacuum
ONBOARD VACUUM - 20 - EDGESTICK-OP-EN... - Page 21 BLANK THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 22 1711 South Street Racine, WI 53404 www.rpscorporation.com www.factorycat.com www.tomcatequip.com Tel. US: 800-634-4060 Tel. Int: (001) 262-681-3583 © RPS Corporation 2016...
