CHAPTER 9: PART REPLACEMENT GUIDE

9.1 CONSOLE REPLACEMENT

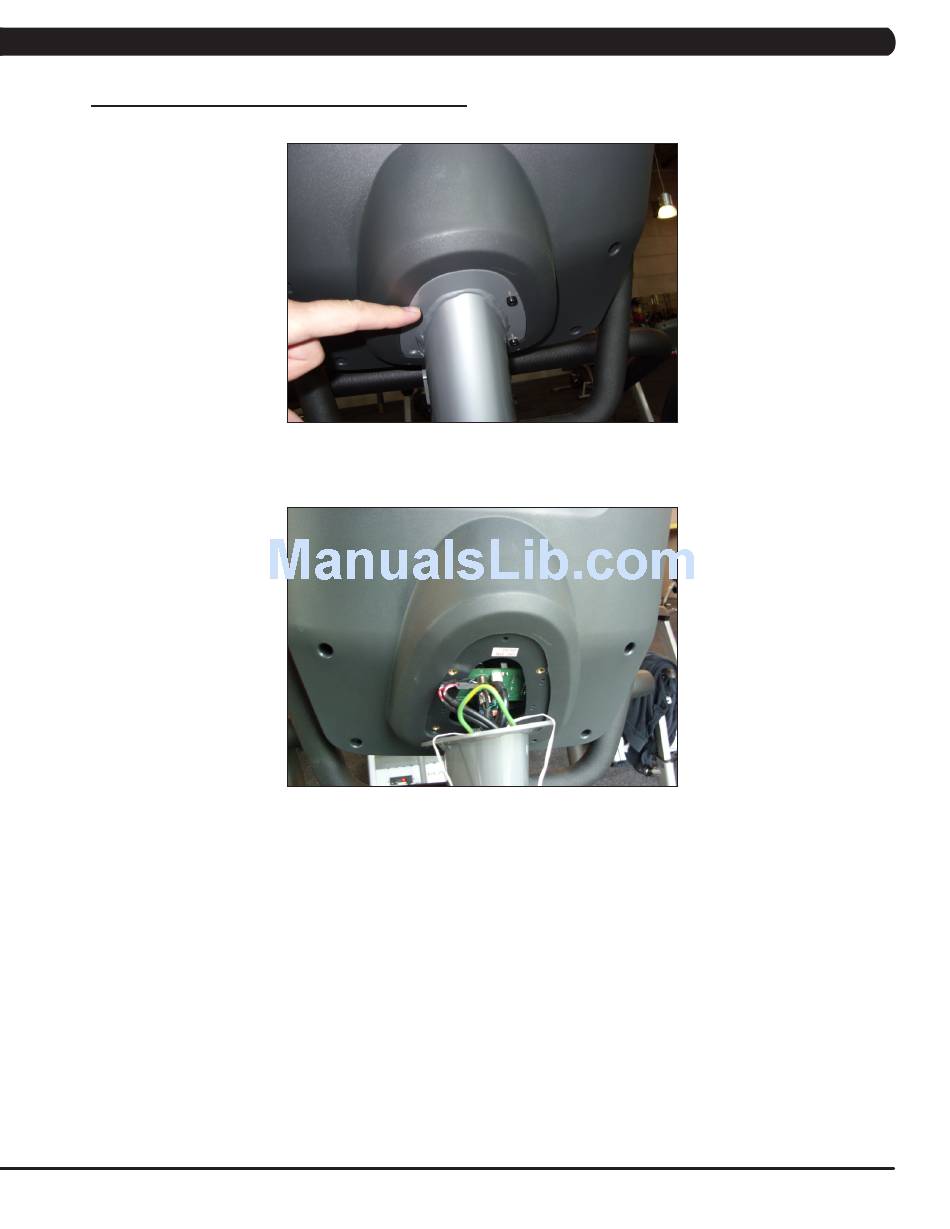

1) Remove the 4 screws holding the console to the frame (Figure A).
FIGURE A
2) Disconnect the console cable and HR connections from the defective console and remove the console (Figure B).
FIGURE B
3) Reinstall the wire connections to the new console.
4) Carefully push the wires into the console mast until they are clear of the console / mast connection and attach the console to the mast using
the 4 screws removed in Step 1.
5) Test the stepper for function as outlined in Section 9.22.
