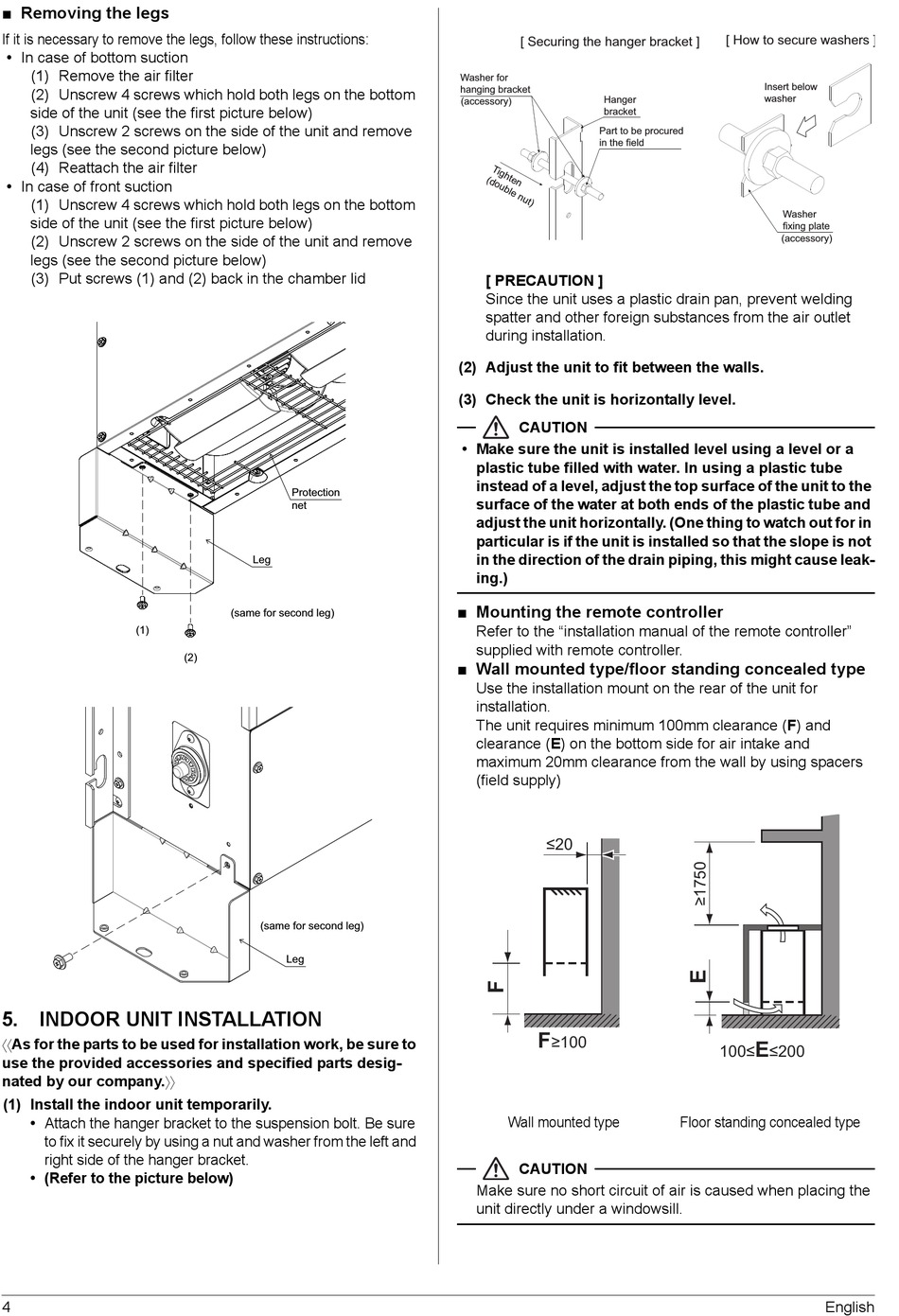

■ Removing the legs
If it is necessary to remove the legs, follow these instructions:
• In case of bottom suction
(1) Remove the air filter
(2) Unscrew 4 screws which hold both legs on the bottom
side of the unit (see the first picture below)
(3) Unscrew 2 screws on the side of the unit and remove
legs (see the second picture below)
(4) Reattach the air filter
• In case of front suction
(1) Unscrew 4 screws which hold both legs on the bottom
side of the unit (see the first picture below)
(2) Unscrew 2 screws on the side of the unit and remove
legs (see the second picture below)
(3) Put screws (1) and (2) back in the chamber lid
(1)
5.

INDOOR UNIT INSTALLATION

As for the parts to be used for installation work, be sure to
use the provided accessories and specified parts desig-
nated by our company.
(1) Install the indoor unit temporarily.
• Attach the hanger bracket to the suspension bolt. Be sure
to fix it securely by using a nut and washer from the left and
right side of the hanger bracket.
• (Refer to the picture below)
4
Protection
net
Leg
(same for second leg)
(2)
(same for second leg)
Leg
[ Securing the hanger bracket ]
Washer for
hanging bracket
Hanger
(accessory)
bracket
Part to be procured
in the field
[ PRECAUTION ]
Since the unit uses a plastic drain pan, prevent welding
spatter and other foreign substances from the air outlet
during installation.
(2) Adjust the unit to fit between the walls.
(3) Check the unit is horizontally level.
CAUTION
• Make sure the unit is installed level using a level or a
plastic tube filled with water. In using a plastic tube
instead of a level, adjust the top surface of the unit to the
surface of the water at both ends of the plastic tube and
adjust the unit horizontally. (One thing to watch out for in
particular is if the unit is installed so that the slope is not
in the direction of the drain piping, this might cause leak-
ing.)
■ Mounting the remote controller
Refer to the "installation manual of the remote controller"
supplied with remote controller.
■ Wall mounted type/floor standing concealed type
Use the installation mount on the rear of the unit for
installation.
The unit requires minimum 100mm clearance (F) and
clearance (E) on the bottom side for air intake and
maximum 20mm clearance from the wall by using spacers
(field supply)
F
Wall mounted type
CAUTION
Make sure no short circuit of air is caused when placing the
unit directly under a windowsill.
[ How to secure washers ]
Insert below
washer
Washer
fixing plate
(accessory)
C
E
100
Floor standing concealed type
