InstallatIon notes
ness sCR PlUs
Flexible Receiver
Product Part No. 106-179 (304MHz)
• Receives ARM / Disarm / PANIC / AUX /
Low Batt channels from Ness Radio Keys or
Radio PIRs / Radio Reeds.
• Supports up to four transmitters.
• Simple "Learn Mode" programming for radio
devices.
• 1 x Relay output with selectable Toggle/
Pulse, selectable
• 4 x Open Collector outputs for Panic/
Tamper, On/Alarm, Aux, Low Battery
Installation and setup notes. Rev 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ness SCR PLUS
Summary of Contents for Ness SCR PLUS

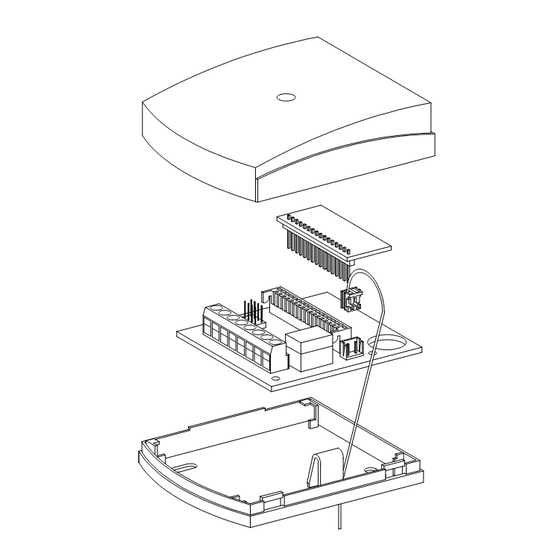

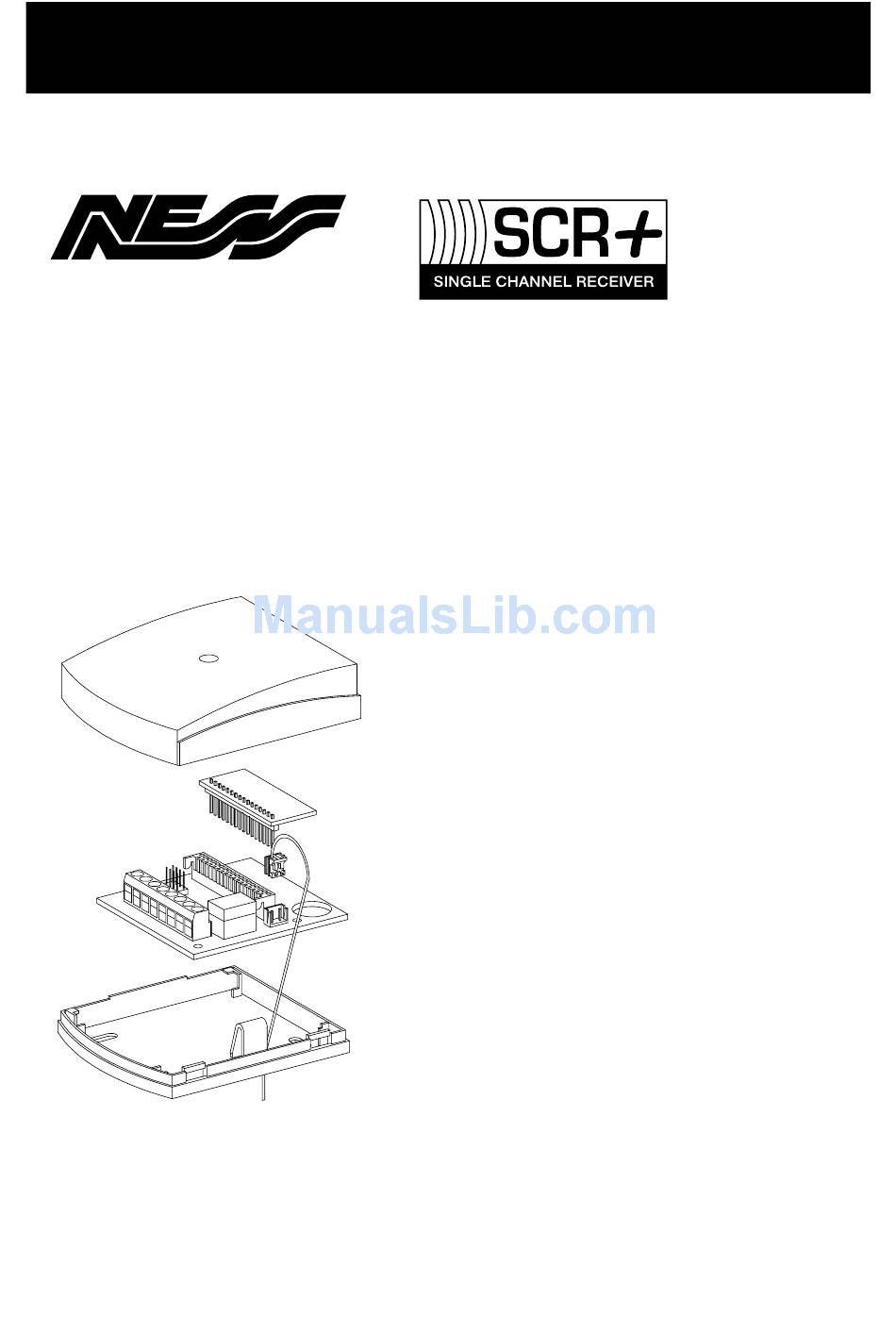

- Page 1 InstallatIon notes ness sCR PlUs Flexible Receiver Product Part No. 106-179 (304MHz) • Receives ARM / Disarm / PANIC / AUX / Low Batt channels from Ness Radio Keys or Radio PIRs / Radio Reeds. • Supports up to four transmitters. • Simple “Learn Mode” programming for radio devices. • 1 x Relay output with selectable Toggle/ Pulse, selectable • 4 x Open Collector outputs for Panic/ Tamper, On/Alarm, Aux, Low Battery Installation and setup notes. Rev 1...
-
Page 2: Relay Output
IntRodUCtIon Relay oUtPUt The Ness SCR+ Flexible Standalone Receiver Relay - The relay output can be programmed is a unique high performance radio receiver to provide an On/Off/Alarm output or it can designed to operate with any Ness proprietary duplicate one of the open-collector outputs. radio transmitting device including Ness The ReLAy OUTPUT CAN Be PROgRAMMeD TO Radio Keys, Radio Key pendants, Radio Reed PROvIDe ONe OF The FOLLOWINg TyPeS OF switches, Radio Smoke Detectors and Radio OUTPUT: PIRs. • A latching On/Off, Alarm/Restore, or Low The SCR+ is ideal for connecting to alarm Battery output. panels which do not provide a wireless facility • A toggling Panic or Aux Output. and can be used for connecting wireless devices for zone alarms, Panic buttons or Radio • Pulsed On/Alarm, Panic/Tamper, Aux, or Keys for Arming and Disarming the Panel. Low Battery output The Inhibit input gives the receiver the unique ability to identify the Armed/Disarmed status of an alarm panel. When used with a Ness radio +12V key it allows the receiver to always correctly Arm or Disarm the Panel. The SCR+ is also ideally suited for applications Input that require a remotely switched relay output for low voltage switching applications e.g. garage BAtt door opening. -
Page 3: Open Collector Outputs
The Inhibit Input can be used with an output on/alaRm - Open collector output pulses for from a control panel to synchronise the relay two seconds when a valid ON signal or ALARM and the On/Off buttons of a radio key to the signal is received. state of the control panel. PanIC/tamPeR - Open collector pulses for The Inhibit Input is only active when the relay two seconds when a Panic or Tamper alarm is is set for Pulse mode for On/Off signals, see received. Operation Table 2, page 6. aUX - Open collector pulses for two seconds The input should be pulled below 0.5v to be when an AUX signal is received from a four Low and above 1v to be high. The input is high button radio key. when left open. Note 1: Ness radio keys which have an AUX button include: 100-067 RK4 Radio Key +12V 106-167 RK4B Radio Key 106-299 RK4P Prox Radio Keys. Note 2: The AUX button on the grey 106-178 Input INhIBIT INPUT RK3+1 radio key sends an ON signal not an BAtt AUX signal. low Batt - Open collector output pulses pAnIC for two seconds when a Low Battery signal is tAMp received from either a Radio Key or an Alarm ALARM Device. Connect a 12v beeper or optional relay for connection to an alarm zone if required. -
Page 4: Led Operation
led oPeRatIon In Normal Mode SLOW FLASh Normal operation. ON FOR 2 SeC valid radio signal received from a programmed device. In Program Mode FAST FLASh Program Mode. The selected code slot is programmed with a radio device. FAST FLASh The selected code slot is empty. SINgLe FLASh A learn message has been received. When three learn messages or a valid learn message has been received the LeD will stay on. TRIPLe FLASh The device being programmed already exists in another code slot. taBle – dIPswItChes SWItCh nORMAL OpERAtIng MOdE pROgRAMMIng MOdE OFF in nORMAL MOdE On in nORMAL MOdE On in pROgRAM MOdE On/OFF/ALARM/REStORE On/ALARM signal program Code 1... -
Page 5: Programming Steps
ON. The existing radio device must be The LED will be ON indicating the slot is erased before programming a new one. See How To Erase a Code. programmed. Press the ON button on any Ness radio key. The LED will flash fast indicating the code slot is blank. -
Page 6: Relay Output Operation
Relay oUtPUt oPeRatIon To program the ReLAy OUTPUT to operate by ON/ALARM/OFF/ReSTORe signals. OPeRATION TABLe 1 OPeRATION TABLe 2 SIgNAL TyPe ON/OFF SIgNAL TyPe ON/ALARM ALARM/ReSTORe ReLAy MODe PULSe LATChINg ReLAy MODe ReLAy ACTION ReLAy ACTION On/Alarm signal: Relay Pulses 2 sec (When Inhibit input is On/Alarm signal: Latch On open or pulled high) Off/Restore signal: Latch Off Off/Restore signal: *Depends on the state SWITCh SeTTINgS All off of the Inhibit Input, see below SWITCh SeTTINgS Switch 2 on Operating Mode Program Mode ON/OFF/ALRM Latches relay ON/ALARM Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay AUX Toggles relay AUX Pulses relay Operating Mode Program Mode... - Page 7 SWITCh SeTTINgS 2, 4, 5 must be on 2, 4, 5 off Operating Mode Program Mode Operating Mode Program Mode ON/OFF/ALRM Latches relay ON/ALARM Pulses relay ON/OFF/ALRM Latches relay ON/ALARM Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay AUX Toggles relay AUX Pulses relay AUX Toggles relay AUX Pulses relay LOW BATT Latches relay LOW BATT Pulses relay LOW BATT Latches relay LOW BATT Pulses relay OPeRATION OPeRATION PANIC Button > Relay PANIC Button = Relay toggles On/Off Pulses 2sec TAMPeR > Relay toggles TAMPeR > Relay Pulses 2sec On/Off This applies to Ness This applies to Ness transmitters with a tamper transmitters with a tamper switch, such as LUX Radio switch, such as LUX Radio PIR, RR1 Radio Reed PIR, RR1 Radio Reed...
- Page 8 SWITCh SeTTINgS SWITCh SeTTINgS 2, 3, 5 on 2, 3, 5 off Operating Mode Program Mode Operating Mode Program Mode ON/OFF/ALRM Latches relay ON/ALARM Pulses relay ON/OFF/ALRM Latches relay ON/ALARM Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay AUX Toggles relay AUX Pulses relay AUX Toggles relay AUX Pulses relay LOW BATT Latches relay LOW BATT Pulses relay LOW BATT Latches relay LOW BATT Pulses relay OPeRATION OPeRATION AUX Button > Relay AUX Button > Relay toggles On/Off Pulses 2sec Ness radio keys with an AUX button include: 100-067 RK4 Radio Key 106-167 RK4B Radio Key 106-299 RK4P Prox Radio Keys. Note: This does not include the 106-178 RK3+1 radio key (grey body). The AUX button on this model sends an ON signal not an AUX signal.
- Page 9 Relay oUtPUt oPeRatIon To program the ReLAy OUTPUT to operate by a LOW BATTeRy signal from transmitters. OPeRATION TABLe 7 OPeRATION TABLe 8 LOW BATT LOW BATT SIgNAL TyPe SIgNAL TyPe ReLAy MODe LATChINg ReLAy MODe PULSe ReLAy ACTION ReLAy ACTION LOW BATT signal: Latch On LOW BATT signal: Pulse SWITCh SeTTINgS Switch 5 off, Switches SWITCh SeTTINgS Switch 5 on, Switches 2, 3, 4 on 2, 3, 4 off Operating Mode Program Mode Operating Mode Program Mode ON/OFF/ALRM Latches relay ON/ALARM Pulses relay ON/OFF/ALRM Latches relay ON/ALARM Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay AUX Toggles relay AUX Pulses relay AUX Toggles relay AUX Pulses relay LOW BATT Latches relay...
-
Page 10: Connection Examples
ConneCtIon eXamPles NeSS RADIO PIRS ON ANy CONTROL PANeL 12vDC supply +12V Ness SCR+ Receiver Input Operating Mode Program Mode BAtt ON/OFF Latches relay ON/OFF Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay pAnIC AUX Toggles relay AUX Pulses relay tAMp LOW BATT Latches relay LOW BATT Pulses relay To a zone input on ALARM the control panel Note: For fully integrated radio operation on Ness control panels use the Ness 100-200 Radio Interface. NeSS RADIO ReeD SWITCheS ON ANy CONTROL PANeL 12vDC supply +12V Ness SCR+ Receiver Input Operating Mode Program Mode BAtt ON/OFF/ALRM Latches relay ON/ALARM Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay pAnIC AUX Toggles relay AUX Pulses relay... - Page 11 ConneCtIon eXamPles NeSS RK4 RADIO Key AUX BUTTON OPeRATINg A gARAge DOOR 12vDC supply +12V Ness SCR+ Receiver Input Operating Mode Program Mode BAtt ON/OFF/ALRM Latches relay ON/ALARM Pulses relay PANIC/TAMPR Toggles relay PANIC/TAMPR Pulses relay AUX Toggles relay AUX Pulses relay pAnIC tAMp LOW BATT Latches relay LOW BATT Pulses relay AUX button ALARM To garage door controller input NeSS RADIO KeyS ARMINg/DISARMINg ANy CONTROL PANeL USINg INhIBIT INPUT Requires an output from the control panel which is high when disarmed and low when armed. 12vDC supply +12V Ness SCR+ Receiver Input From an output on Operating Mode Program Mode the control panel BAtt ON/OFF/ALRM Latches relay ON/ALARM Pulses relay which is high when PANIC/TAMPR Toggles relay...
-
Page 12: Specifications
OPeRATINg vOLTAge 10–15v DC QUIeSCeNT CURReNT DRAW 25mA (with relay activated) ReLAy OUTPUT C.O. contacts rated 1A @ 28v max. OPeN COLLeCTOR OUTPUTS Open Collector 100mA @ 12v (low on alarm) LOW BATT, AUX, PANIC/TAMP , ON/OFF RADIO FReQUeNCy 304Mhz / 868Mhz depending on region RADIO TyPe Superhetrodyne BANDWIDTh (3DB) 300Khz SeNSITIvITy > -100db COMPATIBILITy All Ness 304Mhz & 868Mhz transmitters MAX. RADIO DevICeS DIMeNSIONS 73(h) x 73(w) x 27(d) mm WeIghT Ness Corporation manufacturing processes are accredited to ISO9001 quality standards and all possible care and diligence has been applied during manufacture to ensure the reliable operation of this product. however there are various external factors that may impede or restrict the operation of this product in accordance with the product’s specification. These factors include, but are not limited to: 1. erratic or reduced radio range. Ness radio products are sophisticated low power devices, however the presence of in-band radio signals, high power transmissions or interference caused by electrical appliances such as wireless routers, cordless phones, computers, Tvs and other electronic devices may reduce the range performance. While such occurrences are unusual, they are possible. In this case it may be necessary to either increase the physical separation between the Ness receiver and other devices or if possible change the radio frequency or channel of the other devices. 2. Unauthorised tampering, physical damage, electrical interruptions such as mains failure, electrical spikes or lightning. Ness SCR+ FLeXIBLe SINgLe ChANNeL ReCeIveR Installation Notes Rev 1. Jan 2016 Document part number 890-441 www.nesscorporation.com...
