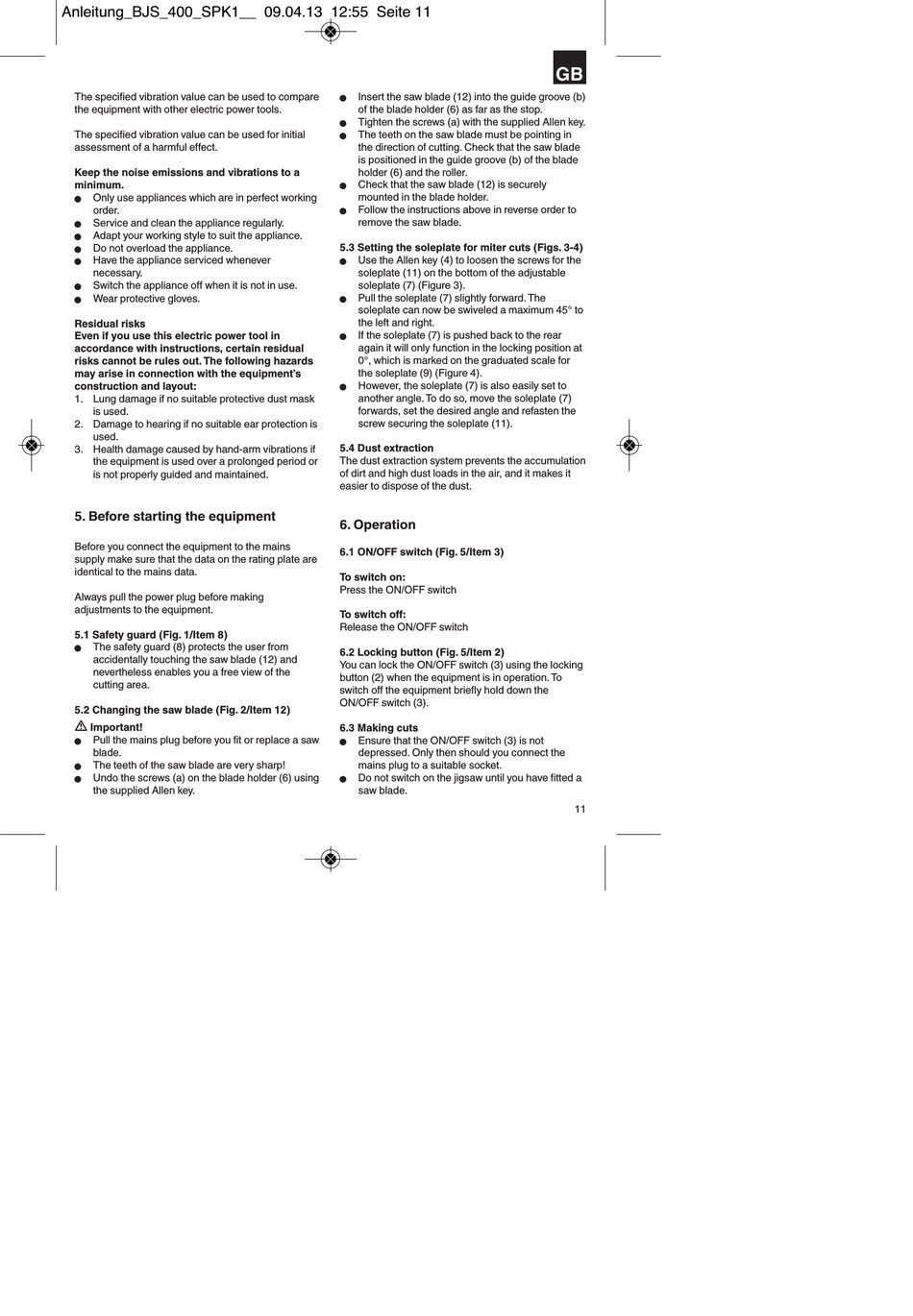

The specified vibration value can be used to compare
the equipment with other electric power tools.
The specified vibration value can be used for initial
assessment of a harmful effect.
Keep the noise emissions and vibrations to a
minimum.
Only use appliances which are in perfect working
n
order.
Service and clean the appliance regularly.
n
Adapt your working style to suit the appliance.
n
Do not overload the appliance.
n
Have the appliance serviced whenever
n
necessary.
Switch the appliance off when it is not in use.
n
Wear protective gloves.
n
Residual risks
Even if you use this electric power tool in
accordance with instructions, certain residual
risks cannot be rules out. The following hazards
may arise in connection with the equipment's
construction and layout:
1. Lung damage if no suitable protective dust mask
is used.
2. Damage to hearing if no suitable ear protection is
used.
3. Health damage caused by hand-arm vibrations if
the equipment is used over a prolonged period or
is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains
supply make sure that the data on the rating plate are
identical to the mains data.
Always pull the power plug before making
adjustments to the equipment.
5.1 Safety guard (Fig. 1/Item 8)
The safety guard (8) protects the user from
n
accidentally touching the saw blade (12) and
nevertheless enables you a free view of the
cutting area.
5.2 Changing the saw blade (Fig. 2/Item 12)
Important!
Pull the mains plug before you fit or replace a saw
n
blade.
The teeth of the saw blade are very sharp!
n
Undo the screws (a) on the blade holder (6) using
n
the supplied Allen key.
Insert the saw blade (12) into the guide groove (b)
n
of the blade holder (6) as far as the stop.
Tighten the screws (a) with the supplied Allen key.
n
The teeth on the saw blade must be pointing in
n
the direction of cutting. Check that the saw blade
is positioned in the guide groove (b) of the blade
holder (6) and the roller.
Check that the saw blade (12) is securely
n
mounted in the blade holder.
Follow the instructions above in reverse order to
n
remove the saw blade.
5.3 Setting the soleplate for miter cuts (Figs. 3-4)
Use the Allen key (4) to loosen the screws for the
n
soleplate (11) on the bottom of the adjustable
soleplate (7) (Figure 3).
Pull the soleplate (7) slightly forward. The
n
soleplate can now be swiveled a maximum 45° to
the left and right.
If the soleplate (7) is pushed back to the rear
n
again it will only function in the locking position at
0°, which is marked on the graduated scale for
the soleplate (9) (Figure 4).
However, the soleplate (7) is also easily set to
n
another angle. To do so, move the soleplate (7)
forwards, set the desired angle and refasten the
screw securing the soleplate (11).
5.4 Dust extraction
The dust extraction system prevents the accumulation
of dirt and high dust loads in the air, and it makes it
easier to dispose of the dust.

6. Operation

6.1 ON/OFF switch (Fig. 5/Item 3)
To switch on:
Press the ON/OFF switch
To switch off:
Release the ON/OFF switch
6.2 Locking button (Fig. 5/Item 2)
You can lock the ON/OFF switch (3) using the locking
button (2) when the equipment is in operation. To
switch off the equipment briefly hold down the
ON/OFF switch (3).
6.3 Making cuts
Ensure that the ON/OFF switch (3) is not
n
depressed. Only then should you connect the
mains plug to a suitable socket.
Do not switch on the jigsaw until you have fitted a
n
saw blade.
