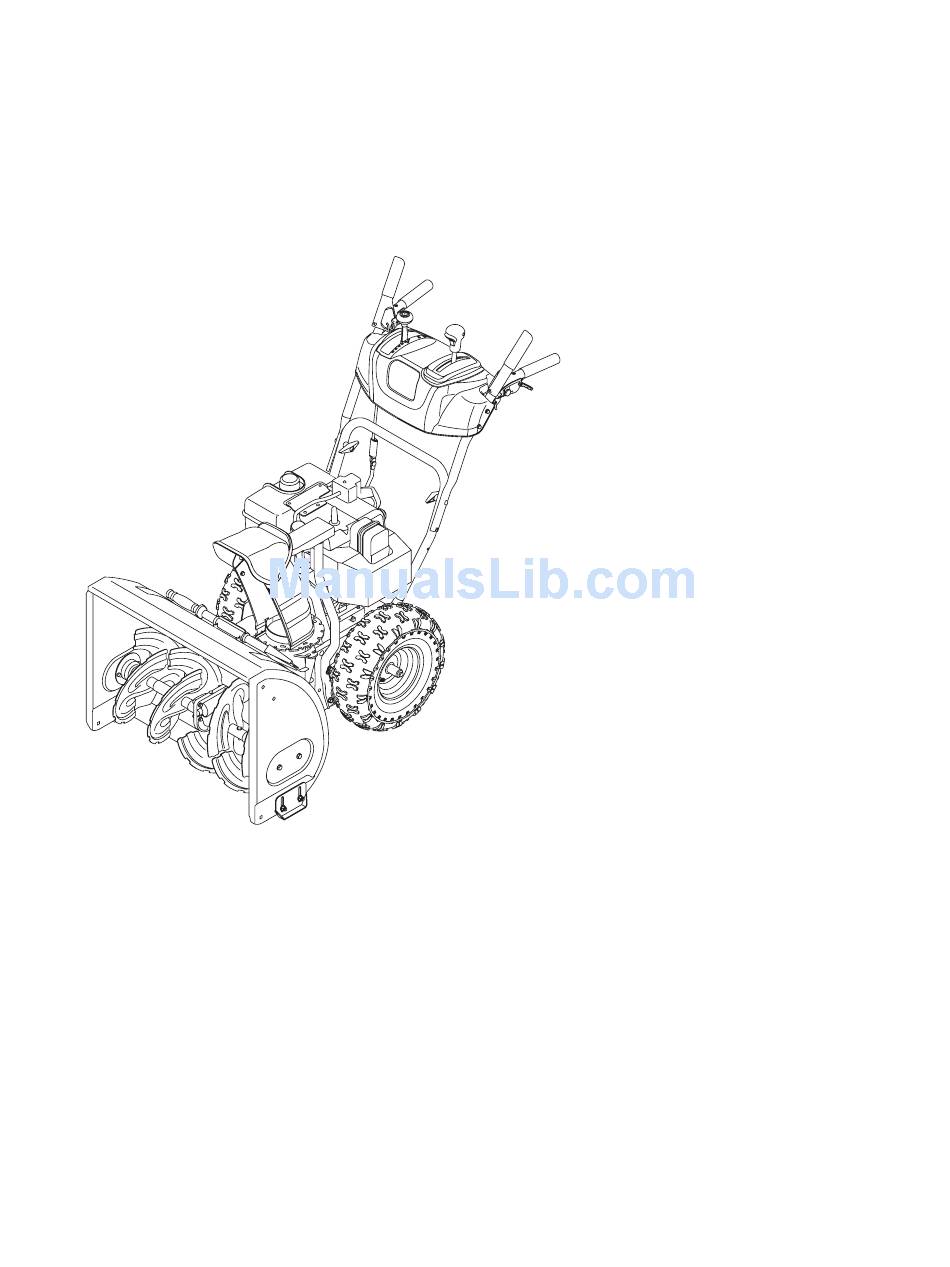

Operator's Manual
Two-Stage
Snow Thrower
Model 5ML
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed in U.S.A.
. 769-01309.fm
FORM NO
(6/2004)
Advertisement
Table of Contents
Related Manuals for MTD 5ML
Summary of Contents for MTD 5ML
-
Page 1: Snow Thrower
Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed in U.S.A. -
Page 2: Customer Support
A sample model plate is also given below. This information will be necessary to use the manufacturer’s web site and/or help from the Customer Support Department or an authorized service dealer. Copy the model number here: Copy the serial number here: MTD LLC P. O. BOX 361131 CLEVELAND,OH 44136 330-220-4683 www.mtdproducts.com... -
Page 3: Section 1: Important Safe Operations Practices
SECTION 1: IMPORTANT SAFE OPERATIONS PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. -
Page 4: Operation
Operation unclogging, shut off engine and remain behind handles until all moving parts have stopped 1. Do not put hands or feet near rotating parts, in the completely. auger/impeller housing or chute assembly. Contact 19. Use only attachments and accessories approved with rotating parts can amputate hands and feet. -
Page 5: Section 1: Setting Up Your Snow Thrower
SECTION 1: SETTING UP YOUR SNOW THROWER This unit is shipped with the engine full of NOTE: If the connector is not properly assembled, the IMPORTANT: oil. After assembly, see page 9 for fuel and oil details. shift rod will pivot and changing speed or direction of the snow thrower will not be possible. -
Page 6: Final Adjustments
7. Insert the round end of the chute control box on the 4. While standing in the operator’s position (behind short tube of the chute assembly as shown in the snow thrower) engage the auger. Figure 3C. 5. Allow the auger to remain engaged for 8. - Page 7 8. If the wheels can still be turned when you engage the drive control, loosen the jam nut on the drive cable and thread the cable in one turn. Recheck the adjustment and repeat if needed. 9. Tighten the jam nut to secure the cable when correct adjustment is reached.
-
Page 8: Section 2: Operating Your Snow Thrower
SECTION 2: OPERATING YOUR SNOW THROWER Know The Controls Read this owner’s manual and safety rules before operating your snow thrower. Compare Figure 7 with your snow thrower to familiarize yourself with the location of various controls and adjustments. Maintain safety while learning about the controls and operating the unit. -
Page 9: To Start Engine
Four- Way Chute Control™ This four-way control lever is meant to control the WARNING: Gasoline is flammable; use direction and distance of snow discharge from the chute. Press the button on the knob and turn it left or caution when handling or storing it. right to rotate the chute to the direction that snow will be WARNING: Do not fill fuel tank while the... -
Page 10: Recoil Starter
2. Push key into the ignition slot and snap in place. Do WARNING: The electric starter must be not turn key. properly grounded at all times to avoid the 3. Rotate choke control to FULL choke position. possibility of electric shock which may be 4. -
Page 11: Operating Tips
NOTE: The unusual sound from pulling the starter rope 6. When clearing the first pass through the snow, in case of the recoil starter, or from spinning the starter control speed of snow thrower according to the in case of the electric starter, will not harm the engine. depth and condition of snow. -
Page 12: Drift Cutters (On Models So Equipped)
Drift Cutters If your unit is not equipped with drift cutters, contact (on models so equipped) Customer Support as instructed on page 2 for Drift cutters should be used when operating the snow information regarding price and availability. thrower in heavy drift conditions. Snow Thrower ModelDrift Cutter Kit: On models so equipped, drift cutters are assembled to All models-OEM-390-679... -
Page 13: Check Chute Cables
• Drive/Auger Control Lock: The cam on the ends 5. Re-attach frame cover to the snow thrower and put of the control rods which interlock the drive and the equipment back to operating position. auger controls must be lubricated at least once a Check Chute Cables season or every 25 hours of operation using a multi-purpose automotive grease. -
Page 14: Section 4: Service & Adjustment
SECTION 4: SERVICE & ADJUSTMENT Check these periodically and replace as necessary. WARNING: Always stop engine, disconnect spark plug wire and move it away from spark plug before performing adjustments or repairs. Always wear safety glasses during operation or while performing any adjustments or repairs. Servicing Augers The augers are secured to the spiral shaft with two Carriage Bolt... -
Page 15: Drive Belt
Belt Cover Self-Tapping Self-Tapping Screw Screw Auger Pulley Shoulder Screw Spring Mounting Bracket Drive Belt Engine Pulley Figure 15 4. Wrap auger belt around the auger pulley. See Figure 15. 5. Re-insert shoulder screw into the mounting bracket and tighten to secure. Auger Belt 6. -
Page 16: Friction Wheel Rubber
4. Back out the stop bolt to create sufficient gap between the friction wheel disc and the drive pulley. Pull the drive belt from around the drive pulley and clear it off the friction wheel disc. See Figure 17. Drive Cover Drive Friction Bolt... -
Page 17: Drive Control
10. Insert the shift arm assembly into the friction wheel 2. With the drive control released, there must be 1/8” assembly and hold assembly in position. See clearance between the friction wheel and the drive Figure 21. plate in all positions of the shift lever. 11. -
Page 18: Section 5: Off-Season Storage
7. Check for correct adjustment before operating the snow thrower. Chute Skid Shoe Control Refer to page 7 for details. Chute Control Once a season or every 25 hours of operation, whichever is earlier, check whether the chute control cables have slackened. If the chute does not rotate fully or its pitch cannot be moved up or down, the chute control cables will have to be adjusted. -
Page 19: Section 6: Troubleshooting
SECTION 6: TROUBLESHOOTING Problem Cause Remedy Engine fails to start. 1. Fuel tank empty, or stale fuel. 1. Fill tank with fresh gasoline. 2. Blocked fuel line. 2. Clean the fuel line. 3. Choke not in ON position. 3. Move switch to ON position. 4. -
Page 20: Section 7: Parts List For Model 5Ml
SECTION 7: PARTS LIST FOR MODEL 5ML... - Page 21 Model 5ML Ref. No. Part No. Description Ref. No. Part No. Description 731-04427A Upper Chute 784-5580 Slide Shoe 712-04063 Flange Lock Nut, 5/16-18 710-0451 Carriage Bolt 784-5594 Cable Bracket 790-00118 Shave Plate 731-1313C Chute Tilt Cable Guide 684-04057 Impeller Assembly 710-0262 Carriage Bolt, 5/16-18 x 1.50...
- Page 22 Model 5ML...
- Page 23 Model 5ML Ref. No. Part No. Description Ref. No. Part No. Description 684-04109 Handle Engagement Assembly RH 747-04284 Upper Shift Rod 746-0778 Cable Z Fitting 750-04314 Shift Rod Connector 731-04894 Lock Plate 714-0104 Hairpin Clip 711-04287 Pivot Rod 753-04864 Joystick Housing w/Fasteners...
- Page 24 Model 5ML...
- Page 25 Model 5ML Ref No. Part No. Description Ref No. Part No. Description 710-1652 AB Screw, 1/4-20 x 0.625 713-04010 Sprocket 731-04792 Belt Cover 714-0214 732-0705 Cable Guide 750-1177 Spacer 711-1268A Actuator Shaft 618-0577A Planetary Carr. Assembly 746-04086 Drive Clutch Cable...
- Page 26 NOTES...
- Page 27 NOTES...
- Page 28 MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by MTD LLC with MTD does not extend any warranty for products sold or respect to new merchandise purchased and used in the exported outside of the United States, its possessions United States, its possessions and territories.
