Adjusting The Rear Anti-Scalp Rollers; Adjusting The Rollers - Toro 30534 Operator's Manual

1. Screw
2. Flange-head bolt
4. Remove the flange-head bolts and nuts from each skid.
5. Move each skid to the desired position and secure them
with the flange-head bolts and nuts.
Note: Only use the top or center sets of holes to adjust
the skids. The bottom holes are used when switching
sides on a Guardian mower deck, at which time they
become the top holes on the other side of the mower.
6. Torque the screw at the front of each skid to 9 to 11
N-m (80 to 100 in-lb).
Adjusting the Rear Anti-Scalp
Rollers
Whenever you change the height-of-cut, adjust the height
of the rear anti-scalp rollers.
1. Disengage the PTO, release the traction pedal, and set
the parking brake.
2. Move the throttle lever to the Slow position, stop the
engine, remove the key, and wait for all moving parts to
stop before leaving the operating position.
3. After adjusting the height-of-cut, adjust the rollers by
removing the flange nut, bushing, spacer, and bolt
(Figure 18).

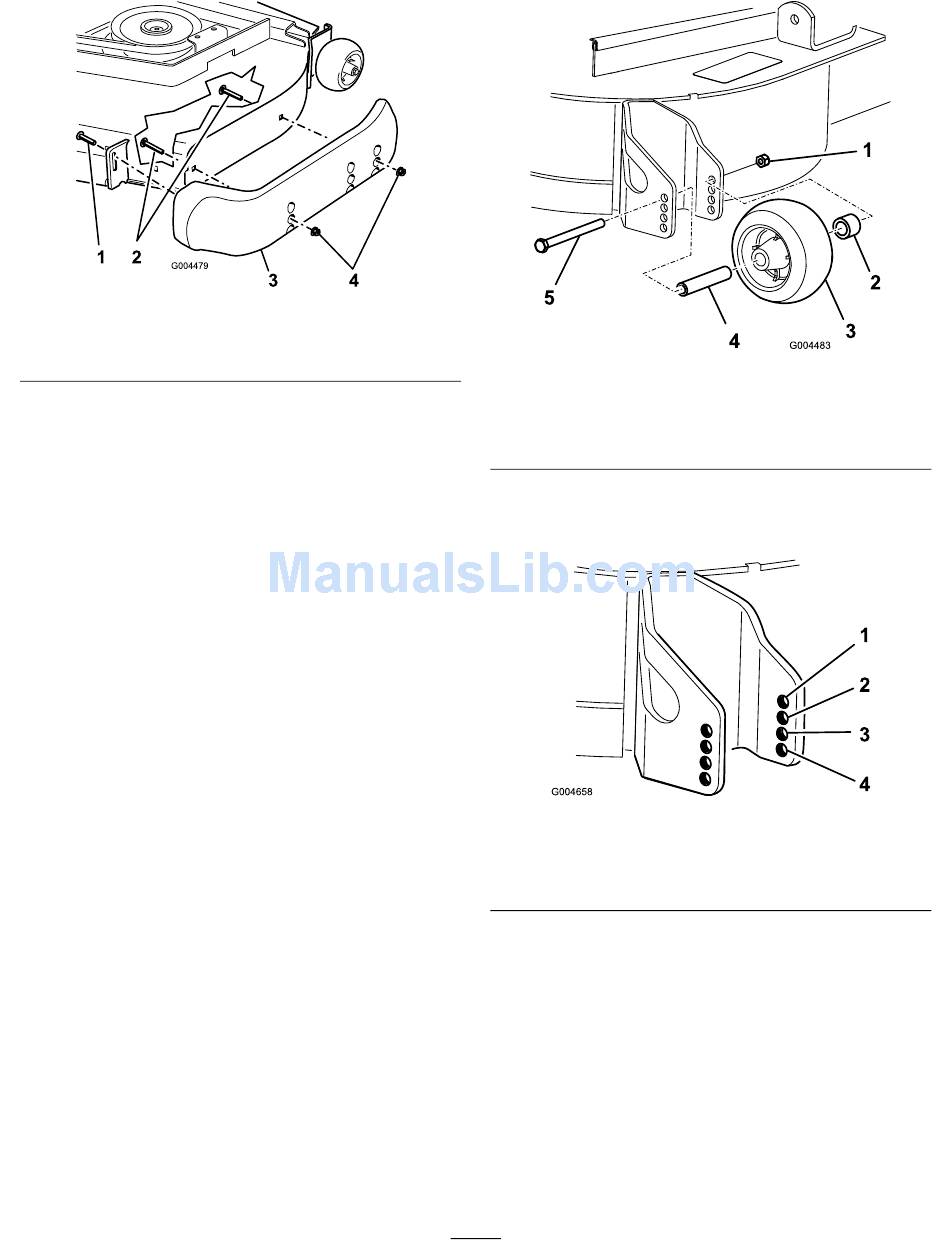

Figure 17
3. Skid
4. Nut
1. Flange nut
2. Bushing
3. Anti-scalp roller
4. Select a hole so the anti-scalp roller is positioned to the
nearest corresponding height-of-cut desired (Figure
19).
1. 38 mm (1-1/2 inches)
2. 51 mm (2 inches)
5. Install the flange nut bushing, spacer, and bolt. Torque
to 54-61 N⋅m (40-45 ft-lb) (Figure 18).

Adjusting the Rollers

Mount the rollers in the lower position when operating in
height of cuts higher than 64 mm (2-1/2 inches) and in the
higher position when operating in height of cuts lower than
64 mm (2-1/2 inches).
1. Disengage the PTO, release the traction pedal and set
the parking brake.
25
Figure 18
4. Spacer
5. Bolt
Figure 19
3. 63 mm (2-1/2 inches)
4. 76 mm (3 inches) and
higher
