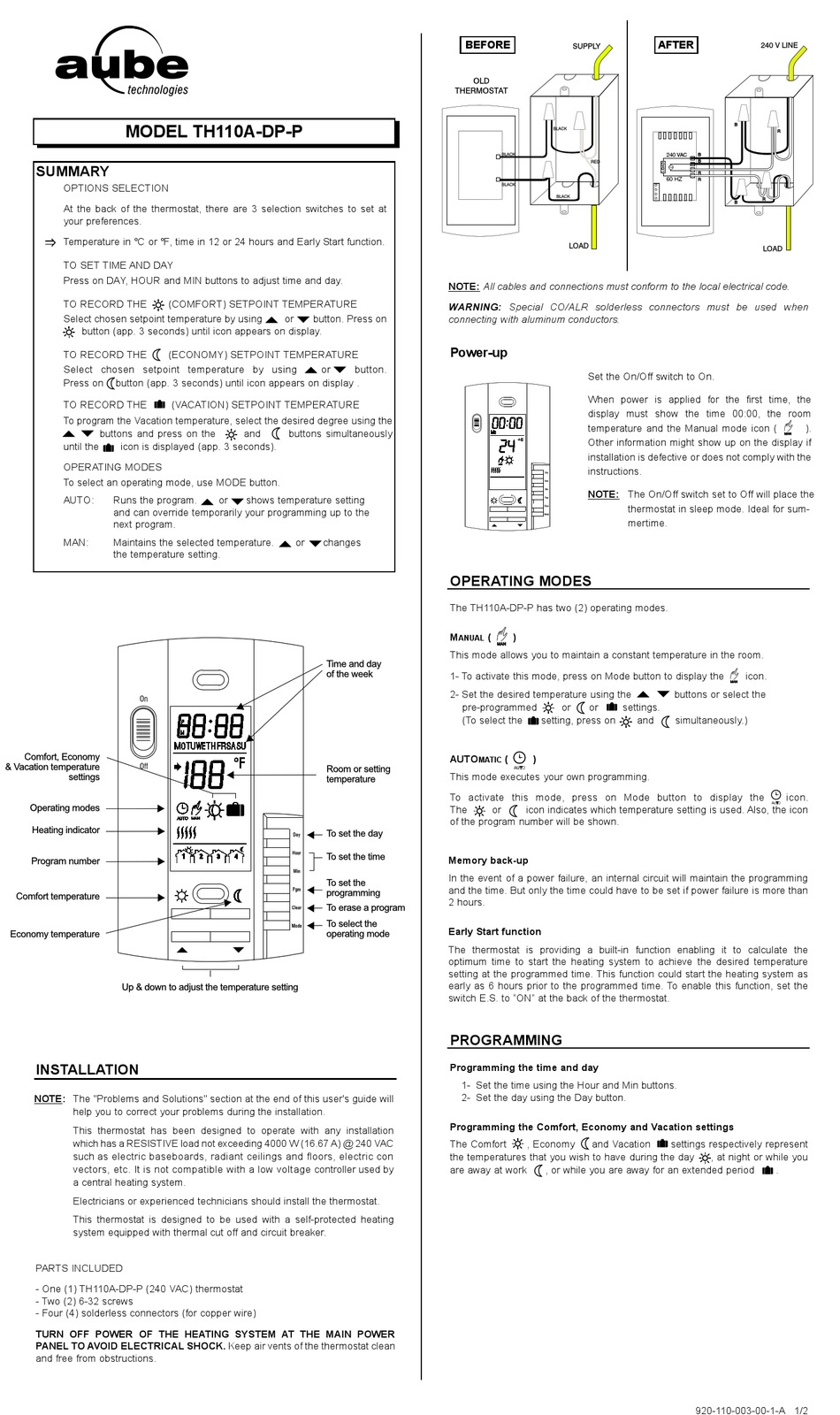

MODEL TH110A-DP-P
SUMMARY
OPTIONS SELECTION
u
At the back of the thermostat, there are 3 selection switches to set at
your preferences.
Temperature in °C or °F, time in 12 or 24 hours and Early Start function.
TO SET TIME AND DAY
u
Press on DAY, HOUR and MIN buttons to adjust time and day.
TO RECORD THE
(COMFORT) SETPOINT TEMPERATURE
u
Select chosen setpoint temperature by using
or
button. Press on
button (app. 3 seconds) until icon appears on display.
TO RECORD THE
(ECONOMY) SETPOINT TEMPERATURE
u
Select chosen setpoint temperature by using
or
button.
Press on
button (app. 3 seconds) until icon appears on display .
TO RECORD THE
(VACATION) SETPOINT TEMPERATURE
u
To program the Vacation temperature, select the desired degree using the
buttons and press on the
and
buttons simultaneously
until the
icon is displayed (app. 3 seconds).
OPERATING MODES
u
To select an operating mode, use MODE button.
AUTO:
Runs the program.
or
shows temperature setting
and can override temporarily your programming up to the
next program.
MAN:
Maintains the selected temperature.
or
changes
the temperature setting.
INSTALLATION
NOTE: The "Problems and Solutions" section at the end of this user's guide will
help you to correct your problems during the installation.
This thermostat has been designed to operate with any installation
which has a RESISTIVE load not exceeding 4000 W (16.67 A) @ 240 VAC
such as electric baseboards, radiant ceilings and floors, electric con
vectors, etc. It is not compatible with a low voltage controller used by
a central heating system.
Electricians or experienced technicians should install the thermostat.
This thermostat is designed to be used with a self-protected heating
system equipped with thermal cut off and circuit breaker.
PARTS INCLUDED
- One (1) TH110A-DP-P (240 VAC) thermostat
- Two (2) 6-32 screws
- Four (4) solderless connectors (for copper wire)
TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN POWER
PANEL TO AVOID ELECTRICAL SHOCK. Keep air vents of the thermostat clean
and free from obstructions.
AFTER
BEFORE
B
240
VAC
B
B
60 HZ
B
NOTE: All cables and connections must conform to the local electrical code.
WARNING: Special CO/ALR solderless connectors must be used when
connecting with aluminum conductors.
Power-up
Set the On/Off switch to On.
When power is applied for the first time, the
display must show the time 00:00, the room
temperature and the Manual mode icon (
).
Other information might show up on the display if
installation is defective or does not comply with the
instructions.
NOTE: The On/Off switch set to Off will place the
thermostat in sleep mode. Ideal for sum-
mertime.
OPERATING MODES
The TH110A-DP-P has two (2) operating modes.
M
(
)
ANUAL
This mode allows you to maintain a constant temperature in the room.
1- To activate this mode, press on Mode button to display the
icon.
2- Set the desired temperature using the
buttons or select the
pre-programmed
or
or
settings.
(To select the
setting, press on
and
simultaneously.)
AUTO
(
)
MATIC
This mode executes your own programming.
To activate this mode, press on Mode button to display the
icon.
The
or
icon indicates which temperature setting is used. Also, the icon
of the program number will be shown.
Memory back-up
In the event of a power failure, an internal circuit will maintain the programming
and the time. But only the time could have to be set if power failure is more than
2 hours.
Early Start function
The thermostat is providing a built-in function enabling it to calculate the
optimum time to start the heating system to achieve the desired temperature
setting at the programmed time. This function could start the heating system as
early as 6 hours prior to the programmed time. To enable this function, set the
switch E.S. to “ON” at the back of the thermostat.
PROGRAMMING
Programming the time and day
1- Set the time using the Hour and Min buttons.
2- Set the day using the Day button.
Programming the Comfort, Economy and Vacation settings
The Comfort
, Economy
and Vacation
settings respectively represent
the temperatures that you wish to have during the day
, at night or while you
are away at work
, or while you are away for an extended period
.
920-110-003-00-1-A 1/2
