Pioneer AVH-P3100DVD Installation Manual

DVD RDS AV RECEIVER
DVD RDS AV РЕСИВЕР
AVH-P3100DVD
Installation Manual
Руководство по установке
Printed in Thailand
Отпечатано в Таиланде
<CRD4372-A/N> UW <KOKNX> <08J00000>
Connecting the units
WARNING WARNING
• To avoid the risk of accident and the potential LIGHT GREEN LEAD AT POWER CONNECTOR
violation of applicable laws, the front DVD or TV IS DESIGNED TO DETECT PARKED STATUS
(sold separately) feature should never be used AND MUST BE CONNECTED TO THE POWER
while the vehicle is being driven. Also, rear displays SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
should not be in a location where it is a visible IMPROPER CONNECTION OR USE OF THIS LEAD
distraction to the driver. MAY VIOLATE APPLICABLE LAW AND MAY RESULT
• In some countries or states the viewing of images IN SERIOUS INJURY OR DAMAGE.
on a display inside a vehicle even by persons
other than the driver may be illegal. Where such
regulations apply, they must be obeyed and this
unit's DVD features should not be used.
CAUTION
• PIONEER does not recommend that you install
or service your display yourself. Installing or
servicing the product may expose you to risk
of electric shock or other hazards. Refer all
installation and servicing of your display to
authorized Pioneer service personnel.
• Secure all wiring with cable clamps or
electrical tape. Do not allow any bare wiring to
remain exposed.
• Do not drill a hole into the engine compartment
to connect the yellow lead of the unit to
the vehicle battery. Engine vibration may
eventually cause the insulation to fail at
the point where the wire passes from the
passenger compartment into the engine
compartment. Take extra care in securing the
wire at this point.
• It is extremely dangerous to allow the display
lead to become wound around the steering
column or gearshift. Be sure to install the
display in such a way that it will not obstruct
driving.
• Make sure that wires will not interfere with
moving parts of the vehicle, such as the
gearshift, parking brake or seat sliding
mechanism.
• Do not shorten any leads. If you do, the
protection circuit may fail to work properly.
Connecting the units
• Control signal is output through blue/white cable
Note
when this unit is powered on. Connect it to an
external power amp's system remote control or the
• This unit cannot be installed in a vehicle without
vehicle's auto-antenna relay control terminal (max.
ACC (accessory) position on the ignition switch.
300 mA, 12 V DC). If the vehicle is equipped with a
glass antenna, connect it to the antenna booster
power supply terminal.
• Never connect blue/white cable to external power
amp's power terminal. Also, never connect it to the
power terminal of the auto antenna. Otherwise,
battery drain or malfunction may result.
• IP-BUS connectors are color-coded. Be sure to
connect connectors of the same color.
• Black cable is ground. This cable and other
ACC position No ACC position
product's ground cable (especially, high-current
products such as power amp) must be wired
• Use this unit in other than the following conditions separately. Otherwise, fire or malfunction may
could result in fire or malfunction. result if they are accidentally detached.
— Vehicles with a 12-volt battery and negative
grounding.
— Speakers with 50 W (output value) and 4 ohm to
8 ohm (impedance value).
• To prevent short-circuit, overheating or malfunction,
be sure to follow the directions below.
— Disconnect the negative terminal of the battery
before installation.
— Secure the wiring with cable clamps or adhesive
tape. To protect the wiring, wrap adhesive tape
around them where they lie against metal parts.
— Place all cables away from moving parts, such
as gear shift and seat rails.
— Place all cables away from hot places, such as
near the heater outlet.
— Do not pass the yellow cable through a hole into
the engine compartment to connect to a battery.
— Cover any disconnected cable connectors with
insulating tape.
— Do not shorten any cables.
— Never cut the insulation of the power cable of
this unit in order to share the power to other
equipment. Current capacity of the cable is
limited.
— Use a fuse of the rating prescribed.
— Never wire the speaker negative cable directly to
ground.
— Never band together multiple speaker's negative
cables.
Connecting the units

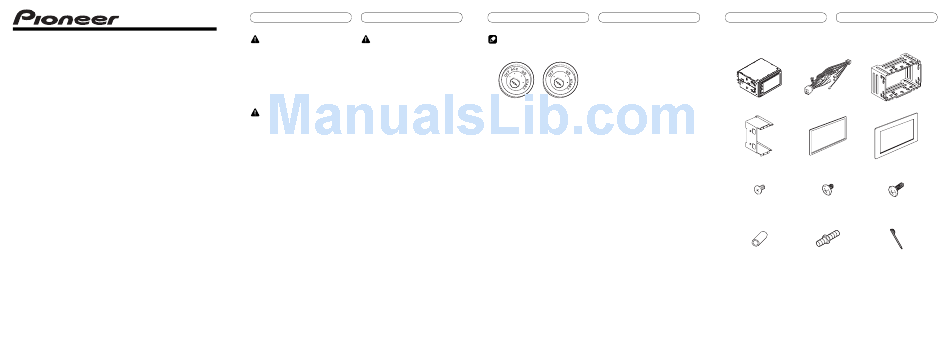

Parts supplied
Parts marked (*) are pre-installed.
This product Power cord Holder*
Side bracket (2 pcs.)* Trim ring Frame
Flush surface screw Binding screw Binding screw*
(5 × 6 mm) (8 pcs.) (5 × 6 mm) (8 pcs.) (3 × 6 mm) (8 pcs.)
(4 pcs. are pre-installed.)
Rubber bush Double-ended screw Touch panel pen
