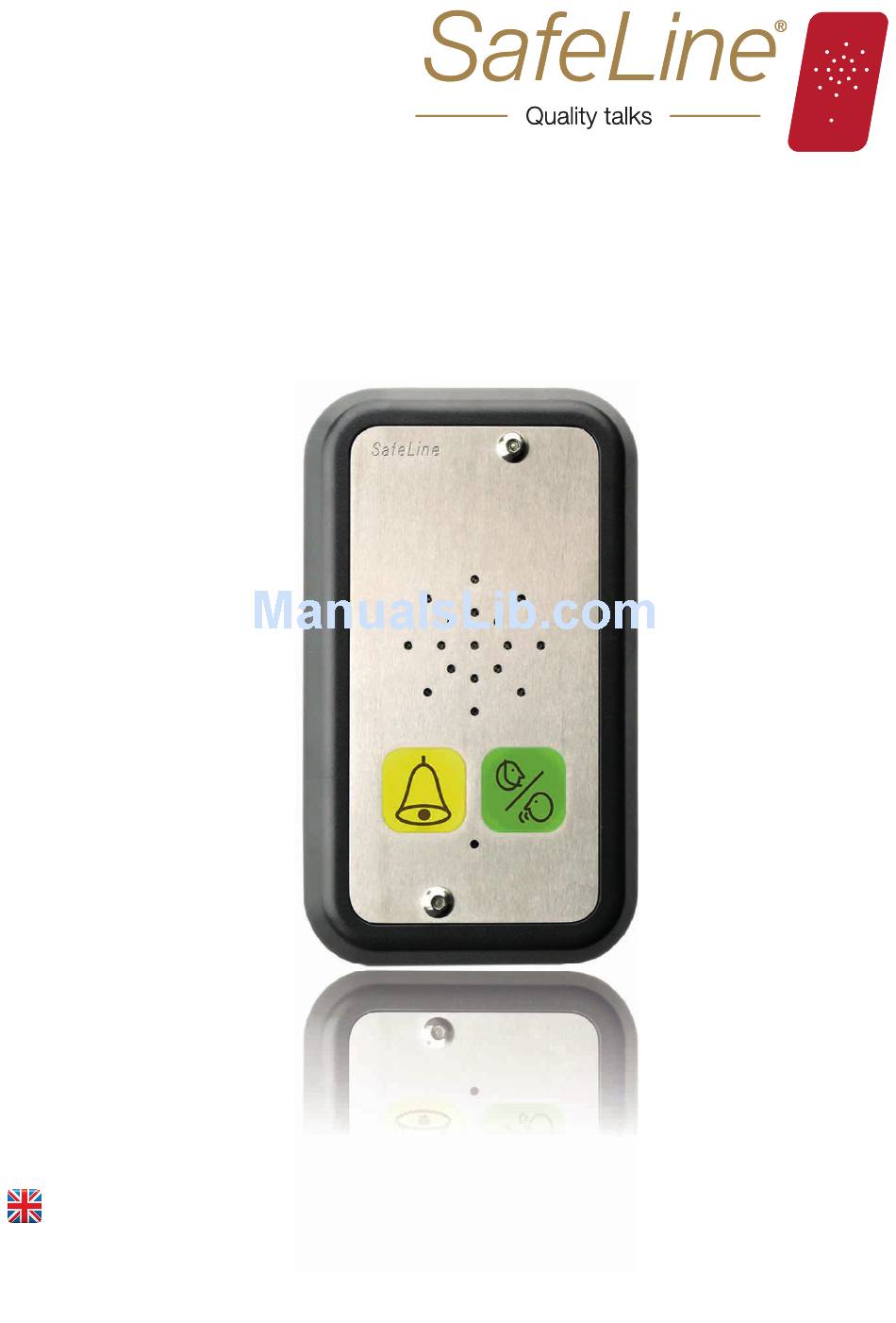

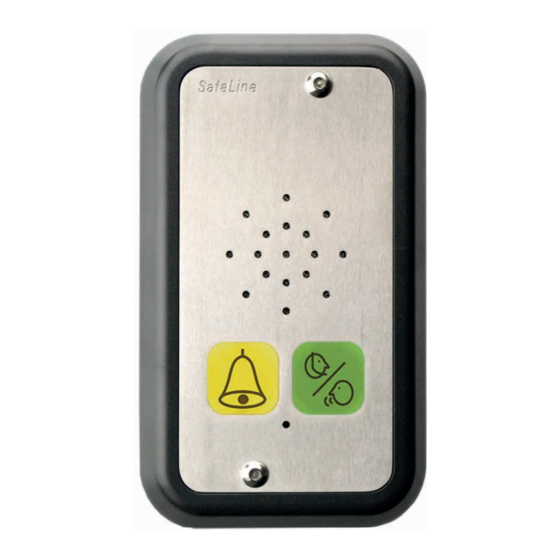

  • Page 1 SafeLine MX3 Installation manual ENGLISH v1.06 03.2015...

  • Page 2: Wiring Diagram, Output 1 And

    Surface mounted with button: 155 x 90 x 31 mm Car Operating Panel: 88 x 53 x 14 mm IP class: IP 43 safeline.eu MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 3: Table Of Contents

    Configuration examples - SafeLine Autodialer Units Configuration interfaces Parameter List Configuration method Operating Led indication Emergency calling process Testing Service Troubleshooting Service Repair Form MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 4: General Information

    The correct disposal of your old product will help to prevent negative consequences for the environment and human health. (WEEE = Waste of Electrical & Electronic Equipment). MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 5: Installation

    3. Volume control To increase volume, press Button ”2”, to decrease volume, press Button ”8”. 4. Output for additional voice unit 5. Keyboard MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 6: Measurements And Components List

    Surface mount SafeLine MX3 with pictograms and emergency alarm button Article number: *SLMX3-SM-PICB 30,7 88,2 SafeLine MX3 COP Article number: *SLMX3-COP 12,2 52,6 13,95 MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 7: Wiring Diagram

    NOTE: In order to access the unit remotely, it needs to be assigned a unit number. Please refere to the Parameter list (* 82 *) for more information. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 8: Wiring Diagram, Output 1 And 2

    *88*20# NOTE! Requires that the output is confi gured for the corresponding function. Please refere to the Parameter list (#88) for more information. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 9 Installation WIRING DIAGRAM, OUTPUT 1 AND 2 Use CABLE13 to connect SafeLine MX3 with external accessories. CABLE13 MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 10 Use CABLE15 to connect SafeLine MX3 with a hearing loop. 12-15 VDC BLACK 0 VDC SPEAKER B SPEAKER A HL1 / HL2 CABLE15 MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 11 Installation WIRING DIAGRAM, WHEN UPDATING TO MX3 FROM MX2 When updating to MX3 from MX2, the RS2 cable kit is required (RJ45 to 6 pin connector). Colours when using fl at cable Voltage supply GRAY Voltage supply ORANGE +10 - 30 V...

  • Page 12: Configuration

    The two outputs can be confi gured independently with a number of functions. The confi guration is performed via SafeLine Pro or with the confi guration code *88*XY#, where X specifi es output 1 or 2 and Y specifi es the function: 0 = Pictogram (Output 1 - Yellow, Output 2 - Green) 1 = Activate with DTMF 8/9 (Output 1 - DTMF8, Output 2 –...
  • Page 13 The function will automatically disconnect a call if no sound is received from the alarm operator within a set time. Only works for voice calls, not for P100/CPC/Q23. The configuration is performed via SafeLine Pro or with the configuration code *92*X#, where X specifies the time: 0 = The function is off.

  • Page 14: Configuration Interfaces

    Apple App Store and on Google Play). NOTE! SafeLine Pro can be downloaded on our website: http://www.safeline-group.com/en/products-solutions/downloads/ SafeLine Pro 4.42 or later is required. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 15: Configuration Method

    One long beep. Invalid input. Last code Call disconnected or end of confi guration. has to be re-entered. MX3 will restart with the new settings. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 16: Configuration Examples - Safeline Autodialer Units

    If at any time you need to start over, use the factory reset command *99*1#. Note! Please refer to the full confi guration setup in the “Parameter list” as these are merely examples. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 17: Parameter List

    Alarm character LMS *45* - - # LMS (Lift Monitoring System) (Battery alarm) Normally 17. Alarm character Test alarm *46* - - # Normally 26. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 18 Phone connects directly to a fi xed receipient without dialling a phone number. 0 = Standard phone line (Default) 1 = Hotline Volume control *76* Adjustabel volume, between 1-6. (Default = 4) MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 19 Alarm button delay time *87* - - # Delay time from pressing the alarm button until activating the alarm. 00-25 seconds. (Default = 05) MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 20 *21*3#, *22*3#, *27*03#, **76*4#, 80*1#, *84*1#, *88*1# 4 = Default VOICE(The follo wing codes will be set): *21*1#, *22*1#, * 27*03#, *76*4#, *80*1#, *84*1#, *88*1# MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 21: Operating

    Activated alarm. Remains lit until reset. Strictly single (*78*2#) As strictly EN81-28 except that the LEDs will not be lit simultaneously, but one at a time. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 22: Testing

    5 sec? Check telephone line. Press on keypad: No connection. Phone line dial tone? Check PSTN-line, Dial out on keypad. Go to Troubleshoot tables. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 23: Emergency Calling Process

    To restart the dialling process, another push of the alarm button is needed. Answer? Calling 4th phone number. Answer? Alarm operator made connection. MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 24: Troubleshooting

    At least one phone number (and one ID code if using data identification) must be configured to enable making a call from the unit. Refer to the parameter list (*11*). MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 25: Service Repair Form

    SERVICE REPAIR FORM Return procedure Safeline accepts only returns which are accompanied by a completed Service form or a simular serviceform from buyer. If the product has been purchased from one of our distributors the buyer must first contact the distributor concerned in each country for assistance.

  • Page 26: Safeline And All The Safeline Products And Accessories Are Copyrighted By Law

    Notes MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 27 Notes MX3 v1.06 EN © 2015 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 28 3001 Heverlee SWEDEN BELGIUM Tel: +46 (0)8 447 79 32 Tel: +32 (0)16 39 48 66 E-mail: order@safeline.eu E-mail: order@safeline.eu SafeLine-Deutschland SafeLine Elevator Parts UK Westfalenstraße 22a 3 Evegate Park Barn D-51688 Wipperfürth Smeeth DEUTSCHLAND Ashford Kent Tel: +49 (0)2267 8 67 96 63 TN25 6SX E-mail: order@safeline.eu...
