SafeLine EVAC
MANUAL
400
366
Evacuation and fire fighting intercom system.
Fire communication
EVAC v1.24 EN
01.2018
2 x 4
29
110
2,5
383
366
www.safeline-group.com
88

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAC and is the answer not in the manual?

Questions and answers

Related Manuals for Safeline EVAC

Summary of Contents for Safeline EVAC

  • Page 1 SafeLine EVAC MANUAL 2 x 4 Evacuation and fire fighting intercom system. Fire communication EVAC v1.24 EN www.safeline-group.com 01.2018...
  • Page 2 TECHNICAL DATA BUS CABLE Max cable length: 200 meters - using 0,5 mm shield cable (recommended). FreeRTOS is used in the product - www.freertoss.org EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 3: Table Of Contents

    Overview connection board (CB) Overview LMS unit System overview Mounting dimensions Cutting the cable START UP Heartbeat message CONFIGURATION Menu tree structure Configuring EVAC EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 4: General Information

    (WEEE = Waste of Electrical & Electronic Equipment). EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 5: Overview

    / Main entrance SAFELINE EVAC STANDBY 1 2 3 4 5 6 7 1 2 3 4 5 6 7 Floor 1 / Basement floor EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 6: Evac Address Selection

    Termination ON Termination ON • The 7 PIN connectors on the LMS board are located above/below each other. • Screened/shielded CAN cables are recommended. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 7 Floor 1 / Basement floor Connector board 1 2 3 4 5 6 7 Floor Station Address selector (tens) Address selector (singles) Termination EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 8: Installation

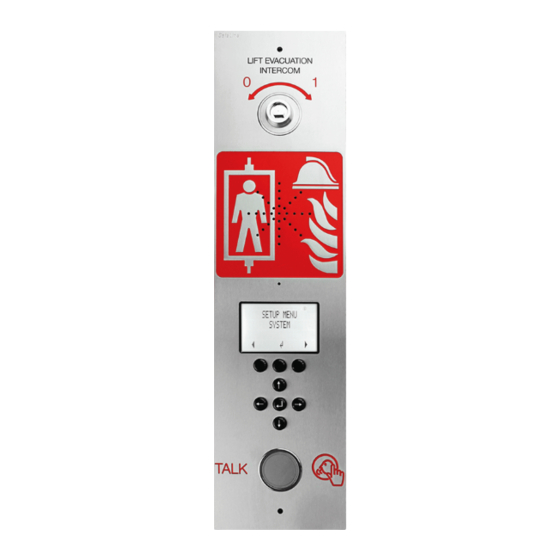

    Switch For activation of EVAC system. Speaker Microphone SAFELINE EVAC Display STANDBY Function keys Keypad PTT (Push To Talk) with LED halo lighting EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 9 LED System LED CAN LED CAN ERR Display contrast USB for fi rmware update Input no.1 Input no.2 Output no.1 Output no.2 SD-card (micro) EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 10: Overview Evac Floor Station (Fs)

    Speaker Microphone Alarm button with LED halo lighting. NOTE: Only required to initiate an alarm call, and not push to talk (PTT). EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 11 Input no.2 Output no.2 USB for fi rmware update SD card (micro) Bus Address, Tens Bus Address, Singles Output no.1 Input no.1 Alarm button EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 12: Overview Evac Car Station (Cs)

    Bus Address, Singles Input no.1 * LED for CAN and CAN ERR is located on the other side Output no.1 of the board. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 13: Overview Connection Board (Cb)

    To fl oor station (FS) or car station (CS) +24 VDC CAN H CAN L GND (Shield) Audio bus (A) Audio bus (B) EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 14: Overview Lms Unit

    8-3. 5-2. CAN1 - Shaft Power Supply Unit (PSU) 230 VAC/24 VDC 9-1. 230 VAC N 9-2. 230 VAC L 9-3. Mainpower GND EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 15: System Overview

    The master unit of the system. All commands and logic is handled by the entrance station. There can only be one entrance station in an EVAC system. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 16: Mounting Dimensions

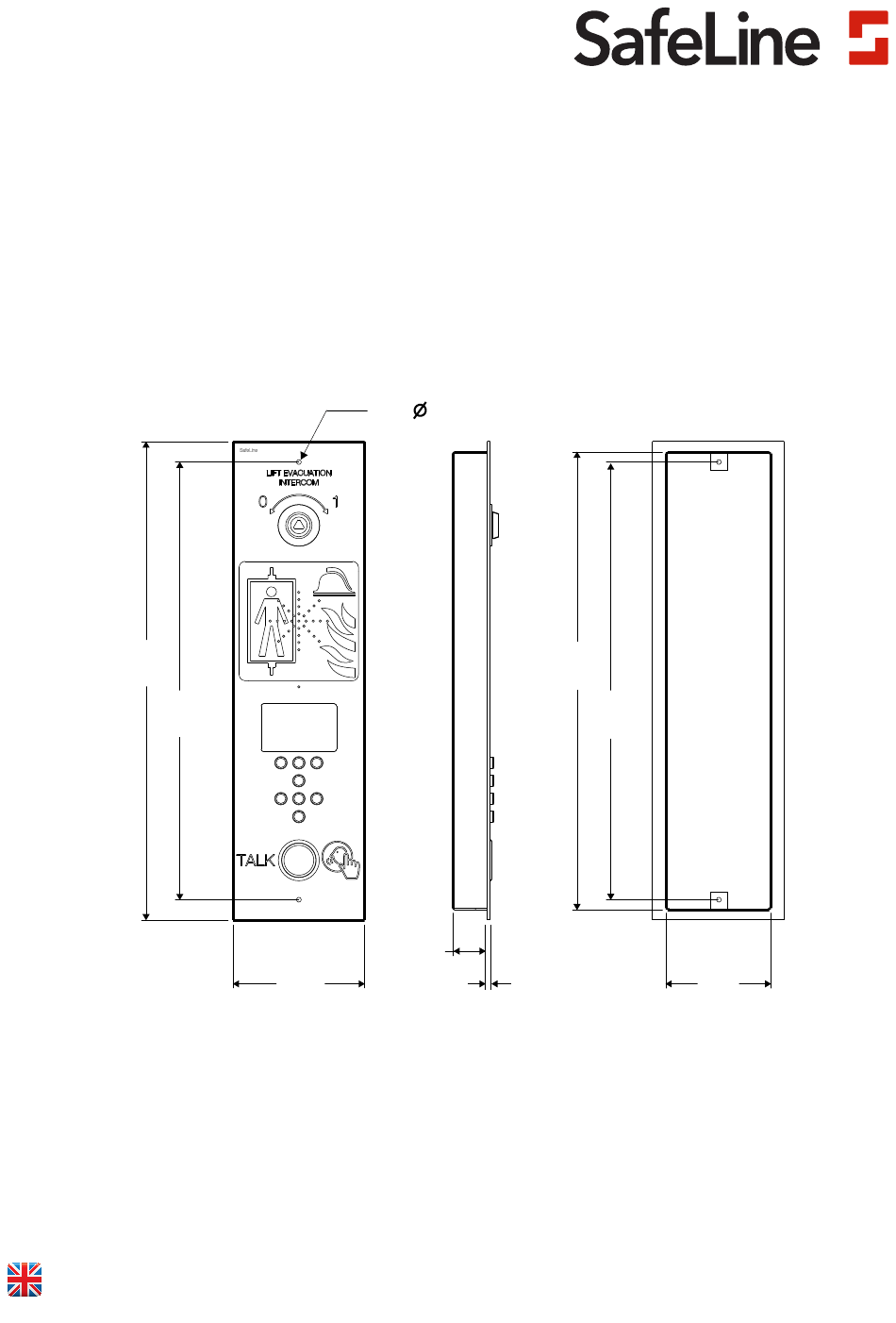

    Entrance station LMS Unit 2 x 4 2 x 5 2 x 9 Floor station Car station 2 x 6 33,7 22,5 25,2 EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 17: Cutting The Cable

    1. Cutting 2. Fixing Make sure that the modular plugs (RJ45) on the ends of the cable are facing the opposite way (see picture). EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 18: Start Up

    STANDBY mode and starts flashing the CAN-error LED. If the master loses any active unit, the unit is removed from the system and an error is logged. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 19: Configuration

    Connected to node Connect to any node Connected to node Connect Menu Connect to car Connected to node Connect to node Connected to node EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 20 Sound Files Mode Repeat Indicate Indicating Hardware version Software version Errors Activate Trigger Send test message Relay Function Hardware version Software version Code EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 21: Configuring Evac

    The pause time is set sound triggers in the setup menu in nodes. in the repeat delay menu. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 22: Operating

    FIRE mode. When FIRE mode is deactivated, the system will return to EVAC mode if the input is set to “high”. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 23: Floor Stations (Fs)

    “alarm button” the speaker will be deactivated, the microphone activate, and the unit will be transmitting sound onto the audio bus. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 24: Entering Menus

    Select: Setup Menu -> System -> To exit the “SETUP” menu, press and hold the Languages -> Deutsch left functionkey. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 25: Setup Menu Structure

    Choose between German or → English. → Alarm button ACK → Deutsch (German) → English EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.
  • Page 26 → Software version - Information about the software. Log - Read the log (stored in the SD card of the entrance station). Errors - Read the current errors. EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.

  • Page 27: Service

    20 = NODE_MISSING_AT_BOOTUP 21 = EVAC_ALARM_RECIEVED 22 = SELF_TEST_STARTED 23 = SD_CARD_CONNECTED 24 = LMS_UNIT_FOUND 25 = LMS_UNIT_LOST 26 = NODE_SD_CARD_CONNECTED 27 = NODE_SD_CARD_DISCONNECTED EVAC v1.24 EN © 2017 SafeLine and all the SafeLine products and accessories are copyrighted by law.
