Summary of Contents for Sylvania SLTDV7200-UK

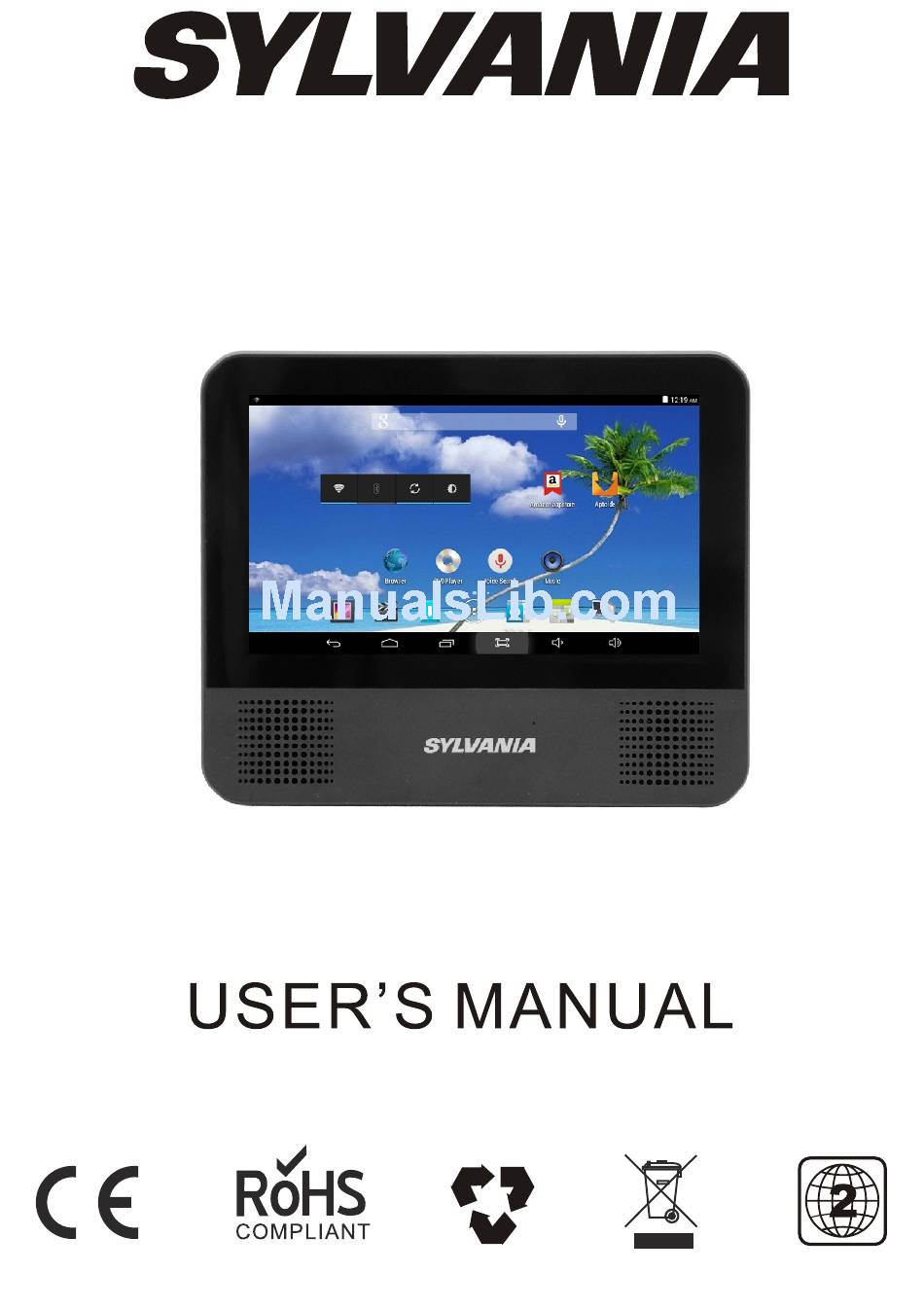

- Page 1 SLTDV7200-UK...
- Page 2 Thanks for choosing our product. This User Manual is designed to guide you through the functions and features of the device. And we reserve the right to change spec. without prior notice as continuous product improvement.To ensure your proper use of the device, please read through the Manual carefully.
- Page 3 Warning To reduce the risk of fire or electric shock, do not expose this device in rain or moisture. -Please do not try to dissemble the device by yourself -Please do not place the device near water, fire, dusty, high temperature and humid environment -Please do not drop, or collide and shake the device with force, esp.
-
Page 4: Table Of Contents
Chapter One(overview) Appearance Buttons Connections Homepage information column Text input Chapter Two (DVD play mode) Chapter Three (internet) Browser Chapter Four ( Application Explorer Downloads Chapter Five(System setting) Wireless networks setting Sound setting Display setting Date & Time setting Chapter Six (Rechargeable battery use) Chapter Seven (Specification) -
Page 5: Main Features
Package DVD player with tablet combo AC power wall adaptor DC power car adaptor Mounting straps USB cable User manual Main Features *7" digital panel of higher resolution *Built-in rechargeable Lithium polymer battery. *Built-in one speaker. *Support playback DVD/VCD/CD/MP3 *Support Android 4.4, Quad core, Arm Cortex-A7 @1.3GHz, wifi: 802.11b/g/n *Built-in internal memory of 8g *Support HDMI, Bluetooth (Tablet mode) -
Page 6: Chapter One Overview
Chapter One Overview 1.1 Appearance HDMI RESET TF CARD EARPHONE Volume- Volume+ Open loader POWER... -
Page 7: Buttons
1.2 Buttons Volume Press to adjust volume. Power button Open Long press 2~3 seconds, screen will light up and pictures will show up until the interface page. Shut down Long press , it'll ask if you will turn power off, press OK to shut down. While charging, if the device is off, press , it will show charging status. -
Page 8: Homepage Information Column
1.4 Home page information Column WIFI Time Battery power Back Recent search Volmue - Host interface Screen shot Volmue + 1.5 Text Input When use the tablet, you can use the virtual keyboard to enter text, number, symbols directly by touching screen. After selecting the Android input method, the default keyboard show as below: ?123 Press... -
Page 9: Chapter Two: Dvd Play Mode
Chapter two: DVD play mode Touch the icon in the application list to enter DVD play mode. Press open button to load in a DVD disc, it will play.T ouch screen, below buttons will be show at the bottom. Previous key Play Pause Next key Repeat... - Page 10 When playing DVD, touch screen, disc play info. Will show on screen as follows (this feature varies per discs): Touch ‘TITLE” or “CHAPTER”, a number select board will show, you can input number to select title or chapter to play. Below diagram for ref. Only.
-
Page 11: Chapter Three: Internet
Chapter three: Internet 3.1 Browser Require network support before using a web browser, if there are network supporting problems, please contact your network operator or the service provider. Tablet's web browser can connect to the Internet. via WIFI to satisfy your business and individual network needs. -
Page 12: Downloads
4.2 Downloads Click in the application list, you can view the downloaded or downlaoding files. Click file to stop while downloading or delete downloaded files. Chapter five: System setting Click to enter System setting interface. 5.1 wireless and networks setting This setting module includes: the wireless and network Settings The wireless local area network Settings. -
Page 13: Date & Time Setting
Sleep setting If the device is not operating for the setup period in this setting, the device will go to Sleep mode and save power. Font size You can setup font size per your needs. There're Small, Normal, Large and Extra large for your option. -
Page 14: Chapter Seven:specification
Chapter seven:Specification 190*155*37 Dimension(mm*mm*mm) Weight Approx 583g 7 " 1024 × 600 Android 4.4 1.3G Hz Quad-Core Processor Memory 1G DDR RAM,8GB internal 802.11b/g/n WI-FI Disc surport DVD/VCD/CD/MP3 Micro-USB, Micro-SD (up to Connections 32GB), Earphone Jack,HDMI Battery 3.7V 3400mAh Li-Poly 2.5 h with DVD Service time 3.h with wifi...
