Ensure that there is still enough tension on the cable and
spring to prevent parts from coming unhooked during
operation. If the tendency for the blades to rotate when the
Dyna-Clutch lever is disengaged cannot be adjusted out of the
system without taking all tension off of the cable and spring,
carefully inspect the drive belt and Dyna-Clutch lever system
for wear or damage. Ensure that all parts are operating freely.
If the Dyna-Clutch lever does not stop the blades, see an
Authorized Service Dealer.
Testing the Dyna-Clutch Lever
Adjustment
Ensure that the testing of the Dyna-Clutch lever is done is
a clear and open area.
1. Move the Dyna-Clutch lever to the Stop position.
2. Start the trowel.
3. Turn off the fuel valve.
4. Hold onto the handle and engage the Dyna-Clutch
lever.
5. Let go of the handle.
The Dyna-Clutch lever should switch to the Stop
position within 1 rotation. If it does not, keep clear of
the area and wait for the machine to run out of fuel.
Bring the machine to an authorized service location.
Adjusting the Blades
Adjust the blades to remove excessive shaking of the machine.
1. Disconnect the spark plug wire and move the
Dyna-Clutch lever to the Stop position.

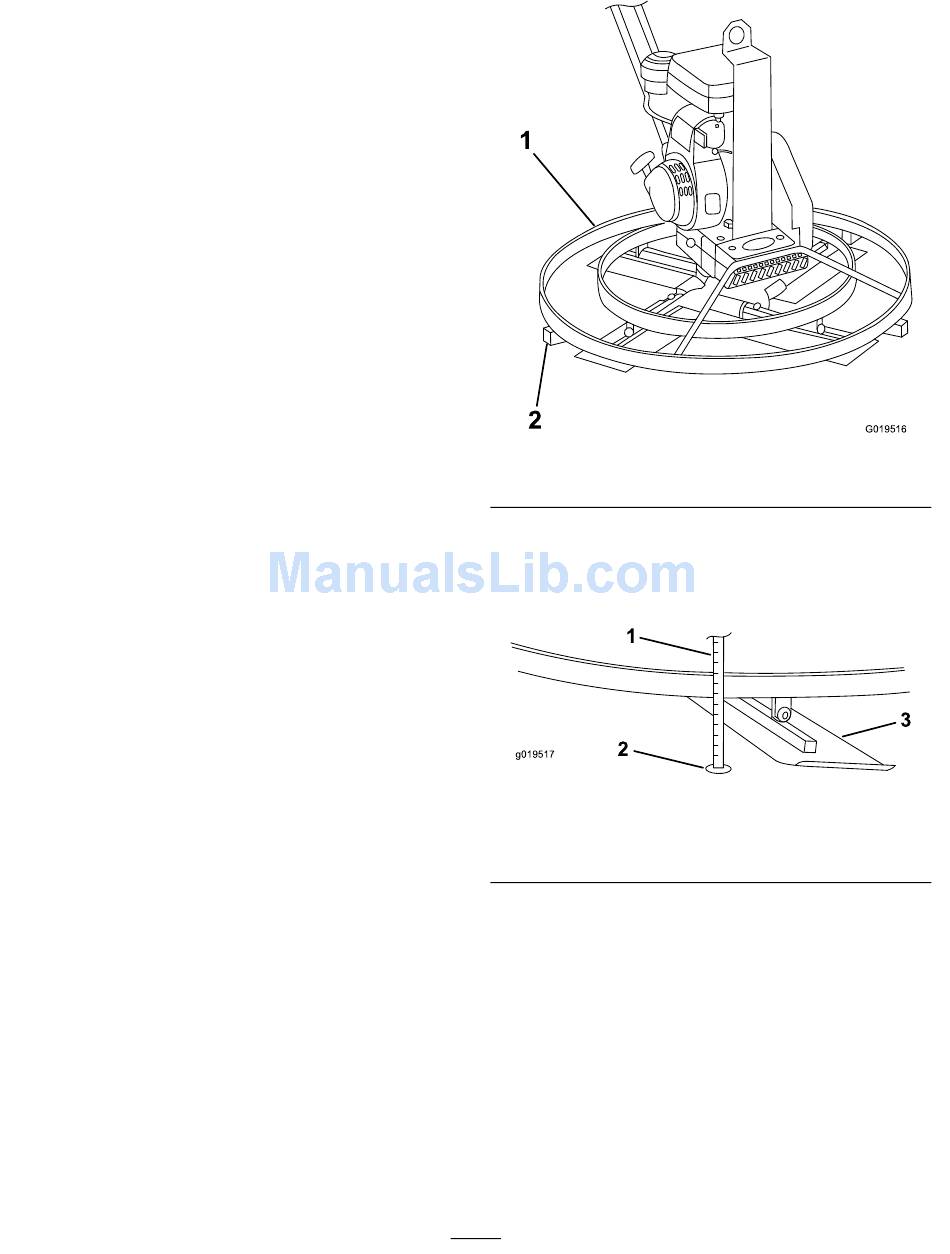

2. Place 3 or 4 blocks of equal height under the stationary
blade guard (outer ring) to raise the blades off of the
floor.
Note: Ensure that the blocks are clear of the blades
so that the blades can be rotated without touching the
blocks.
1
2
1. Stationary blade guard
3. Measure from the floor to the leading edge of the
blade. Note the measurement.
4. Place a mark on the blade and on the spot on the floor
from where the measurement was taken (Figure 28).
1
2
g019517
1. Spot on the floor where the
measurement was taken
2. Ruler
5. Rotate the blades until the next blade is in the same
position as the previously measured blade.
6. Measure the second blade from the spot previously
marked on the floor to the second blades leading edge
(Figure 29).
20
Figure 27
2. Block
Figure 28
3. Blade
G019516
3
