Disassembly

Removing the Keyboard

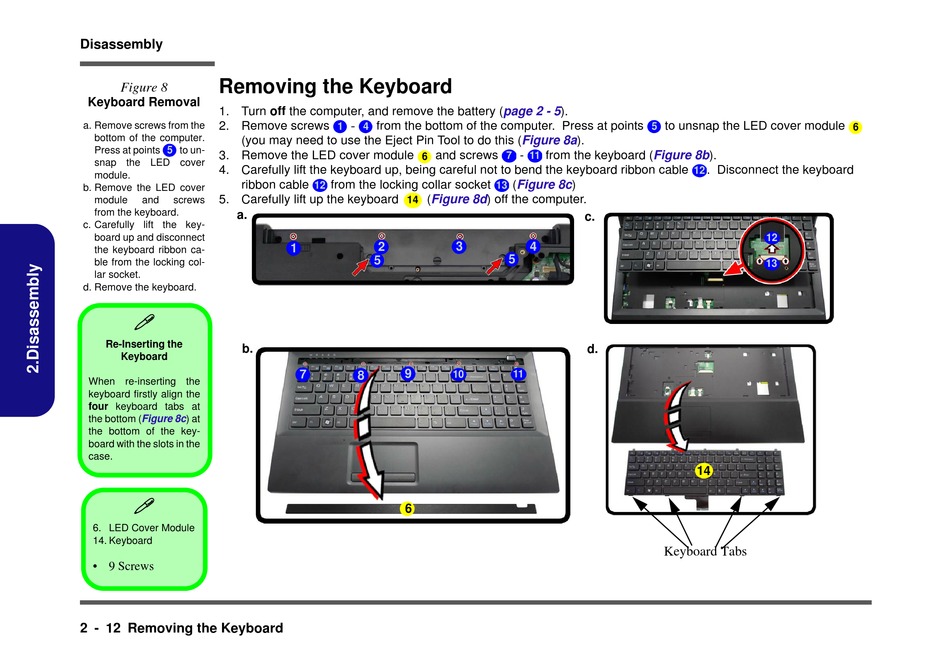

Figure 8
Keyboard Removal
1. Turn off the computer, and remove the battery
2. Remove screws
a. Remove screws from the
bottom of the computer.
(you may need to use the Eject Pin Tool to do this
Press at points 5 to un-
3. Remove the LED cover module
snap the LED cover
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable
module.
ribbon cable
b. Remove the LED cover
5. Carefully lift up the keyboard
module and screws
from the keyboard.
a.
c. Carefully lift the key-
board up and disconnect
the keyboard ribbon ca-
ble from the locking col-
lar socket.
d. Remove the keyboard.

Re-Inserting the
b.
Keyboard
When re-inserting the
keyboard firstly align the
four keyboard tabs at
the bottom (Figure 8c) at
the bottom of the key-
board with the slots in the
case.

6. LED Cover Module
14. Keyboard
• 9 Screws
2 - 12 Removing the Keyboard
- from the bottom of the computer. Press at points
1 4
and screws
6
from the locking collar socket
12
(Figure
14
2 3
1
5
7 9
8 10
6
(page 2 - 5).
5
(Figure 8a).
- from the keyboard (Figure
7 11
(Figure 8c)
13
8d) off the computer.
c.
4
5
d.
11
to unsnap the LED cover module
8b).
. Disconnect the keyboard
12
12
13
14
Keyboard Tabs
6
