Disassembly

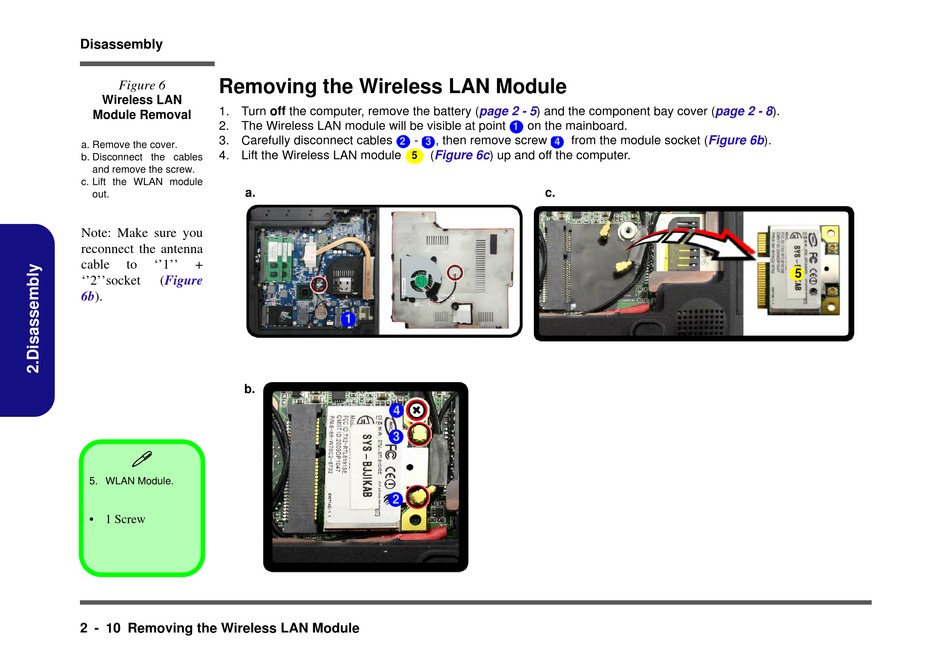

Removing the Wireless LAN Module

Figure 6
Wireless LAN
1. Turn off the computer, remove the battery
Module Removal
2. The Wireless LAN module will be visible at point
3. Carefully disconnect cables
a. Remove the cover.
4. Lift the Wireless LAN module
b. Disconnect the cables
and remove the screw.
c. Lift the WLAN module
a.
out.
Note: Make sure you
reconnect the antenna
cable to ''1'' +
''2''socket (Figure
6b).
b.

5. WLAN Module.
• 1 Screw
2 - 10 Removing the Wireless LAN Module
(page 2 -
1
- , then remove screw
2 3
(Figure 6c) up and off the computer.
5
1
4
3
2
5) and the component bay cover
on the mainboard.
from the module socket (Figure
4
c.
.
(page 2 - 8)
6b).
5
