Disassembly

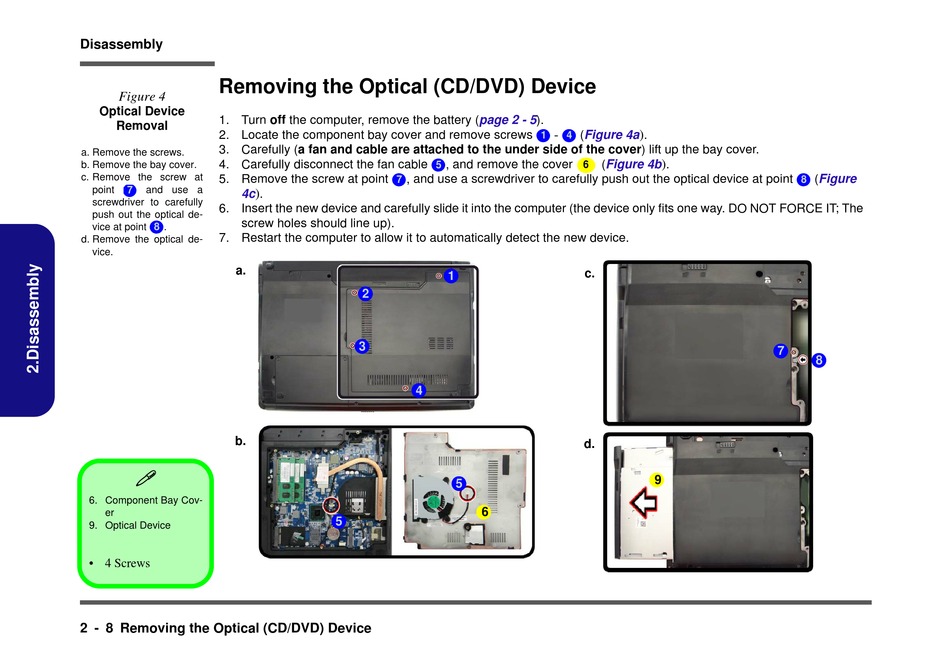

Removing the Optical (CD/DVD) Device

Figure 4
Optical Device
1. Turn off the computer, remove the battery
Removal
2. Locate the component bay cover and remove screws
3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover.
a. Remove the screws.
4. Carefully disconnect the fan cable
b. Remove the bay cover.
c. Remove the screw at
5. Remove the screw at point
point 7 and use a
4c )
screwdriver to carefully
6. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
push out the optical de-
screw holes should line up).
vice at point 8 .
7. Restart the computer to allow it to automatically detect the new device.
d. Remove the optical de-
vice.
a.
b.

6. Component Bay Cov-
er
9. Optical Device
• 4 Screws
2 - 8 Removing the Optical (CD/DVD) Device
5
, and use a screwdriver to carefully push out the optical device at point
7
.
2
3
4
5
(page 2 - 5).
- (Figure 4a
1 4
, and remove the cover (Figure 4b
6
c.
1
d.
5
6
) .
)
.
(Figure
8
7
8
9
