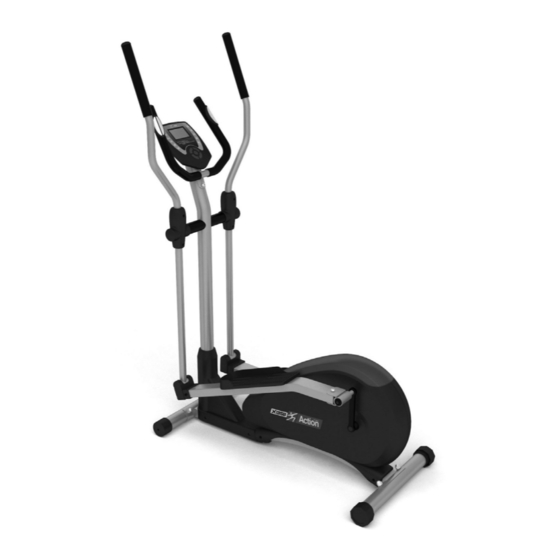

  • Page 1 OWNER’S MANUAL Mag Elliptical X135B F000068 Call for service 1-800-465-070 www.actionsports.com.au...

  • Page 2: Exploded View

    Exploded View Call for service 1-800-465-070 www.actionsports.com.au...

  • Page 3: Parts List

    Part List ITEM Q’TY PART ITEM Q’TY PART NAME NAME Main Frame M6 Hex Nut Console Tube Idler Pulley The Upper Foam Handle(Left ) Belt Tension Bracket Front Foot Tube #608 Precise Bearing Rear Foot Tube Tension Cable (Drive Cable) The Upper Foam Handle(Right) M8 x 30mm Hex Head Screw Pulley...

  • Page 4: Table Of Contents

    Table of Contents Page Exploded View _____________________ Parts List __________________________ Important Safety Information _____________ Before You Start _____________________ Assembly Instruction _________________ __ Console ___________________________ Monitoring Your Heart Rate ____________ Warranty / Service ___________________ Call for service 1-800-465-070 www.actionsports.com.au...

  • Page 5: Important Safety Information

    Important Safety Information WARNING! Before using this unit or starting any exercise program, consult your physician. This is espe- cially important for persons over the age of 35 and/or persons with pre-existing health prob- lems. The manufacturer or distributor assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

  • Page 6: Before You Start

    Before You Start Thank you for purchasing this new Action Mag Elliptical! This quality product you have chosen was designed to meet your needs for cardiovascular exercise. Before you start, please read the Owner's Manual and become familiar with the operation of your new unit. Remember to take the time to perform the stretching exercises provided to avoid injury.

  • Page 7: Assembly Instruction

    Assembly Instruction REMOVE ALL SECURITY TAPE AND WRAPPING BEFORE BEGINNING 1. Connect Foot Tubes (4&4A) to Main Frame (1) using : Qty 4 – (19) Hex Head Screw Qty 4 – (57) 8mm Nut Cap Qty 4 – (68) M8 Washer Make sure that the Foot Tube (4&4A) with Transport Wheels (52) and Foot Caps(18) are assembled to the front and rear of the Main Frame (1).

  • Page 8: Console Tube

    Assembly Instruction 3. Shaft Right Lower Handlebar (71) with Right Pivot of Console Tube (2) ,then secured by Black Washer (78) and one Locknut (77). Slide the Right Upper Foam Handlebar (5) into the Right Lower Handle (71) and secure with two Hex Head Screws (62) and two 6mm Nylon Nuts (33) .

  • Page 9: Foot Frame

    Assembly Instruction 5. Attach Right Foot Pedal (31) to Right Foot Frame (9) using two Screws (63) and two 8mm Locknuts (72). Repeat current to complete the left side assembly. 6. Pull both Pulse Wires (64) through a hole at the top front of Console Tube (2).
  • Page 10 Assembly Instruction 7. To change KM or ML , please push the switch to select scale (KM or ML) 8. Connect the Pulse Wires (64) and Extension Wire (58) to the wires from the Monitor (15). Next secure Monitor (15) to Console Tube (2) using two Screws (39). Note: The Screws(39) will already be installed into the back of Monitor(15) when you remove it from the box.
  • Page 11 Assembly Instruction 9. The monitor only can be powered by using the AC Adaptor input, pls make sure the AC Adaptor has already been plugged into the adaptor jack on the bottom housing(as showed on the drawing) Adapter jack Call for service 1-800-465-070 www.actionsports.com.au...

  • Page 12: Console

    Console The console with large LCD which can display RPM, SPEED, TIME, DISTANCE, CALORIES, WATTS, and HEART RATE. ___________ Power On Press any button to turn on the console. A long beep will sound and the entire LCD display will light up for 2 seconds. Sleep This occurs if the unit senses no pedal movement or if the console buttons have not been pressed for 3 minutes...

  • Page 13: Monitoring Your Heart Rate

    Monitoring Your Heart Rate To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work within your target heart rate zone. The American Heart Association (AHA) defines this target as 60%-75% percent of your maximum heart rate. Your maximum heart rate may be roughly calculated by subtracting your age from 220.
  • Page 14 Monitoring Your Heart Rate Call for service 1-800-465-070 www.actionsports.com.au...

  • Page 15: Warranty / Service

    Please read and retain this manual as it will assist with identification for parts and service. LIMITED WARRANTY ACTION FITNESS warrants its F000068 (X135B) Mag Elliptical to be free from defects in material and work- manship under normal use and service conditions for a period of 12 months from the date of purchase of this article.
