PROPER INSTALLATION SEQUENCE: L-360-CD & L-420-CD continued
7-

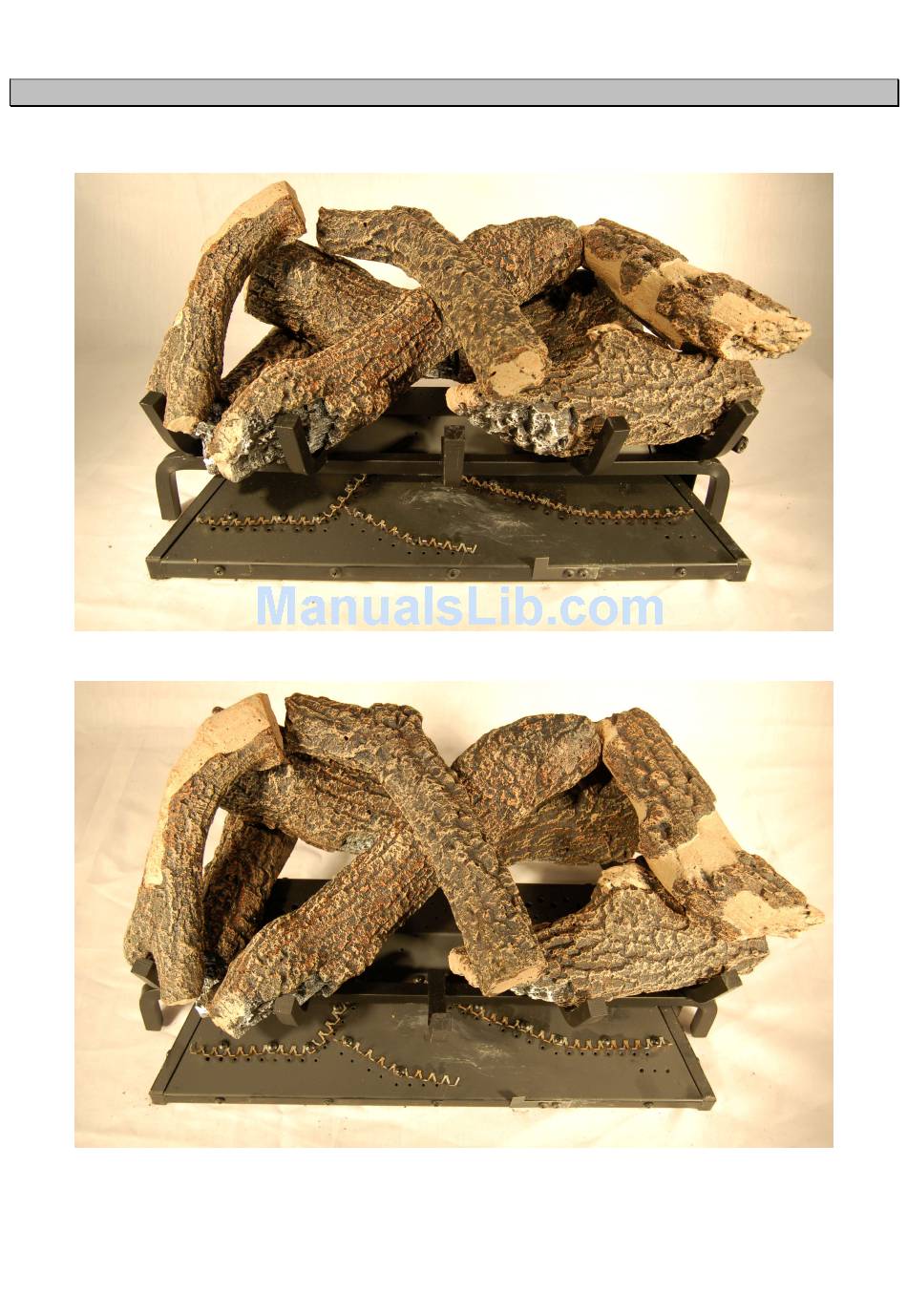

Place Log # IFG-2409-CD on the top left side of the set, making sure to index the far left grate tine, and the top of rear Log #
IFG-2402-CD ( Log # IFG-3002-CD for 420 series ).
FRONT ANGLE VIEW
OVERHEAD VIEW
11
