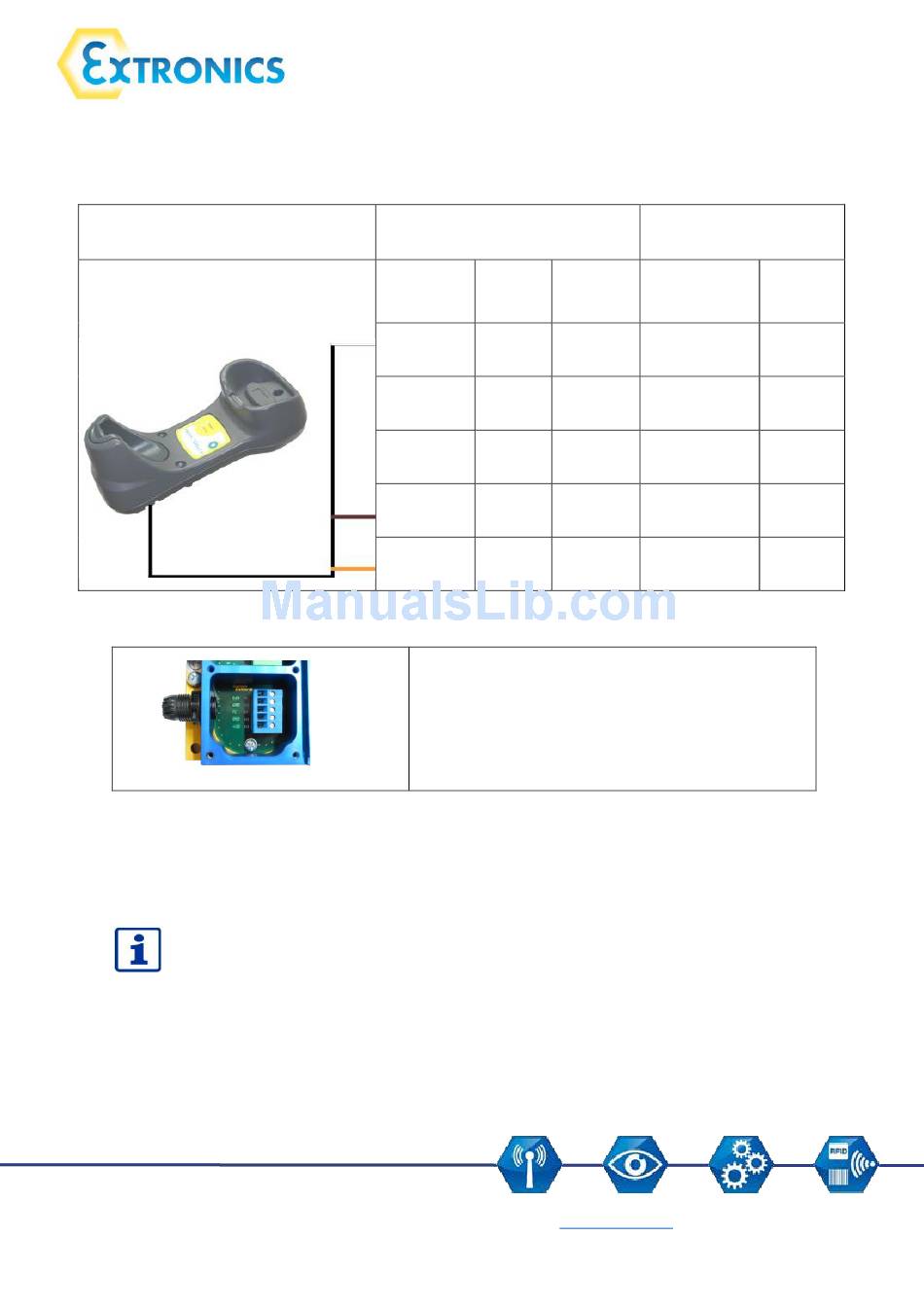

Direct connection of base station without plug connection to the RS232 iSCANPS – connection with
cable end sleeve:
Pin assignment of scanner
To fully operate the Bluetooth handheld scanner you will require the programming information
contained in the manual published by SICK AG (www.SICK.com).
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
RS232 connection cable
(iSCAN101CAB1, 2)
RJ45 Pin Wire
assignment colours
6 White
4 Brown
7 Yellow
Intrinsically safe connection box
of the RS232 iSCANPS power supply
after removal of the wires of the plug connection
www.extronics.com
Power supply
(iSCANPS1, 12D, 3, 32D)
Definition Connection
terminal
power supply
TXD X9
X10
X11
GND X12
+UB X13
Definition
RXD
GND
PE
GND
+UB
