4.2 Cable range in assembly 1

iSCAN211EXB
RS232
iSCAN201EXB2D
iSCAN211EXB
USB
iSCAN201EXB2D

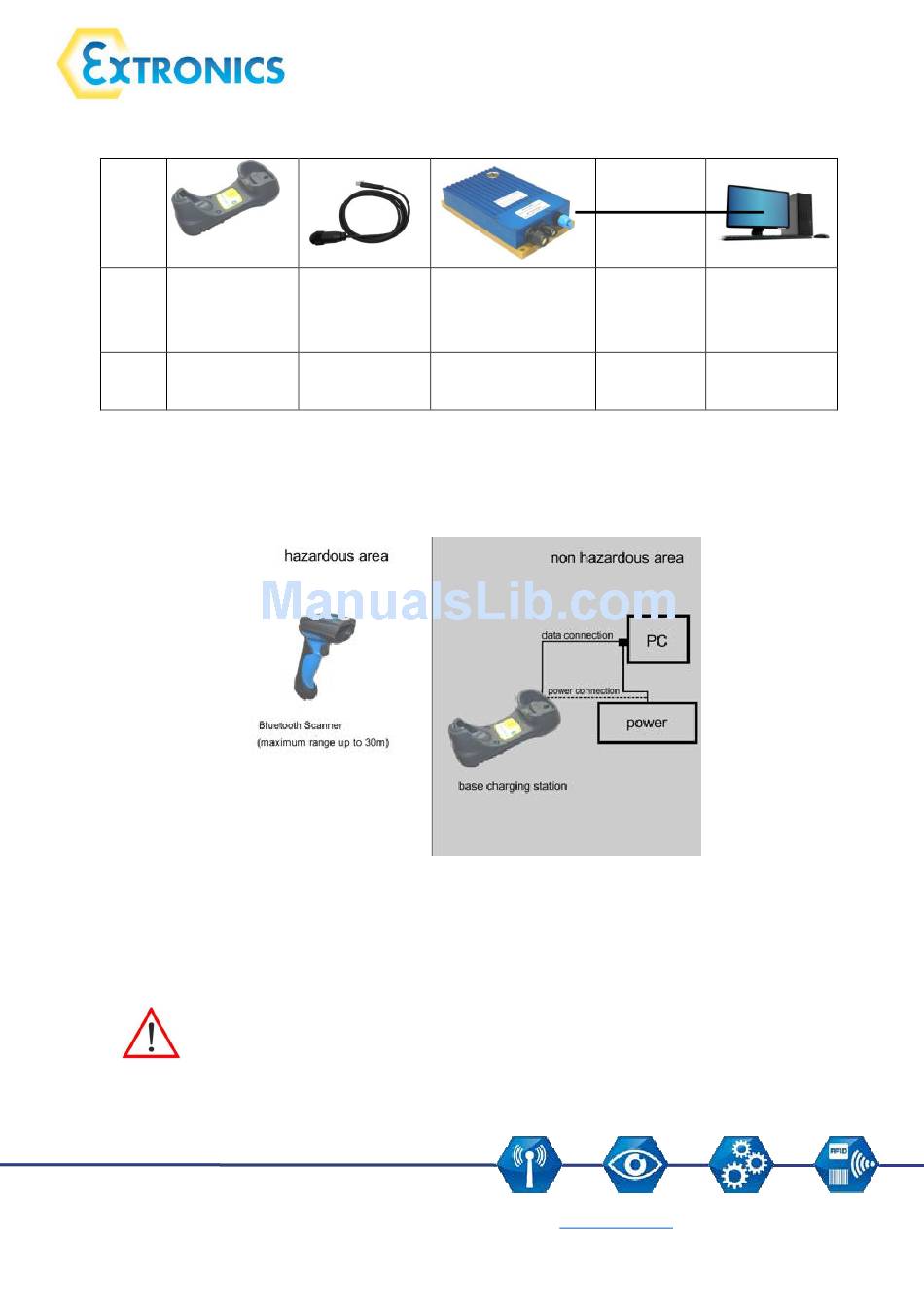

4.3 Assembly 2 description

The Bluetooth handheld scanner can also be used separately in the hazardous area. The base or
charging station is then operated in the non-hazardous area.
Use an RS232 cable (iSCAN2XXCAB1 or 2) or a USB cable (iSCAN2XXCAB3 or 4) to connect the station
directly to a power supply and a PC.
The warnings and notes of caution contained in these operating instructions and in the
manual issued by SICK AG (www.SICK.com) must be adhered to.
