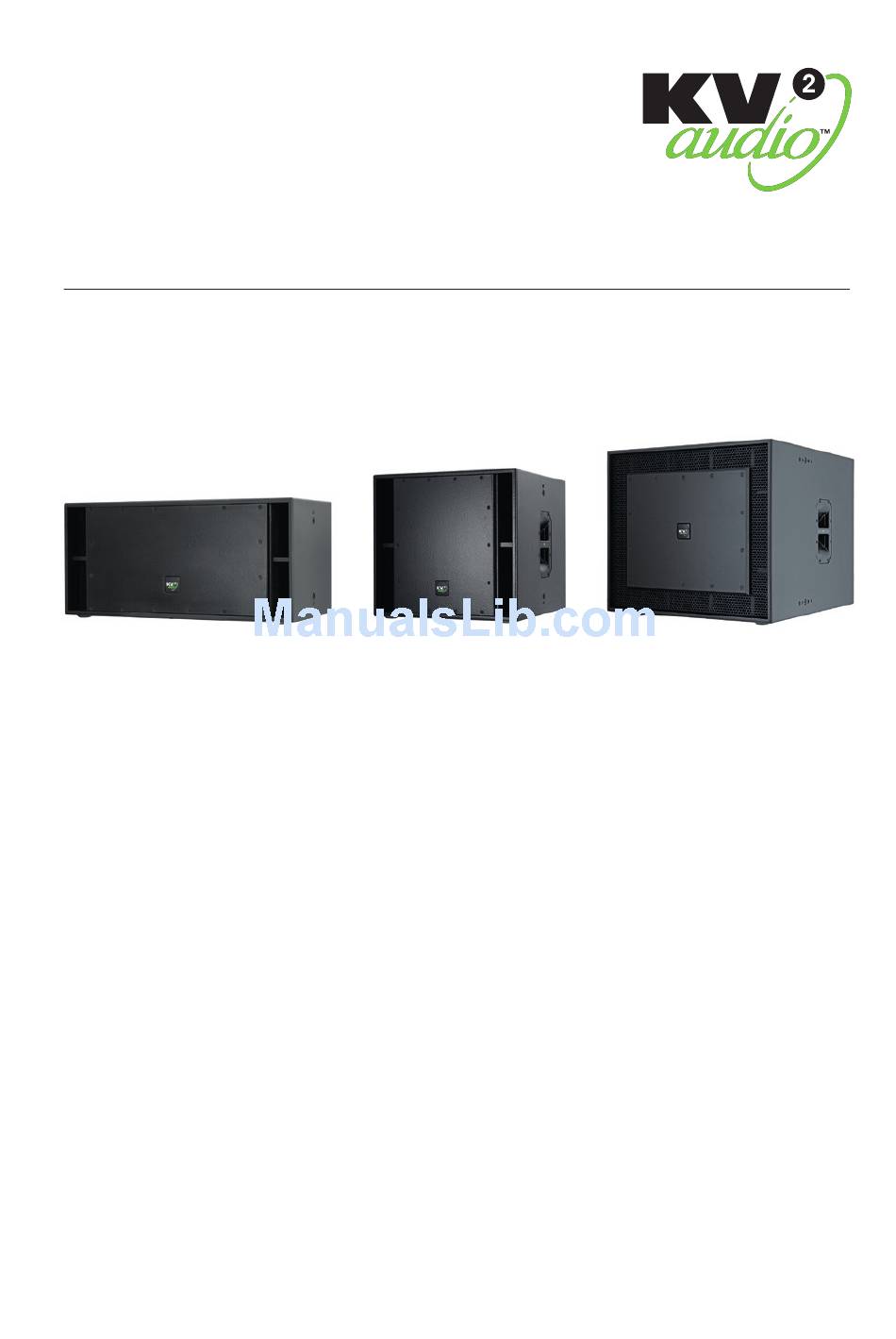

User Manual
ESD Series Subwoofers
User Guide
· ESD1.12 · ESD1.15 · ESD1.18
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Related Manuals for KV2 Audio ESD Series
Summary of Contents for KV2 Audio ESD Series
- Page 1 · ESD1.12 · ESD1.15 · ESD1.18 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
-
Page 2: Table Of Contents
ESD Series Subwoofers · Contents Contents ESD1.12 Overview Specifications Drawing ESD1.15 Overview Specifications Drawing ESD1.18 Overview Specifications Drawing Accessories Warranty · Service... -
Page 3: Esd1.12
ESD1.12 · Overview ESD1.12 - part number KVV 987 225 Application Specifically designed as a passive subwoofer to accompany and compliment the ESD5/6 as a true full range system • For fixed installation • Bars-small entertainment projects • Small footprint and dimensions allow placement under seating and fixtures Introduction The ESD1.12 is a very compact passive, high output subwoofer. -
Page 4: Specifications
ESD1.12 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 124dB Max SPL Peak 127dB -3dB Response 38Hz to 150Hz Recommended Power 600W Sensitivity 97dB (half-space area) Impedance 4Ω Crossover Point 80Hz to 150Hz Low Frequency Section Acoustic Design Twin Asymmetrical loading Number of Drivers Woofer Size / Voice Coil Diameter / Design 12"... -
Page 5: Drawing
ESD1.12 · Drawings Drawings... -
Page 6: Esd1.15
ESD1.15 · Overview ESD1.15 - part number KVV 987 241 Application Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance • Fixed installation • Portable PA • Bars-small entertainment projects • Scalable into larger systems Introduction The ESD1.15 is a compact passive, high output subwoofer. -
Page 7: Specifications
ESD1.15 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 130dB -3dB Response 37Hz to 150Hz Recommended Power 600W Sensitivity 99dB (half-space area) Impedance 4Ω Crossover Point 80Hz to 150Hz Low Frequency Section Acoustic Design Twin Asymmetrical loading Number of Drivers Woofer Size / Voice Coil Diameter / Design 15"... -
Page 8: Drawing
ESD1.15 · Drawings Drawings... -
Page 9: Esd1.18
ESD1.18 · Overview ESD1.18 - part number KVV 987 242 Application Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance • Fixed installation • Portable PA • Bars-small entertainment projects • Scalable into larger systems Introduction The ESD1.18 is a high output subwoofer. -
Page 10: Specifications
ESD1.18 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 131dB Max SPL Peak 134dB -3dB Response 30Hz to 150Hz -10dB Response 27Hz to 150Hz Recommended Power 1000W Sensitivity 100dB Impedance 8Ω Crossover Point 80 to 150Hz Low Frequency Section Acoustic Design Twin Asymmetrical loading Number of Drivers... -
Page 11: Drawing
ESD1.18 · Drawings Drawings... -
Page 12: Accessories
ESD Series Subwoofers · Accessories Speaker pole - universal part name: KV2-H min - max part number: 735 mm - 1230 mm 28,937" - 48.425" KVV 987 130 description: - Heavy duty telescopic speakerpole - 0,735 to 1,23 m - diameter 35 mm - weight 2,2 kg - max. -
Page 13: Warranty · Service
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer. - Page 14 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120056-00-05-0...
