ESD Subwoofers
ESD1.12
ESD1.15
ESD1.18
User Guide
Advertisement
Table of Contents
Related Manuals for KV2 Audio ESD1.12
Summary of Contents for KV2 Audio ESD1.12

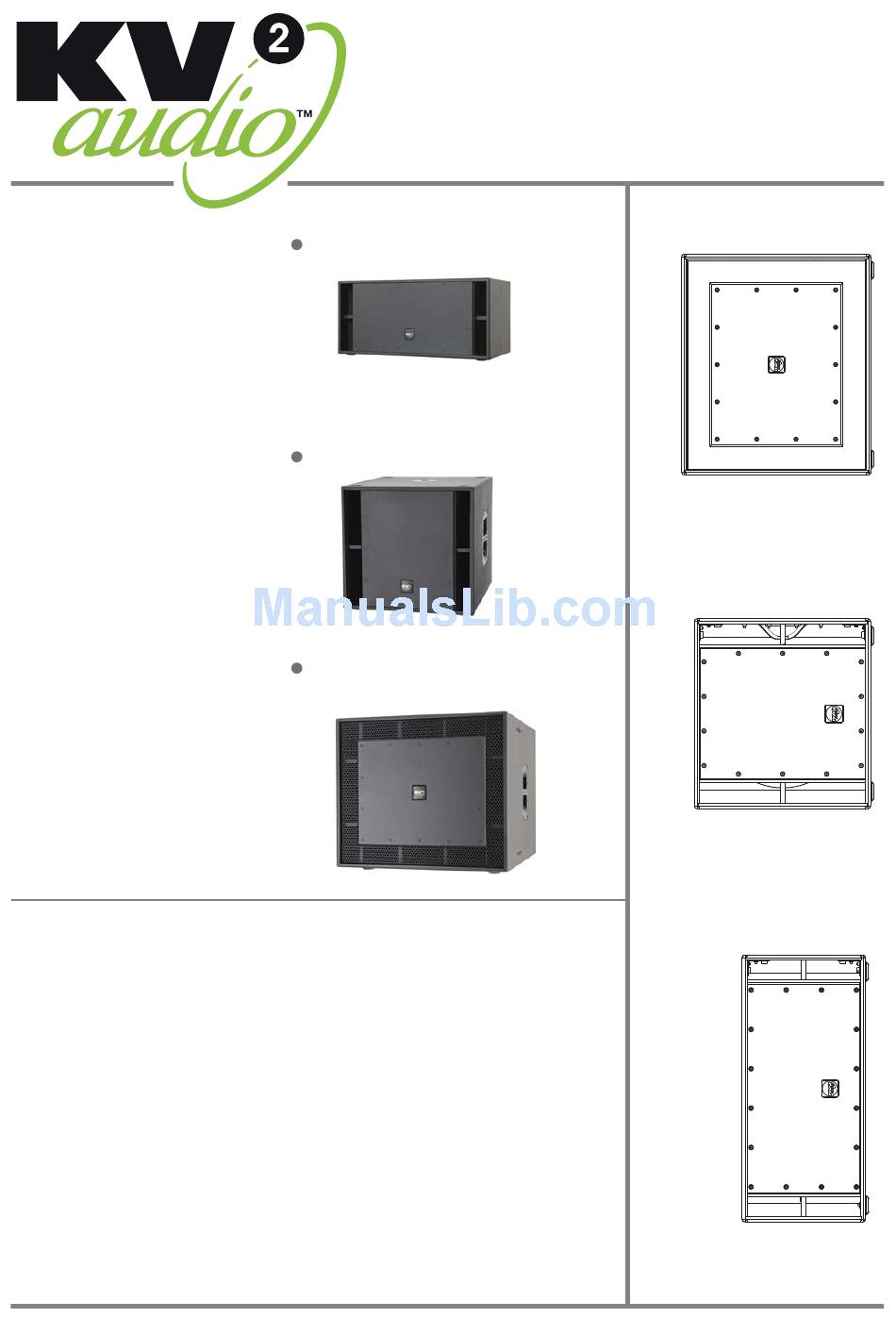

- Page 1 ESD1.15 ESD1.18 The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.
-
Page 3: Table Of Contents
Contents ESD1.12 Overview Specifications Drawing ESD1.15 Overview Specifications Drawing ESD1.18 Overview Specifications Drawing Accessories, Warranty Accessories Warranty, Service... -
Page 4: Esd1.12
PARALLEL INPUTS 4 Ohms 4 Ohms + (1+, 2+) + (1+, 2+) + (1+, 2+) + (1+, 2+) SERIAL NUMBER SERIAL NUMBER PARALLEL CONNECTION OF THE ESD1.12 (4Ω) - TOTAL IMPEDANCE 2Ω Configurations example: ESD1.12 + 1x ESD10 or 4x ESD6... - Page 5 Specifications ESD1.12 Specifications: System Acoustic Perfomance Max SPL Long-term 124dB Max SPL Peak 127dB -3dB Response 38Hz ÷ 150Hz Recommended Power 600W Sensitivity 97dB Impedance 4Ω Crossover Point 80Hz ÷ 150Hz Low Frequency Section Acoustic Design Twin Asymmetrical loading Number of Drivers Woofer Size / Voice Coil Diameter / Design 12"...
-
Page 6: Drawing
Drawing... -
Page 7: Esd1.15
Overview ESD1.15 ESD1.15 Application: KVV 987 241 Description: Connection: SUBWOOFER 600Watts SUBWOOFER 600Watts AUTO RESET PROTECTION AUTO RESET PROTECTION PARALLEL INPUTS PARALLEL INPUTS 4 Ohms 4 Ohms + (1+, 2+) SERIAL NUMBER + (1+, 2+) + (1+, 2+) SERIAL NUMBER + (1+, 2+) PARALLEL CONNECTION OF THE ESD1.15 (4Ω) - TOTAL IMPEDANCE 2Ω... -
Page 8: Specifications
Specifications ESD1.15 Specifications: System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 130dB -3dB Response 37Hz ÷ 150Hz Recommended Power 600W Sensitivity 99dB (half-space area) Impedance 4Ω Crossover Point 80Hz ÷ 150Hz Low Frequency Section Twin Asymmetrical loading Acoustic Design Number of Drivers Woofer Size / Voice Coil Diameter / Design 15"... -
Page 9: Drawing
Drawing 519.5... -
Page 10: Overview
8 Ohms + (1+, 2+) + (1+, 2+) + (1+, 2+) + (1+, 2+) SERIAL NUMBER SERIAL NUMBER PARALLEL CONNECTION OF THE ESD1.18 (8Ω) FROM THE BRIDGED ESP4000 - TOTAL IMPEDANCE 4Ω Configurations example: ESD1.12 + 1x ESD10 or 4x ESD6... -
Page 11: Specifications
Specifications ESD1.18 Specifications: System Acoustic Perfomance Max SPL Long-term 131dB Max SPL Peak 134dB -3dB Response 30Hz ÷ 150Hz Recommended Power 1000W Sensitivity 100dB Impedance 8Ω Crossover Point 80Hz ÷ 150Hz Low Frequency Section Twin Asymmetrical loading Acoustic Design Number of Drivers Woofer Size / Voice Coil Diameter / Design 18"... -
Page 12: Drawing
Drawing... -
Page 13: Accessories
Accessories POLE MOUNT PART NAME: KV2-H, Speaker pole - universal PART NUMBER: KVV 987 130 SPEAKER CABLES PART NAME: 1m - round flexible speaker cable, PART NAME: cross section 2 x 1.5mm SPEAKON NL4 PART NUMBER: PART NUMBER: KVV 987 250 KVV 987 240 ESD, Speakon NL4 wiring positive pin... -
Page 14: Warranty, Service
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer. - Page 16 The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.
