  • Page 3: Table Of Contents

    Airmotiv LCR1 ........................ 11 Airmotiv E1 ........................12 Quick Start ........................13 Speaker Placement ...................... 14 Connections ........................16 Care and Maintenance ....................17 Emotiva Audio Corporation Five-Year Limited Warranty ....... 18 Accessories ........................21 Notes ..........................21 Page 1...
  • Page 4 AIRMOTIV SPEAKERS Page 2...

  • Page 5: Introduction

    Airmotiv speakers include removable, magnetically-attached, grilles. All of the speakers in our new Airmotiv series are carefully timbre-matched, so you can feel free to mix and match whichever models are most appropriate to your particular installation requirements.

  • Page 6: About This Manual

    This manual will provide you with all the information you need to achieve great performance, accurate sound, and many years of reliable service from your Airmotiv speakers. We suggest that you read through the entire manual; we kept things as short and direct as possible.

  • Page 7: Features

    Airmotiv speakers will deliver clean, uncolored, properly balanced sound with very low distortion and outstanding rendition of even the finest details. All of the speakers in the Airmotiv series were carefully timbre matched to work well together, and to deliver a cohesive audio image in any stereo or surround sound installation.

  • Page 8: Unpacking

    Avoid pressing directly on the front of the drivers or dropping any bits of packing material into the port opening. It is important to save the box and all packing materials in case your Airmotiv speakers ever need to be moved or shipped back to the factory for service.

  • Page 9: Emotiva Airmotiv Speakers

    They may be stand mounted, or placed on a bookshelf or table. The Airmotiv LCR1 was designed to be wall mounted. A full set of LCR1’s can be used to create a truly impressive home theater system, or they may be used as front main speakers in conjunction with the smaller Airmotiv E1.

  • Page 10: Airmotiv T1

    32mm Airmotiv folded ribbon tweeter, a 5-1/4” woven fiber midrange, and dual 6” woven fiber woofers. The Airmotiv T1 can be used in an audiophile stereo setup, or as a main front speaker in a home theater installation, or you could use Airmotiv T1’s “all around”...

  • Page 11: Airmotiv B1

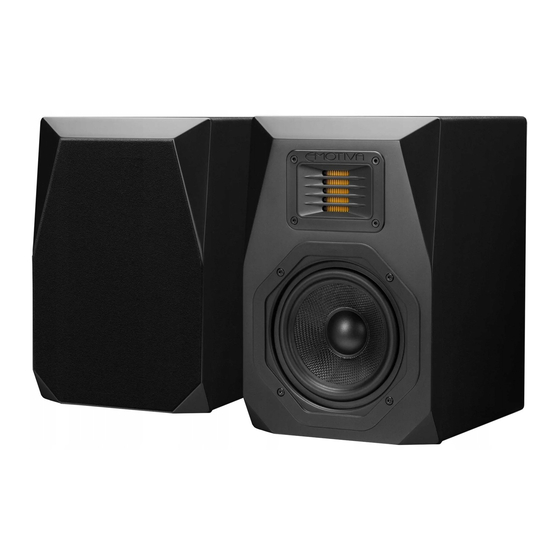

    The Airmotiv B1 is a two way, bookshelf monitor loudspeaker, featuring a 32mm Airmotiv folded ribbon tweeter and a 5-1/4” woven fiber woofer. The Airmotiv B1 is ideal for use in a small, high-quality two-channel system, and also works well as a home theater speaker in systems where you prefer not to use wall-mounted speakers.

  • Page 12: Airmotiv C1

    The Airmotiv C1 is a three way center channel loudspeaker, featuring a 32mm Airmotiv folded ribbon tweeter, a 3” woven fiber midrange, and dual 5-1/4” woven fiber woofers. The Airmotiv C1 is designed to be used as a center channel speaker in high end home theater installations.

  • Page 13: Airmotiv Lcr1

    The Airmotiv LCR1 is a two way, wall mounted loudspeaker, featuring a 25mm Airmotiv folded ribbon tweeter and dual 4” woven fiber woofers. A full set of Airmotiv LCR1’s can be used to build a completely “zero footprint” wall mounted home theater system, or LCR1’s can be used as surround speakers in...

  • Page 14: Airmotiv E1

    AIRMOTIV SPEAKERS Airmotiv E1 The Airmotiv E1 is a two way, wall mounted loudspeaker, featuring a 32mm Airmotiv folded ribbon tweeter and a 4” woven fiber woofer. The Airmotiv E1 makes an ideal surround speaker for any home theater system, and is an especially good match for our LCR1 wall mounted speakers.

  • Page 15: Quick Start

    To get the most from your Emotiva Airmotiv speakers, we urge you to read the entire manual. If you just can’t wait to hear how great your Airmotiv speakers sound, this section will cover the basics you need to get started.

  • Page 16: Speaker Placement

    The Airmotiv T1 towers are intended to stand directly on the floor (with the carpet spikes or rubber feet), and should not be placed on top of other objects, stands, or furniture. The Airmotiv B1 bookshelf monitors are intended to be positioned on speaker stands, tables, or shelves.
  • Page 17 AIRMOTIV SPEAKERS • If bookshelf speakers like the Airmotiv B1 are placed on a table or shelf, they will usually sound best if positioned at the front edge of the shelf (so sound doesn’t reflect from a flat surface directly in front of them). If they must be placed towards the rear of a deep shelf, consider covering the surface directly in front of them with a felt pad or towel.

  • Page 18: Connections

    If you plan to bi-amp or bi-wire your Airmotiv T1 or Airmotiv C1 speakers, be sure to remove the jumpers between the two sets of speaker terminals on the rear of the speaker before connecting your amplifier(s).

  • Page 19: Care And Maintenance

    • If something nasty does get on the sides or top of your Airmotiv speaker, use a rag dampened with a weak solution of dish detergent or other mild cleaning liquid, followed by a rag dampened with plain water, and then dry with a clean rag.

  • Page 20: Emotiva Audio Corporation Five-Year Limited Warranty

    The original owner must make a claim within the Term of the Warranty. A claim shall not be valid (and Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not made in strict compliance with the requirements of the “How do you get service?”...
  • Page 21 If your Product was not adequately packaged, we will refuse receipt and the damaged package will be returned to you at your cost. If you do not have the original Emotiva Audio packaging, please check with our sales department to purchase replacement-shipping cartons.
  • Page 22 If you purchased your Emotiva Product outside of the USA and wish to have it serviced at the factory, all freight charges are your responsibility. If you do not have an authorized distributor or repair center in your country, your Product must come back to the Emotiva USA factory for warranty service.

  • Page 23: Accessories

    Accessories Using high-quality speaker cables and audio interconnects will ensure that you get the best sound quality and maximum reliability from your Emotiva Airmotiv speakers. Emotiva Audio offers high-quality speaker cables and audio interconnects that feature solid engineering, premium build quality, excellent performance, and reasonable cost.
