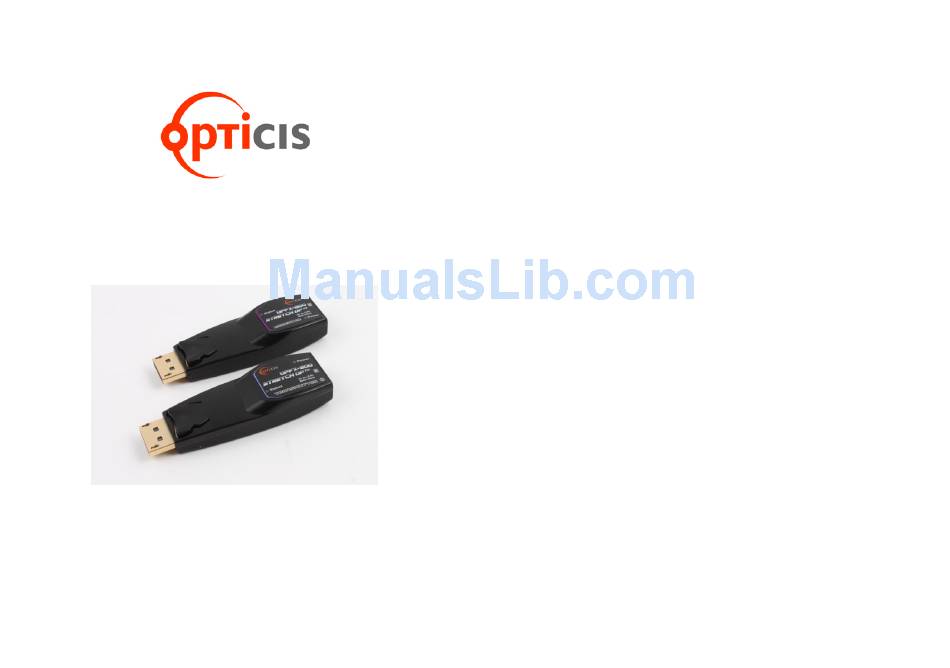

Two (2) fibers Detachable
DisplayPort 1.2 Extender
User's Manual for the
DPFX-200-TR
Doc No. : OE-DP160105 / Rev1.0
Manual Contents
__________________________________________
Manual Contents
Pictorials
Figure 1 - Overall Connection of DPFX-200-TR
Figure 2 - Position of the LED
Figure 3 - Fiber numbering & Caution on both fiber ports
Figure 4 - Connection of optical fiber
1-0 Manual Contents
1-0
1-1
1-2
1-3
1-5
1-6
1-7
1-8
1-9
1-1
1-3
1-3
1-4
