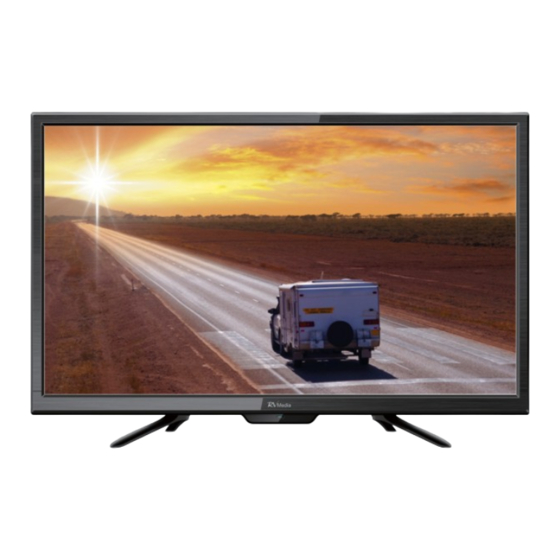

- Page 1 12/24/240V HD LED TV/DVD/USB Combo ") 043524 28 Instruction Manual...
-
Page 2: Table Of Contents
Contents Important Safety Instructions What’s in the Box TV Controls/Installation Base bracket installation TV Inputs and Outputs SYSTEM CONNECTIONS AV Input PC Input HDMI Input YPbPr Component Input COAXIAL Output USB Input Antenna Connection First time use 12-14 Remote Control 16-18 OSD MENU OPERATION Source Selection... -
Page 3: Important Safety Instructions
• Do not change or modify the TV set in any way. Only use the attachments/ HD LED TV accessories specified. Part Number: 043524 INPUT DC 12V 5A 34W • Do not cover the ventilation openings with items such as newspapers, tablecloths, curtains etc., as this could impede ventilation. -
Page 4: What's In The Box
• Do not put any objects filled with liquids, such as vases, on top of the TV set. • Do not place any naked flame sources, such as lighted candles, on top of the TV. 12/24/240V FHD LED TV/DVD/USB Combo Remote Control 043524 28 ") Instruction Manual Manual... -
Page 5: Tv Controls/Installation
TV Controls Base bracket installation INPUT MENU VOL+ Screws Screw hole C Screw hole A VOL- STANDBY Screw hole B Screw hole D Controls on the TV After you load a disc, press to play the disc, and press twice to pause. Instructions: Press the button when the power is on the disc will eject, Press the... -
Page 6: System Connections
System Connection System Connection NOTE: Please, make sure the inputs and outputs have firm connections before 3. HDMI INPUT connecting power. HDMI input: Use the SOURCE button on the remote control to select HDMI. 1. COMPOSITE AV INPUT Audio/video input: Use the SOURCE button to select AV on the TV. Source eg. -
Page 7: Coaxial Output
System Connection System Connection 5. COAXIAL OUTPUT 7. Antenna connection Allows connection of Digital audio systems and Surround Sound. Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly Antenna lead with 75 ohm male PAL Connector 75ohm coaxial cable COAXIAL Antenna cable... -
Page 8: First Time Use
First Time Use First Time Use cont’d Auto Installation Step 3: Set up the Menu Language Select your desired language from the options. English should be set as the default If this is the first time you are turning on the TV and there are no programs stored in the TV langrage. - Page 9 First Time Use cont’d Step 5: TV Connection “Air” is the default setting for this option and should not be changed. Step 6: Auto Search IMPORTANT NOTE. Please make sure your TV Antenna is connected and correctly orientated before completing this step. For most Australian applications, select “DTV”...
-
Page 10: Remote Control
Remote Control Unit Button Description POWER Turns the TV on or off to standby mode. Press to mute the sound. Press again to regain sound. POWER MUTE MUTE Press 0‐9 to select a TV channel directly. The cannel will 0‐9 change after 2 seconds. -
Page 11: Osd Menu Operation
OSD Menu Operation Button Description Switches the Teletext window to the background; only the Source Selection CANCEL current page no is visible. Press the SOURCE button to display the input source list. Sets the transparency of Teletext window. Input Press the ▼/▲ buttons to select the input source you want DVD: Repeat mode selection. -
Page 12: Picture
OSD Menu Operation OSD Menu Operation Picture Menu Press ▲/▼ buttons to select the option that you want to adjust in the Picture menu, Press the MENU button to display the main menu. and then press ENTER button or ► button to select. Press ▼/▲... -
Page 13: Sound
OSD Menu Operation OSD Menu Operation Sound Menu AVL (Auto Volume Level) Press ▲/▼ buttons to select AVL, then press the ENTER or ► button to enter and press ▲/▼ Press the MENU button to display the main menu. Press ▲/▼ buttons to select Sound in the main menu, then press the ENTER button buttons to select ON or OFF. - Page 14 OSD Menu Operation OSD Menu Operation Channel Menu Cont’d Favorite Management Press ▲/▼ buttons to select Favorite Manager, then press the ENTER or ► button to enter. Press the RED button to set the current channel to lock (block the channel), if the current channel already locked, press the RED button again to cancel the lock.
-
Page 15: Feature
OSD Menu Operation OSD Menu Operation Auto Search cont’d Feature Menu Press ▲/▼ buttons to select All, Digital, Analogue, then press the ENTER or ► button to select. Press the MENU button to display the main menu. NOTE: For most RV applications in Australia, you will only need to search the DTV Channels. Press ▲/▼... - Page 16 OSD Menu Operation OSD Menu Operation Lock Channel (Block Channel) OSD Language Press ▲/▼ buttons to select Lock Channel, then press ◄/► keys to select off or on. Press ▲/▼ buttons to select OSD Language, then press the ENTER or ► button to enter the Then press the ENTER or ►...
-
Page 17: Setup
OSD Menu Operation OSD Menu Operation Feature Menu Cont’d Setup Menu PVR/Timeshift Press the MENU button to display the main menu. Press the MENU button to display the main menu. Press ▲/▼ buttons to select Setup in the main menu, then press ENTER or ► to enter. Press ▲/▼... -
Page 18: Remote Control Functions
Remote Control Functions Remote Control Functions Channel List Subtitle Press the LIST button on the remote control to display the channel list menu. Press subtitle button on the remote control, the subtitle menu will appear as follows: ▲/▼ Press buttons to select ENG for English Subtitles, then press the ENTER button to display subtitles in English. -
Page 19: Pvr
EPG Functions PVR TV Recording Functions Press the RED button to switch between EPG weekly mode and EPG daily mode. PVR Recording (DTV Only) ● 1. Displays the current channel No. and channel name. Press the button on the remote to record the current DTV program. Please ensure a USB drive with available space is inserted. -
Page 20: Media Operation
Media Operation Media Operation Press the “MEDIA” button on the remote control to access this menu. You can also access Thumbnails this menu by selecting “MEDIA” as a Source on the remote Control. Thumbnails mode can be shown only in photo mode and highlighted in file browser by Press the ◄... -
Page 21: Music
Media Operation Media Operation Music Playback Movie Formats Supported Formats Supported LPCM Type Container Video Decoder MUSIC WAVE ADPCM MPEG-4 ASP WMA STD H.264 WMA Prof MOVIE DivX AAC-LC / HE-AAC Xvid E-AC3 WMV 9 / VC - 1 MPEG-4 SP MPEG AAC-LC MJPEG... -
Page 22: E-Book
Media Operation Media Operation Formats Supported Cont’d Movie Playback Press ▼/▲ buttons to select the folder on the USB device that you want to view, Press the ENTER button to select the sub folder if required. MPEG-4 ASP QuickTime H.264 MJPEG WMV3 / WVC1 MP4S / M4S2... - Page 23 Built-in DVD Player Operation Built-in DVD Player Operation (Cont.)
-
Page 24: Built-In Dvd Player Operation
Built-in DVD Player Operation Built-in DVD Player Operation (Cont.) (Cont.) DVD SETUP OPTIONS - - Preference Page - - - - Preference Page - - TV Type TV Type NTSC NTSC - - General Setup Page - - - - General Setup Page - - Audio Audio Subtitle... - Page 25 Built-in DVD Player Operation(Cont.) Built-in DVD Player Operation(Cont.) Title Search [DVD] Subtitle language [DVD] Press [GOTO], then press the number buttons to enter the desired title number. If the DVD you are watching has subtitles, press [SUBTITLE] repeatedly during Repeat Playback playback until the desired subtitle language appears on the TV screen.
-
Page 26: Cleaning And Maintenance
Troubleshooting Cleaning and Maintenance WARNING! For your personal safety, be sure to disconnect the power adaptor before proceeding with any maintenance or cleaning. Cleaning the TV screen • Do not touch the TV screen with sharp objects. • Use a clean, soft cloth to wipe off any dust and fingerprints from the TV screen surface. -
Page 27: Troubleshooting
Troubleshooting Specifications (Cont.) 043524 28" (70cm) 1366 x 768 3000:1 2 x 10W 160(H) x 170(V) 643 x 80 x 390mm 643 x 179 x 434mm *As RV Media continually strives to improve its products, Specifications may be VESA 200 x 100 subject to change without notice.
