1-5. Mechanical Deck Removing and Mounting Method

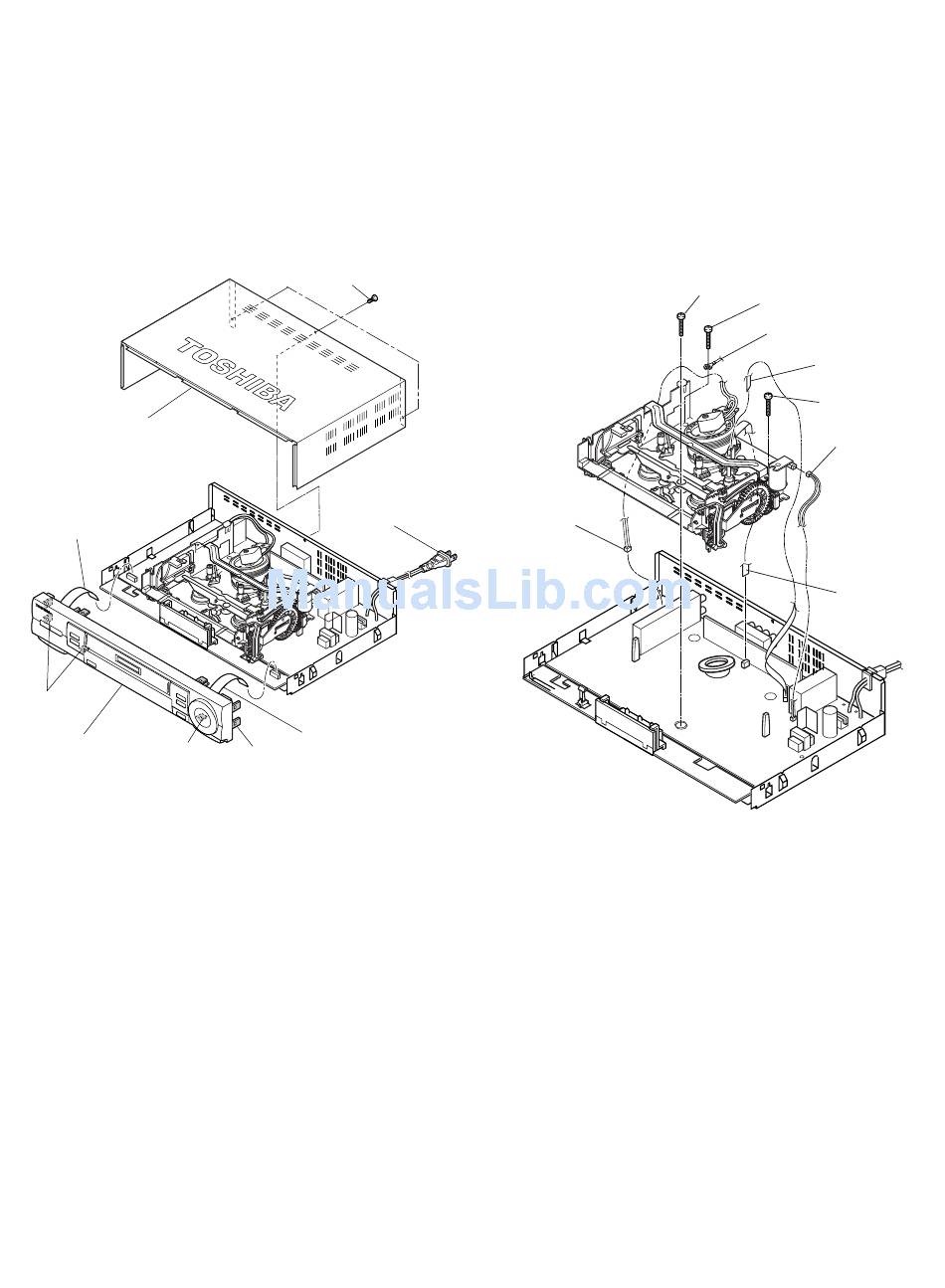

1-5-1. Cabinet Removal
1. Unplug the power supply plug (1) from the outlet.
2. Remove the three screws (3) securing the Top cover
(2).
3. Pull the Top cover (2) backwards for removing.
4. Disconnect the two FFC (4) flexible flat cables.
5. Release the four claws (A) of the front panel (5) and
detach the front panel (5).
Top cover (2)
FFC (4)
Claw(A)
Front panel (5)
Claw (A)
Screws (3)
Power Supply
Plug (1)
FFC (4)
Claw (A)
Fig. 1-5-1
1-5-2. Mechanical Deck Removal
1. Remove the cabinet. (Refer to section 1-5-1, Cabinet
Removal.)
2. Disconnect the connectors (A) and (B).
3. Disconnect the FFC (C) and FFC (D).
4. Remove the screw (1) to remove the grounding wire
(2).
5. Remove the two screws (3) and lift off the mechanical
deck upwardly.
Screws (3)
Connector (B)
Fig. 1-5-2
Screws (1)
Lug terminal (2)
FFC (D)
Screws (3)
Connector (A)
FFC (C)
