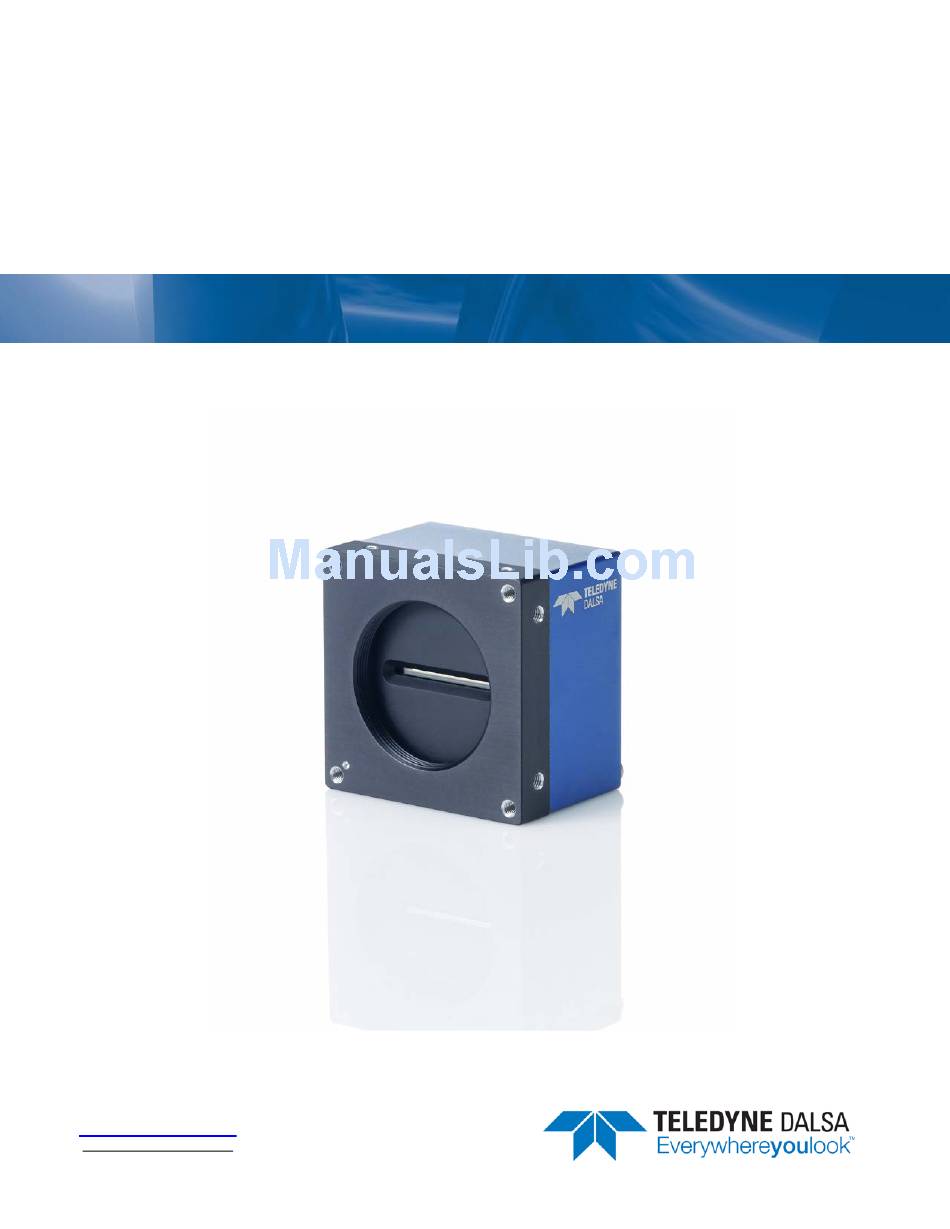

Linea
GigE
Camera User's Manual
Monochrome CMOS Line Scan
sensors | cameras | frame grabbers | processors | software | vision solutions
P/N: 03-032-20219-01
www.teledynedalsa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Linea GigE 2K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne Linea GigE 2K

Summary of Contents for Teledyne Linea GigE 2K

  • Page 1 ™ Linea GigE Camera User’s Manual Monochrome CMOS Line Scan sensors | cameras | frame grabbers | processors | software | vision solutions P/N: 03-032-20219-01 www.teledynedalsa.com...
  • Page 2 All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from Teledyne DALSA.

  • Page 3: Table Of Contents

    Contents LINEA™ GIGE SERIES OVERVIEW ..............5 ....................5 ESCRIPTION Linea GigE Application Advantages ............6 Linea GigE with TurboDrive ..............6 Linea GigE Firmware ................6 ............7 UMBERS AND OFTWARE EQUIREMENTS ............ 8 ISION APERA PPLICATION ESCRIPTION ..............9 AMERA PECIFICATIONS VERVIEW...
  • Page 4 Camera Power-up Configuration ..............30 User Set Configuration Management .............. 30 ................31 ENSOR ONTROL ATEGORY Sensor Control Feature Descriptions ............31 Gain and Black Level Control Details ............32 Exposure Controls Details ..............33 Internal Programmable Exposure ..............33 External Programmable Exposure ..............
  • Page 5 DHCP (Dynamic Host Configuration Protocol) ........... 97 Persistent IP ..................98 TECHNICAL SPECIFICATIONS ..............100 ................ 100 ECHANICAL PECIFICATIONS Linea GigE 8k ..................100 Linea GigE 2k and 4k ................101 ...... 102 DDITIONAL OTES ON INEA DENTIFICATION AND ECHANICAL ..............
  • Page 6 ..............121 ENSOR ANDLING NSTRUCTIONS Electrostatic Discharge and the Sensor ..........121 Protecting Against Dust, Oil and Scratches ..........121 Cleaning the Sensor Window ............... 122 RJ45 E .............. 123 UGGEDIZED THERNET ABLES TROUBLESHOOTING .................. 124 ....................124 VERVIEW Problem Type Summary ..............124 Verifying Network Parameters ..............

  • Page 7: Linea™ Gige Series Overview

    & frame triggers, image transfer-on-demand, all part of a comprehensive camera package. Linea GigE combine standard gigabit Ethernet technology (supporting GigE Vision 1.2) with Teledyne DALSA Trigger-to-Image-Reliability, to dependably capture and transfer images from the camera to the host PC. Linea™ GigE Series Overview • 5...

  • Page 8: Linea Gige Application Advantages

    Camera Link throughput on a GigE network. Linea GigE Firmware Firmware updates for Linea GigE are available for download from the Teledyne DALSA web site [http://www.teledynedalsa.com/imaging/support/downloads/firmware/]. Choose Linea GigE Firmware from the available download sections, then choose the zip file download specific to your camera model.

  • Page 9: Part Numbers And Software Requirements

    Part Numbers and Software Requirements This manual covers the Linea GigE models summarized below. New models area added to this manual as they are released by Teledyne DALSA. See “Camera Specifications” on page 9 for details of each Linea GigE model.

  • Page 10: Gige Vision Sapera Application Description

    GenICam™ specification. For more information see www.genicam.org. www.genicam.org. The Teledyne DALSA GigE Vision Module provides a license free development platform for Teledyne DALSA GigE hardware or Sapera vision applications. Additionally supported are Sapera GigE Vision applications for third party hardware with the purchase of a GigE Vision Module license, or the Sapera processing SDK with a valid license.

  • Page 11: Camera Specifications Overview

    Camera Specifications Overview Camera Controls Synchronization Modes Free running, External triggered, Software trigger through Ethernet Exposure Modes Programmable in increments of 1µs minimum (in µs) is model specific maximum is 3 milliseconds Pulse controlled via Trigger pulse width. Trigger Inputs RS422, and 3.3V to 24V typical (used as Line or Frame triggers) Debounce range from 0 up to 255 µs...

  • Page 12: Compliance, Emi Certifications

    Power Dissipation < 6 W (2K/4K), <7.5W (8K) Operating Temperature 0 to 65°C at front plate Relative Humidity 5% to 90% non-condensing (operating) Output Data Configuration Gigabit Ethernet with PAUSE Frame support (as per IEEE 802.3x) Data and Control GigE Vision compliant Compliance, EMI Certifications Compliance Directives Standards ID...

  • Page 13: Sensor Performance

    Sensor Performance: The sensor description below provides a specification table and response graphics. The graph describes the sensor response to different wavelengths of light (excluding lens and light source characteristics). Visible light spans wavelengths between about 390 - 780 nanometers. Wavelengths below 390 nm are termed ultra-violet while those above 780 nm.

  • Page 14: Spectral Responsivity

    Spectral Responsivity: Effective Quantum Efficiency: The quantum efficiency graph describes the fraction of photons at each wavelength that contribute charge to the pixel. 12 • Linea™ GigE Series Overview Linea GigE Series Camera...

  • Page 15: Connecting The Linea Gige Camera

    When adding a NIC adapter to a computer, Teledyne DALSA engineering has seen cases where a PCI Express bus Gigabit NIC has better overall performance than the same NIC hardware in PCI bus format.

  • Page 16: Connectors

    • computer Gigabit NIC. See "Ruggedized RJ45 Ethernet Cables" on page 123 for secure cables. A HD15 connector for camera power, plus trigger, strobe and general I/O signals. Teledyne • DALSA provides an optional breakout cable See Mating GPIO Cable Assembly. See “HD15 type Connector Details”...

  • Page 17: Led Indicators

    LED Indicators The Linea GigE has one multicolor LED to provide a simple visible indication of camera state and the RJ45 Ethernet connector has two LEDs for network status conditions. These are described below. Network Status Indicators The Linea GigE RJ45 Ethernet connector has two LEDS which display standardized information, defined as follows: Ethernet Connector LEDs Color...

  • Page 18: Led States On Power Up

    IP address. The DHCP server then provides the IP address. The Teledyne DALSA Network Configuration tool, installed with the Teledyne DALSA Network Imaging Package, provides a DHCP server which is easily enabled on the NIC used with the Linea GigE (refer to the Teledyne DALSA Network Imaging Package user's manual).

  • Page 19: Preventing Operational Faults Due To Esd

    Preventing Operational Faults due to ESD Linea GigE camera installations which do not protect against ESD (electrostatic discharge) may exhibit operational faults. Problems such as random packet loss, random camera resets, and random loss of Ethernet connections, may all be solved by proper ESD management. The Linea GigE camera when used with a simple power supply and Ethernet cable, is not properly connected to earth ground and therefore is susceptible to ESD caused problems.

  • Page 20: Using Linea Gige With The Sapera Api

    Linea GigE also can connect through a Gigabit Ethernet switch. When using VLAN groups, the • Linea GigE and controlling computer must be in the same group (refer to the Teledyne DALSA Network Imaging Package user's manual). If Linea GigE is to be used in a Sapera development environment, Sapera LT 7.50 needs to •...

  • Page 21: Procedure

    Contact Teledyne DALSA concerning the GigE Vision package supporting TurboDrive™ • technology. Optional: If the Teledyne DALSA Sapera LT SDK package is not used, click to install the Linea • GigE firmware and user manuals only. Follow the on screen prompts.

  • Page 22: Gige Server Verification

    GigE Server Verification After a successful Sapera GigE Vision package installation, the GigE Server icon is visible in the desktop taskbar tray area (note that in Windows 7 the icon remains hidden until a camera is connected). After connecting a camera (see following section), allow a few seconds for the GigE Server status to update.

  • Page 23: Optimizing The Network Adapter Used With Linea Gige

    Most Gigabit network interface controllers (NIC) allow user modifications to parameters such as Adapter Buffers and Jumbo Frames. The optimal settings will be system dependent. These should be optimized for use with the Linea GigE during the installation. Refer to the Teledyne DALSA Network Imaging package manual for optimization information.

  • Page 24: Quick Startup With Camexpert

    If the AcquisitionLineRate is reduced and/or frame buffer Height is increased, then you may need to increase the value for the GigE Vision Host Control feature “Image Timeout”. Refer to the Teledyne DALSA Network Imaging package manual if error messages are shown in •...

  • Page 25: About The User Defined Camera Name

    When using CamExpert, multiple Linea GigE cameras on the network are seen as different "Linea_M4096-7um_1” devices as an example. Non Teledyne DALSA cameras are labeled as “GigEVision Device”. Click on a device user name to select it for control by CamExpert.

  • Page 26: Operational Reference

    Operational Reference Using CamExpert with Linea GigE Cameras The Sapera CamExpert tool is the interfacing tool for GigE Vision cameras, and is supported by the Sapera library and hardware. When used with a Linea GigE camera, CamExpert allows a user to test most of the operating modes.
  • Page 27 Device Selector pane: View and select from any installed GigE Vision or Sapera acquisition • device. After a device is selected, CamExpert will only present parameters applicable to that device. Optionally select a camera file included with the Sapera installation or saved by the user.

  • Page 28: Camexpert View Parameters Option

    Visibility level from the View ∙ Parameters Options menu. Creating a Camera Configuration File in the Host When using the Teledyne DALSA Sapera SDK – the CCF is created automatically via a save. • When using a 3 party SDK application, if that SDK supports GenAPI 2.4, then the process is...

  • Page 29: Camera Information Category

    In this category the number of features shown are identical whether the view is Beginner, Expert, or Guru. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
  • Page 30 Display Name Feature & Values Description Device Version & View Manufacturer Name DeviceVendorName Displays the device vendor name. (RO) 1.00 Beginner Model Name DeviceModelName Displays the device model name. (RO) 1.00 Beginner Manufacturer part number deviceManufacturerPartNumber Displays extended manufacturer part number 1.00 information about the device.
  • Page 31 Save Configuration UserSetSave Saves the current camera configuration to the user set 1.00 specified by the User Set Selector feature. The user Beginner sets are located on the camera in non-volatile memory. (W) Device Built-In Self Test deviceBIST Command to perform an internal test which will 1.00 determine the device status.

  • Page 32: Camera Configuration Selection Dialog

    SFNC Minor Rev DeviceSFNCVersionMinor Minor Version of the Standard Features Naming 1.00 Convention which was used to create the device's Invisible XML. (RO) SFNC SubMinor Rev DeviceSFNCVersionSubMinor SubMinor Version of the Standard Features Naming 1.00 Convention which was used to create the device's Invisible XML.

  • Page 33: Sensor Control Category

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.

  • Page 34: Gain And Black Level Control Details

    Beginner Monochrome Sensor Monochrome Sensor color type is monochrome. DFNC Sensor Width SensorWidth Defines the sensor width in active pixels. 1.00 < RO> Expert Sensor Height SensorHeight Defines the sensor height in active lines. 1.00 < RO> Expert Input Pixel Size pixelSizeInput Size of the image input pixels, in bits per pixel.

  • Page 35: Exposure Controls Details

    Exposure Controls Details Exposure Control modes define the method and timing of controlling the sensor integration period. The integration period is the amount of time the sensor is exposed to incoming light before the video line data is transmitted to the controlling computer. Exposure control is defined as the start of exposure and exposure duration.

  • Page 36: External Trigger Width Exposure

    External Trigger Width Exposure An alternative external trigger mode allows the external signal width to control the exposure duration (feature ExposureMode = TriggerWidth), as illustrated in the following graphic. Note the exposure delay of 12.7µs from the external exposure control. •...

  • Page 37: I/O Control Category

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.

  • Page 38: I/O Control Feature Descriptions

    I/O Control Feature Descriptions The following table describes these features along with their view attribute and minimum camera firmware version required. Additionally the Device Version column will indicate which parameter is a member of the DALSA Features Naming Convention (indicated by DFNC), versus the GenICam Standard Features Naming Convention (SFNC not shown).
  • Page 39 Counter1End Event Counter1End Select the Counter1End Event as the internal~ trigger source. Counter2End Event Counter2End Select the Counter2End Event as the internal trigger source. Timer1 Active Timer1Active Select the Timer1Active signal as the internal trigger source. Timer2 Active Timer2Active Select the Timer2Actuve signal as the internal trigger source.
  • Page 40 Rotary Encoder Rescaler rotaryEncoderRescalerOrder Specifies the order that the multiplier and divider 1.00 Order are applied. Guru DFNC Multiplier Divider multiplierDivider The signal is multiplied before been divided. Divider Multiplier dividerMultiplier The signal is divided before been multiplied. 1.00 Rotary Encoder Multiplier rotaryEncoderMultiplier Specifies a multiplication factor for the rotary DFNC...
  • Page 41 1.00 Line Mode LineMode Reports if the physical Line is an Input or Output Expert signal. (RO) See Input Signals Electrical Specifications. See Output Signals Electrical Specifications. Input Input The line is an input line. Output Output The line is an output line. 1.00 Input Line Detection Level lineDetectionLevel...
  • Page 42 Pulse on: Start of Acquisition PulseOnStartofAcquisition Generate a pulse when the AcquisiontStart event occurs Pulse on: End of Acquisition PulseOnEndofAcquisition Generate a pulse when the AcquisiontStop event occurs Pulse on: End of Timer 1 PulseOnTimer1End Generate a pulse on the TimerEnd 1 event. Pulse on: End of Timer 2 PulseOnTimer2End Generate a pulse on the TimerEnd 2 event.

  • Page 43: I/O Module Block Diagram

    1.00 Output Line Software outputLineSoftwareCmd Writing a value of 1 in the bit field applies the Expert Command Latch value of the outputLineSoftwareLatchControl DFNC and/or executes the PulseOnSoftwareCmd for any output line programmed for software control. The feature outputLineSoftwareCmd can take any binary value and each bit set to 1 corresponds to a Icommand for an Output.

  • Page 44: Trigger Overview

    Trigger Overview Linea GigE line exposures are initiated by a trigger event. A trigger is either the camera's programmable internal clock used in free running mode, an external input used for synchronizing exposures to external triggers, or a programmed function call message by the controlling computer.

  • Page 45: Trigger Source Types

    • If the number of lines within the frame active trigger is greater than the feature “Height”, the frame active trigger will produce more than one frame. • If the number of lines within the frame active trigger is less than the feature “Height”, the frame height is less than the feature “Height”.

  • Page 46: Output Line Details

    Output Line Details The general purpose output line signals either dedicated or shared with inputs. See HD15 type Connector Details for connector pinout and electrical information. Feature set: LineInverter (RW), outputLineSource (RW), outputLinePulseDelay (RW), • outputLinePulseDuration (RW), outputLineValue (RW), outputLineSoftwareCmd (RW), LineSelector (RW), LineFormat (RW), LineMode (RW), LineStatus (RO).

  • Page 47: Example Of Line Trigger Plus Frame Trigger Combined

    Example of Line Trigger plus Frame Trigger Combined An example setup the Line Trigger mode combined with Frame Trigger using the configurable internal timers is as follows: Set image "Height" as 80 • Select "TriggerSelector" as "SingleLineTrigger(Start)" • Set "TriggerMode" as "On" •...

  • Page 48: Counter And Timer Control Category

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
  • Page 49 Display Name Feature & Values Description Device Version & View 1.00 Counter Selector counterSelector Selects the counter to configure. Expert Counter 1 Counter1 Select counter 1 DFNC Counter 2 Counter2 Select counter 2 1.00 Counter mode counterMode Selects the counter mode. The selected Counter is Expert either Active or Disabled.
  • Page 50 1.00 Counter Incremental counterIncrementalSource Select the event source which increments the Expert Source counter. The Event Control section provides details DFNC and timing diagrams for the supported events. Counter is stopped. Acquisition Start AcquisitionStart Counts the number of Acquisition Start events. Acquisition End AcquisitionEnd Counts the number of Acquisition End events.
  • Page 51 Counter 1 End Counter1End Reset on the reception of the Counter 1 end. Counter 2 End Counter2End Reset on the reception of the Counter 2 end. 1.00 Counter Reset Input Line counterResetLineActivation Specify the edge transition on the selected line that Expert Activation will reset the selected counter.

  • Page 52: Counter And Timer Group Block Diagram

    Counter 2 End Counter2End Start Timer on Counter 2 End event. 1.00 Timer Line Activation timerStartLineActivation Select the trigger activation mode which starts the Expert timer. DFNC Rising Edge RisingEdge Starts counter on rising edge of the selected signal. Falling Edge FallingEdge Starts counter on falling edge of the selected signal.

  • Page 53: Example: Counter Start Source = Off

    Example: Counter Start Source = OFF CounterStartSource=OFF Countermode=Active Countermode=OFF CounterEnd Event Generated Counter Counter is CounterWait Counter is Counter Overflow IDLE Trigger Active Completed Counter is incrementing CounterStartSource=OFF CounterResetSource=OFF Counter Reset CMD CounterResetSource=Event CounterResetSource=CounterEnd The counter starts on the counterReset Cmd. •...

  • Page 54: Example: Counterstartsource = Event And Signal (Edge Base)

    Example: CounterStartSource = EVENT and Signal (Edge Base) CounterStartSource= EVENT and Signal (Edge Base ) Countermode=Active Countermode=OFF CounterEnd Event Generated Counter Counter is CounterWait Counter is Counter Overflow IDLE Trigger Active Completed Counter is incrementing CounterResetSource=OFF CounterStartSource= EVENT or Signal (Edge Base ) Counter Reset CMD CounterResetSource=Event (Itself) CounterResetSource=Event...

  • Page 55: Example: Counterstartsource = Line (Edge Base) Example 2

    Example: CounterStartSource = Line (Edge Base) Example 2 CounterStartSource= Line (Edge Base ) Example 2 Countermode=Active Countermode=OFF CounterEnd Event Generated CounterResetSource =CounterEnd(Itself) Counter STATUS Counter is CounterWait Counter Active Active Active Active IDLE Start Completed Counter Register CounterDuration=12 CounterStartSource= Line 1 CounterTriggerActivation= Falling Edge any Tick in...

  • Page 56: Advanced Processing Control Category

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
  • Page 57 Display Name Feature & Values Description Device Version & View 1.00 Flat Field Correction Mode flatfieldCorrectionMode Sets the mode for the Flat Field correction. Beginner Flat Field Correction is disabled. DFNC Active Active Flat Field Correction is enabled. Calibration Calibration When selected, the camera is configured for flat field correction calibration.
  • Page 58 1.00 Calibrate FPN flatfieldCalibrationFPN Performs Fixed Pattern Noise (FPN) calibration by Guru reducing to zero dark pixel current using a pixel DFNC offset. No Error NoError No Error Calibration Failed GenericError FPN calibration failed. Camera Busy BusyError The camera is busy and cannot perform the FPN calibration.

  • Page 59: Flat Field Correction Overview

    Flat Field Correction Overview The Flat Field correction function (FFC) consists of using two coefficients per pixel which correct the gain and offset of the corresponding pixel. These corrections compensate for Photo-response Non- uniformity (PRNU) and Fix Pattern noise (FPN), unique to each camera sensor. With CMOS sensors, it is imperative to perform FFC calibration under the same conditions the camera is to be used in.

  • Page 60: Important Factors About Flat Field Processing

    calibration is made while using an 8-bit buffer, then there will be missing coefficients if the user changes to a 12-bit acquisition. A Sapera application (such as CamExpert) creates a new SapBuffer object of the same width as the sensor but with twice the number of lines. This provides the room to store both offset and gain Flat Field data.

  • Page 61: How To Do A Ffc Setup Via Sapera Camexpert

    How to do a FFC Setup via Sapera CamExpert The Sapera LT CamExpert tool provides an easy GUI based method for a user to perform a Flat Field Calibration. The process first requires the user to plan acquisitions in dark and bright conditions, followed by the FFC process itself.

  • Page 62: Flat Field Correction Calibration Procedure

    Verify a Bright Acquisition Aim the camera at a diffused light source or evenly lit white wall with no shadows falling on it. Using CamExpert, click on the grab button and then the histogram button. Use the lens iris to adjust for a bright gray approximately around a pixel value of 200 (for 8-bit pixels).
  • Page 63 Flat Field Calibration Window The Flat Field calibration window provides a three step process to acquire two reference images and then save the flat field correction data for the Linea GigE used. To aid in determining if the reference images are valid, a histogram tool is provided so that the user can review the images used for the correction data.
  • Page 64 Setup the camera to capture a uniform dark image. Black paper with no illumination and the • camera lens’ iris closed to minimum can provide such a dark image. Or cover the lens with a black lens cap. Click on Acquire Black Image. The flat field calibration tool will grab video frames, analyze •...

  • Page 65: Using Flat Field Correction

    Parameters in black are user set in CamExpert or programmable via an imaging application Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.

  • Page 66: Cycling Preset Mode Control Feature Description

    Cycling Preset Mode Control Feature Description The following table describes these features along with their view attribute and device version. When a Device Version number is indicated, this represents the camera software functional group, not a firmware revision number. As Linea GigE capabilities evolve the device version will increase, therefore identifying the supported function package.
  • Page 67 Counter 2 End Counter2End Increment on Counter2 end. Timer1 End Timer1End Increment on Timer1 end. Timer2 End Timer2End Increment on Timer2 end. Valid Frame Trigger ValidFrameTrigger Increment on Valid Frame Triggers. End of Frame FrameEnd Increment on end of frames. Start of Acquisition AcquisitionStart Increment on start of Acquisition.
  • Page 68 V1.00 Output Line Source cP_OutputLineSource Selects which internal signal, or event driven pulse, Expert or software control state to output on the selected DFNC output line. Line output is Open Software Controlled SoftwareControlled The OutputLineValue feature changes the state of the output.

  • Page 69: Using Cycling Presets-An Example

    Using Cycling Presets—an Example As presented in this category’s overview, the cycling preset features allows setting up camera configurations that can change dynamically and repeatedly, with a minimum overhead. The features that change along with the trigger for the feature change are preprogrammed in the camera.
  • Page 70 The next steps show how to make changes to the camera and save those changes as additional cycling preset steps. Set cP_PresetConfigurationSelector to index 2. • • Set the feature cP_Gain to a higher value, increasing the acquisition brightness. • Repeat for index 3 with a Gain that’s higher again.

  • Page 71: Image Format Control Category

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
  • Page 72 Display Name Feature & Values Description Device Version & View 1.00 Pixel Format PixelFormat Contains all format information as provided by Beginner PixelCoding, PixelSize, PixelColorFilter, combined in one single value. Decimation must be Off. Monochrome 8-Bit Mono8 Mono8: Monochrome 8-Bit Monochrome 12-Bit Mono12 Mono12: Monochrome 12-Bit...
  • Page 73 In Digital Domain InDigitalDomain The Binning function can be done inside the device but with a digital processing function. Binning doesn’t affect the current data rate from the sensor or camera. 1.00 Binning Horizontal BinningHorizontal Number of horizontal photo-sensitive cells to Beginner combine together.
  • Page 74 Timestamp Timestamp Control the presence of the timestamp in the End-of-Line Metadata. This element is part of QWORD 3. Timer1 Value Timer1Value Control the presence of the timer1 value in the End-of-Line Metadata. This element is part of QWORD 4. Timer2 Value Timer2Value Control the presence of the timer2 value in...

  • Page 75: Pixel Size: Monochrome 12-Bit Packed

    Pixel Size: Monochrome 12-Bit Packed The standard 12-bit mode uses 2 bytes (16-bits) to transmit each pixel. Linea GigE supports a 12-bit packed mode which transmits 2 pixels with 3 bytes instead of the 4 bytes normally required. The packed format is illustrated below. The shared byte contains the LSBs of the two pixels—the MSBs contain the 4 LSBs of the second pixel (pixel 2) while the 4 LSBs contain the 4 LSBs of the first pixel (pixel 1).

  • Page 76: Internal Test Image Generator

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
  • Page 77 Display Name Feature & Values Description Device Version & View 1.00 Acquisition Status AcquisitionStatusSelector Selects the internal acquisition signal to read using Expert Selector AcquisitionStatus. Acquisition Trigger Wait AcquisitionTriggerWait Device is currently waiting for a trigger to capture one or more frames. Acquisition Active AcquisitionActive Device is currently doing an acquisition of one or...

  • Page 78: Acquisition Buffering

    Transfer Block Count TransferBlockCount Specifies the number of Data Blocks the device must 1.00 stream during the next transfer. Expert Transfer Queue Current transferQueueCurrentBlockCount Returns the current number of blocks in the transfer 1.00 Block Count queue. Expert Transfer Start TransferStart Starts the streaming of data Block(s) to another 1.00...
  • Page 79 • The host computer also has independent control of the host transfer module which allows the host application to optimize receiving image packets along with other tasks running on the host. Important: Under user controlled transfers, the feature TransferOperationMode sets the transfer •...

  • Page 80: Features That Cannot Be Changed During A Sapera Transfer

    Features that Cannot be Changed During a Sapera Transfer The following features cannot be changed during an acquisition or when a Sapera transfer is connected. Feature Group Features Locked During a Sapera Transfer CAMERA INFORMATION UserSetLoad SENSOR CONTROL I/O CONTROL COUNTER AND TIMER CONTROL ADVANCED PROCESSING CONTROL flatfieldCorrectionMode...

  • Page 81: Event Control Category

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.

  • Page 82: Event Control Feature Descriptions

    Event Control Feature Descriptions The following table describes these parameters along with their view attribute and minimum camera firmware version required. Additionally the Device Version column will indicate which parameter is a member of the DALSA Features Naming Convention (denoted by DFNC), versus the GenICam Standard Features Naming Convention (SFNC not shown).
  • Page 83 Line 3 Line3 Event sent on control channel when a state change occurs on line 3. Line 4 Line4 Event sent on control channel when a state change occurs on line 4. Line 3 Pulse Start Line3PulseStart Event sent on control channel when a pulse is generated on line 3.
  • Page 84 1.00 Acquisition Start Event EventAcquisitionStartTimestamp Timestamp of the EventAcquisitionStart event. Guru Timestamp (RO) 1.00 Acquisition End Event ID EventAcquisitionEnd Represents the event ID to identify the Guru EventAcquisitionEnd software Event. (RO) 1.00 Acquisition End Event EventAcquisitionEndTimestamp Timestamp of the EventAcquisitionEnd event. (RO) Guru Timestamp 1.00...
  • Page 85 1.00 Line3 Event Timestamp EventLine3Timestamp Timestamp of the Line3 event. Guru 1.00 Line 4 Data EventLine4Data Data of the line 4 event. Guru 1.00 Line 4 Event ID EventLine4 Represents the event ID to identify the Line4 Guru Event. 1.00 Line4 Event Timestamp EventLine4Timestamp Timestamp of the Line4 event.

  • Page 86: Gige Vision Transport Layer Feature Descriptions

    Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
  • Page 87 Display Name Feature & Values Description Device Version & View Device UPnP Auto-Discovery deviceUPnPDiscoveryMode Controls the operation mode for the UPnP 1.00 Mode Discovery function. Beginner UPNP Device will not broadcast its existence on the network and is not visible in the Windows network neighborhood.
  • Page 88 1.00 Primary Application IP GevPrimaryApplicationIPAddress Returns the IP address of the device Guru Address hosting the primary application. (RO) 1.00 Device Access Privilege deviceCCP Controls the device access privilege of an Guru Control application. DFNC Exclusive Access ExclusiveAccess Grants exclusive access to the device to an application.
  • Page 89 1.00 Interface Selector GevInterfaceSelector Selects which physical network interface to Invisible control. 1.00 Number Of Interfaces GevNumberOfInterfaces Indicates the number of physical network Invisible interfaces supported by this device. (RO) 1.00 Message Channel Count GevMessageChannelCount Indicates the number of message channels Invisible supported by this device.
  • Page 90 1.00 Persistent IP Supported GevSupportedIPConfigurationPersistentIP Indicates if Persistent IP is supported by Invisible the selected interface. This protocol is only suggested if the user fully controls the assignment of IP addresses on the network and a GigE Vision camera is connected beyond routers.

  • Page 91: Defaults For Devicepacketresendbuffersize

    1.00 GevSCPSDoNotFragment GevSCPSDoNotFragment This feature state is copied into the "do Invisible not fragment" bit of IP header of each stream packet. (RO) 1.00 Gev SCPS BigEndian GevSCPSBigEndian Endianess of multi-byte pixel data for this Invisible stream. (RO) 1.00 TLParamsLocked TLParamsLocked Flag to indicate if features are locked Invisible...
  • Page 92 With Windows Explorer, click on Network where the Linea GigE is shown as a camera network • device (see the following screen capture). Note that the discovery process is usually fast but may take up to 10 seconds (tested on a •...

  • Page 93: Accessing The Linea Gige File Memory

    • open a ftp client session, but currently there are no files distributed in the camera. Please go to the Teledyne DALSA support web site to download the latest Sapera LT and Linea GigE firmware. Using the Linea GigE File Memory Any or all of the Linea GigE file memory is usable by the user to store data.

  • Page 94: Gige Vision Host Control Category

    Linea GigE. The supported data files are for Linea GigE firmware updates and Flat Field coefficients. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
  • Page 95 User FlatField coefficients 2 FlatFieldCoefficients2 Select to read (download), write (upload) or delete the User flatfield coefficients 2. User FlatField coefficients 3 FlatFieldCoefficients3 Select to read (download), write (upload) or delete the User flatfield coefficients 3. User FlatField coefficients 4 FlatFieldCoefficients4 Select to read (download), write (upload) or delete the User flatfield coefficients 4.

  • Page 96: File Access Via The Camexpert Tool

    File Access via the CamExpert Tool Click on the “Setting…” button to show the file selection menu. • From the file type drop menu, select the file type that will be uploaded to the Linea GigE. This • CamExpert tool allows quick firmware changes or updates. •...

  • Page 97: Device Streaming Registers

    Device Streaming Registers Start – End Command Requirements Important: Every start command must have a corresponding end command. If not the camera can be in an unpredictable state. This pertains to DeviceRegistersStreamingStart, DeviceRegistersStreamingEnd, DeviceFeaturePersistenceStart, and DeviceFeaturePersistenceEnd. 1.00 Device Registers DeviceRegistersStreamingStart Announces the start of registers streaming without Invisible Streaming Start...

  • Page 98: Network Overview & Tools

    NIC will get a DHCP assigned IP address for the connected device but connections on the LLA IP address will be lost. The Teledyne DALSA Network Configuration Tool can enable the Teledyne DALSA DHCP server on the NIC used for the GigE Vision network.

  • Page 99: Dhcp (Dynamic Host Configuration Protocol)

    • function therefore a dedicated DHCP server is required. The Teledyne DALSA Network Configuration Tool can configure the Teledyne DALSA DHCP server on the NIC used for the GigE Vision network. The Teledyne DALSA DHCP server is recommended where there are multiple NIC ports with •...

  • Page 100: Persistent Ip

    If the Linea GigE camera is connected to a network with a different subnet, it cannot be • accessed. The Teledyne DALSA Network Configuration Tool is used to set a persistent IP address. Refer to • the Teledyne DALSA Network Imaging manual.
  • Page 101 Network Overview & Tools • 99 Linea GigE Series Camera...

  • Page 102: Technical Specifications

    Technical Specifications Mechanical Specifications Linea GigE 8k Note: Linea GigE 8k with M72x0.75 Lens Mount 100 • Technical Specifications Linea GigE Series Camera...

  • Page 103: Linea Gige 2K And 4K

    Linea GigE 2k and 4k Note: Linea GigE 2k/4k with M42x1 Lens Mount Technical Specifications • 101 Linea GigE Series Camera...

  • Page 104: Additional Notes On Linea Gige Identification And Mechanical

    Additional Notes on Linea GigE Identification and Mechanical Identification Label Linea GigE cameras have an identification label applied to the back side, with the following information: Model Part number Serial number MAC ID 2D Barcode CE and FCC logo “Made in Canada” Statement Additional Mechanical Notes Linea GigE supports a screw lock Ethernet cable (see Ruggedized RJ45 Ethernet Cables).

  • Page 105: Onnectors

    Camera Power – DC +12 to +24 Volts Mating GPIO Cable Assembly Teledyne DALSA optionally provides for purchase a GPIO breakout cable (HD15 Male to 26-Pos Euro Block) as shown in the following drawing. Use accessory number #AC-CA-00002-00-R when placing your order.
  • Page 106 104 • Technical Specifications Linea GigE Series Camera...

  • Page 107: Input Signals Electrical Specifications

    Input Signals Electrical Specifications External Inputs Block Diagrams Balanced RS422 Receive Mode INPUT (+) External Receive Input Signal INPUT (-) Signal Ground PIN 5 Termination Enable Single-Ended Logic Receive Mode 3.3V, 5V, 12V, 24V INPUT (+) External Receive Input Signal INPUT (-) not connected Signal Ground...
  • Page 108 External Input Electrical Characteristics RS422 Inputs Common Mode Input Voltage (V -25V min. 25V max. Differential Input Signal Threshold -25V ≤ V ≤ 25V (±200mV) Differential Input Signal Hysteresis = 0V Single-Ended Inputs Switching Voltage low to high high to low 3.3 V TTL 1.5 V 1.5 V...

  • Page 109: Output Signals Electrical Specifications

    Output Signals Electrical Specifications External Outputs Block Diagrams Balanced RS422 Drive Mode OUTPUT (+) Output Signal External Output Signal Output Enable OUTPUT (-) PIN 5 Signal Ground Single-Ended Logic Drive Mode 3.3V TTL OUTPUT (+) Output Signal External Output Signal Output Enable OUTPUT (-) not connected...

  • Page 110: Computer Requirements For Linea Gige Cameras

    Linea GigE cameras support the IEEE 802.3x pause frame flow control protocol automatically so that images from many cameras can be transmitted through the switch to the NIC efficiently, without data loss. As a working example, one such switch tested at Teledyne DALSA is the NETGEAR GS716T.

  • Page 111: Ethernet To Fiber-Optic Interface Requirements

    Ethernet to Fiber-Optic Interface Requirements In cases of camera-to-PC separations of more than 100 meters but an Ethernet switch is not desired, a fiber-optic media converter can be used. The FlexPoint GX from Omnitron Systems (www.omnitron-systems.com) converts GigE to fiber transmission and vice versa. It supports multimode (MM) fiber over distances of up to 220 m (720 ft.) and single-mode (SM) fiber up to 65 km (40 mi.) with SC, MT-RJ, or LC connector types.

  • Page 112: Ec & Fcc Declarations Of Conformity

    EC & FCC Declarations of Conformity 110 • Technical Specifications Linea GigE Series Camera...
  • Page 113 Technical Specifications • 111 Linea GigE Series Camera...

  • Page 114: Additional Reference Information

    Lens Mount Types Linea GigE 2k and 4k Linea GigE 2k and 4k cameras uses a M42x1 lens screw mount and optionally has adapters for F- mount (AC-LA-00115-A1-R ) and C-mount (AC-LC-00001-00-R) lenses, as described below. 112 • Additional Reference Information...

  • Page 115: M42X1 To Nikon F Bayonet Adapter (Ac La 00115 A1-R )

    M42x1 to Nikon F Bayonet Adapter (AC LA 00115 A1-R ) Nikon F Bayonet to M42x1 Adapter, 12mm BFD, HEAVY DUTY w/clip Additional Reference Information • 113 Linea GigE Series Camera...

  • Page 116: M42X1 To C-Mount Adapter (Ac-Lc-00001-00-R)

    M42x1 to C-Mount Adapter (AC-LC-00001-00-R) M42 to C-Mount Adapter, 12mm BFD 114 • Additional Reference Information Linea GigE Series Camera...

  • Page 117: Linea Gige 8K

    Linea GigE 8k Linea GigE 8k camera uses a M72x0.75 lens screw mount and optionally has adapters for F-mount (AC-LN-00001-A0-R ) lenses, as described below. M72x0.75 to F-Mount Adapter (AC-LN-00001-A0-R) M72 to F-Mount Adapter, 12mm BFD Additional Reference Information • 115 Linea GigE Series Camera...

  • Page 118: Lens Image Circle Illustration

    Lens Image Circle Illustration The graphic below illustrates the Linea GigE 2k/4k active sensor relative to the lens image circle. • The upper graphic compares the Linea GigE 4k relative to a Nikon FDX lens (using the optional F-mount adapter).
  • Page 119 For the Linea GigE 8k the image circle must envelop the width of the sensor (~58.010mm): Image Circle (minimum) Linea GigE 8k sensor 58.010mm M72 x 0.75 Inner Diameter (71mm) Additional Reference Information • 117 Linea GigE Series Camera...

  • Page 120: Additional Lens Parameters (Application Specific)

    Additional Lens Parameters (application specific) There are other lens parameters that are chosen to meet the needs of the vision application. These parameters are independent of the Linea GigE (assuming that the Lens Mount and Lens Sensor Size parameters are correct, as previously covered in this section). A vision system integrator or lens specialist should be consulted when choosing lenses since there is a trade off between the best lenses and cost.

  • Page 121: Optical Considerations

    Factors include the nature, speed, and spectral characteristics of objects being imaged, exposure times, light source characteristics, environmental and acquisition system specifics, and more. The Teledyne DALSA Web site, http://mv.dalsa.com/, provides an introduction to this potentially complicated issue. Click on Knowledge Center and then select Application Notes and Technology Primers.

  • Page 122: Lens Modeling

    Lens Modeling Any lens surrounded by air can be modeled for camera purposes using three primary points: the first and second principal points and the second focal point. The primary points for a lens should be available from the lens data sheet or from the lens manufacturer. Primed quantities denote characteristics of the image side of the lens.

  • Page 123: Sensor Handling Instructions

    Sensor Handling Instructions This section reviews proper procedures for handling, cleaning, or storing the Linea GigE camera. Specifically the camera sensor needs to be kept clean and away from static discharge to maintain design performance. Electrostatic Discharge and the Sensor Cameras sensors containing integrated electronics are susceptible to damage from electrostatic discharge (ESD).

  • Page 124: Cleaning The Sensor Window

    Cleaning the Sensor Window Even with careful handling, the sensor window may need cleaning. The following steps describe various cleaning techniques to clean minor dust particles to accidental finger touches. • Use compressed air to blow off loose particles. This step alone is usually sufficient to clean the sensor window.

  • Page 125: Ruggedized Rj45 Ethernet Cables

    Ruggedized RJ45 Ethernet Cables Components Express Inc. has available an industrial RJ45 CAT6 cable that on one end has a molded shroud assembly with top/bottom thumbscrews, while the other end has a standard RJ45. This cable is recommended when Linea GigE is installed in a high vibration environment. CAT6 certified (tested for near end / far end crosstalk and return All cables made in loss).

  • Page 126: Troubleshooting

    In multiple NIC systems where the NIC for the Linea GigE is using LLA mode, ensure that no • other NIC is in or switches to LLA mode. It is preferable that the Teledyne DALSA DHCP 124 • Troubleshooting Linea GigE Series Camera...
  • Page 127 When using multiple cameras connected to an VLAN Ethernet switch, confirm that all • cameras are on the same subnet setup on that switch. See the Teledyne DALSA Network Imaging package manual for more information. . • If a Linea GigE camera installed with other GigE Vision cameras can not connect properly with the NIC or has acquisition timeout errors, there may be a conflict with the third party camera's filter driver.

  • Page 128: Verifying Network Parameters

    Teledyne DALSA provides the Network Configuration tool to verify and configure network devices and the Linea GigE network parameters. See section Network Configuration Tool of the Teledyne DALSA Network Imaging manual, if there were any problems with the automatic Linea GigE software installation.

  • Page 129: Power Failure During A Firmware Update-Now What

    Minimum recommended Ethernet cable length is 3 feet (1 meter). Use the Log Viewer tool (see point below) to check on packet resend conditions. • Run the Sapera Log Viewer: Start•Programs•Teledyne DALSA•Sapera LT•Tools•Log • Viewer. Start the camera acquisition program, such as CamExpert. There should not be any "packet resend"...

  • Page 130: Acquisition Error Without Timeout Messages

    Streaming video problems range from total loss of image data to occasional loss of random video data packets. The following section describes conditions identified by Teledyne DALSA engineering while working with GigE Vision cameras in various computers and setups. See the Teledyne DALSA Network Imaging manual for information on network optimizations.

  • Page 131: Other Problems Or Issues

    Other Problems or Issues This section describes problems that do not fit any of the categories above. Typically these are issues found in the field under specific or unusual conditions. Buffer Incomplete Error Message This message is generated when the logical acquisition frame buffer takes longer to fill (line rate x frame buffer height) than the time set for the GigE Vision Host Control feature “Image Timeout”.
