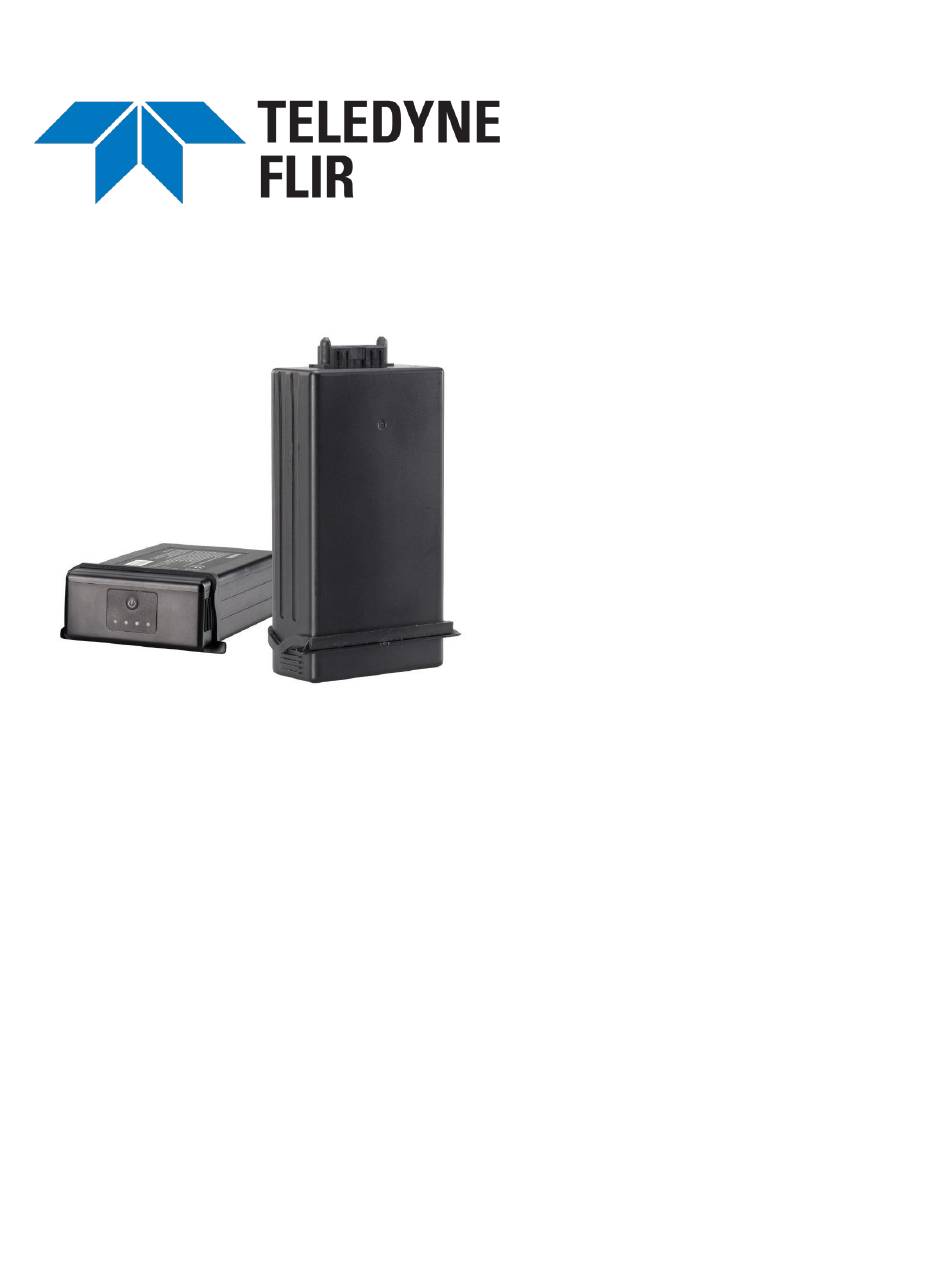

- Page 1 ™ SIRAS Battery Safety Instruction Guide 102-2069-42 G6.1 Series, Revision 4 January 30, 2023 ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011].
-
Page 2: Table Of Contents
Figure 2.A Button and LEDs on the Top of the Battery ....................5 Figure 3.A Battery Charger ............................9 Figure 3.B Charger Pins ............................10 ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. - Page 3 This is an informational notice, calling attention to an important detail. ☛ This is a tip that can improve your effectiveness in using the product. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011].
-
Page 4: Introduction
The batteries are identical except for these surface features, which ensure their proper orientation. FIGURE 1.A BATTERY ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 5: Indicator Lights And Control Button
LED1 to LED4, completing the Power-On action, after which the LED display will show the current power level. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 6: Interpreting The Battery Indicator Lights
○ ● ● ✹ 50%~62% ○ ● ● ● 63%~74% ● ● ● ✹ 75%~87% ● ● ● ● 88%~100% FLASH ○ OFF ● ✹ ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 7: Table 2-B Battery Leds During Charging
The charger has a different indicator lighting pattern—see Table 3-A Table 3-B. The battery level indicator lights will turn off after being fully charged (100%) for 10 minutes. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 8: Table 2-C. Leds Indicating Remaining Useful Life
○ ● ● 38%~49% ○ ○ ● ✹ 25%~37% ○ ○ ○ ● 13%~24% ○ ○ ○ ✹ Below 12% FLASH ○ OFF ● ✹ ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 9: Charging Instructions
Charge batteries in pairs. The two batteries should have charge levels within 5% of each other. Charge level differences greater than 5% can cause both batteries to wear more quickly and could diminish aircraft performance. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 10: Figure 3.B Charger Pins
9. Remove the batteries and store them in their storage unit or install and use them in the aircraft. 10. Do not store batteries in the aircraft—doing so will slowly drain them. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 11: Battery Charger Display Lights
○ ○ ○ Unmatched voltage ✹ of the balancing port and main port* ● ○ ○ ○ ○ Low voltage of AC ✹ power output* ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 12: Charger Performance As A Function Of Temperature
6⁰C~15⁰C (42⁰F~59⁰F) 1.2A Slow Charge 16⁰C~45⁰C (61⁰F~113⁰F) Normal 6A Charge 46⁰C~50⁰C (115⁰F~122⁰F) 1.2A Slow Charge > 50⁰C (122⁰F No Charge - Error LED will illuminate ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 13: Battery Management System (Bms)
50%, the battery will automatically discharge to 50% and then enter Deep Sleep mode. During the discharge process, the battery temperature may rise: this is normal. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 14: Storage
Check the battery monthly and recharge it fully if its charge level is 25% or less. A battery with less than 5% charge may sustain damage and lose its ability to be recharged. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 15: Handling, Disposal, And Warnings
When traveling by air, do not place batteries in checked baggage. Transporting in carry-on baggage is allowed (at the appropriate charge level). ⚠ Do not ship batteries by air. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 16: Warnings
0% and will sustain damage. 17. Keep the batteries away from children. If children swallow parts of the battery, seek medical assistance immediately. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. -
Page 17: Warning Labels
SIRAS Battery Safety Instruction Guide G6.1 Series, Revision 4 7. WARNING LABELS ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011]. - Page 18 (EMC). Any end-product intended for general consumer use that incorporates this device must be tested in accordance and comply with all applicable EU EMC and other relevant directives. ©2023 Teledyne FLIR LLC. All rights reserved. Approved for public release: Teledyne FLIR approved [FLIRGTC-SBA-011].
