Owner Instructions
Warning! Read instructions before using the machine

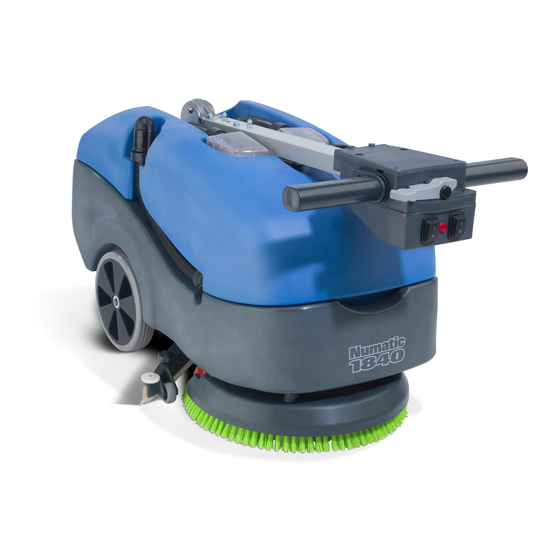

TT 1840
Scrubber Dryer
www.numatic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT 1840 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Numatic TT 1840

Summary of Contents for Numatic TT 1840

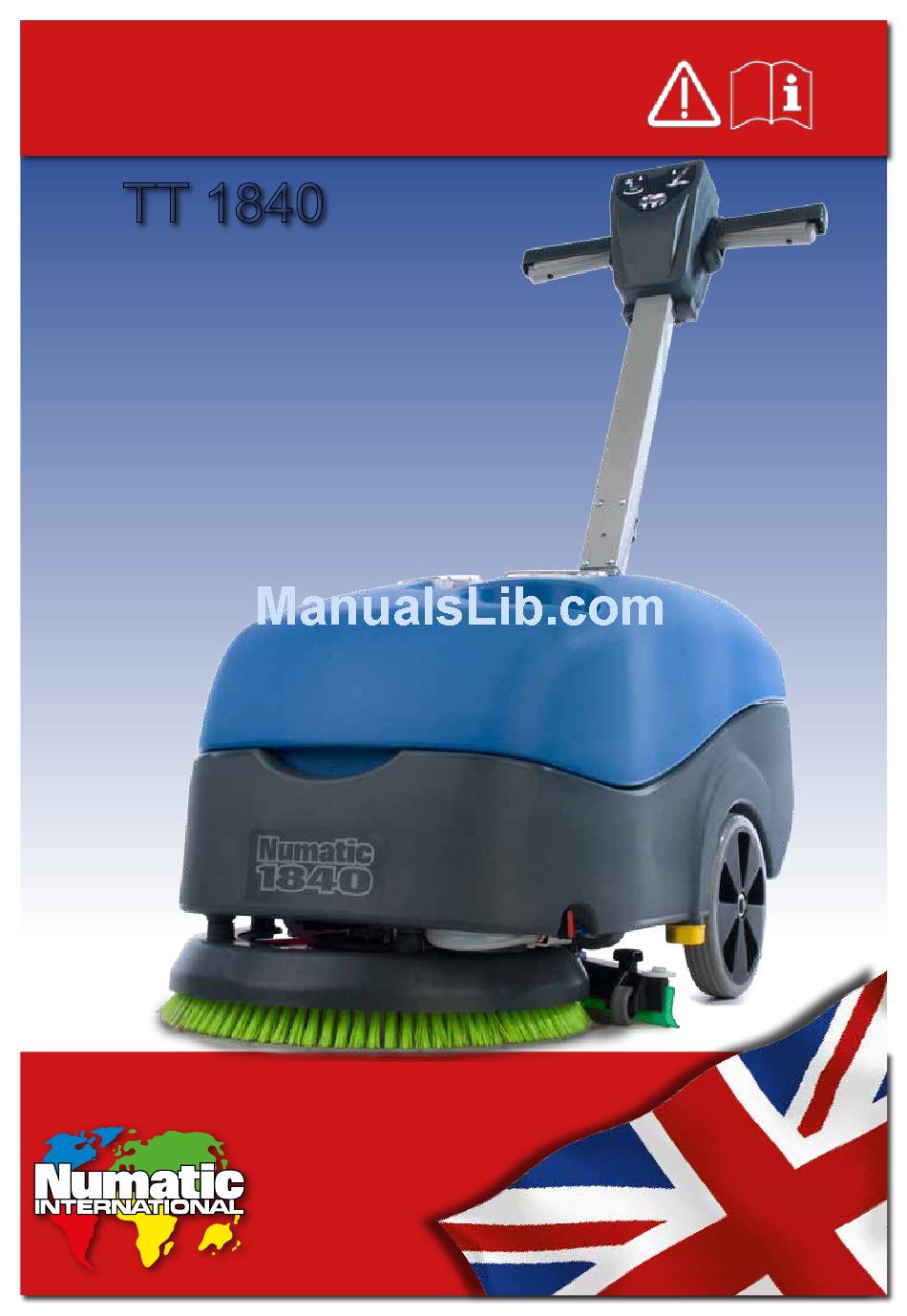

  • Page 1 Owner Instructions Warning! Read instructions before using the machine TT 1840 Scrubber Dryer www.numatic.com...

  • Page 2: Machine Overview

    Machine Overview 1. Operator control panel 12. Vacuum hose 2. On / Off Lever 13. Separator 3. Waste water tank 14. Clean-water filler cap 4. Clean water tank 15. Clean-water level indicator 5. Brush deck 16. Clean-water tank fill point 6.
  • Page 3 Quick Set-Up Guide Please read before commencing any operation. After the removal of all the packaging, carefully open and check the contents. Using the handle position lever, move the handle into the upright position. (Fig 1). Tip the machine. (see Page 4) Fit the Brush / Pad (Fig 2).

  • Page 4: Machine Setup

    Machine Set-Up Tipping the Machine Fitting the brushes Featuring the Nulock brush system. The brush is fitted simply by pushing and twisting to lock in place, making fitting and removal a simple process. Only use manufacturer supplied brushes. This machine requires a 400mm brush or a 360mm pad. Slide the brush / pad under the brush deck (Fig 6).

  • Page 5: Fitting The Floor Tool

    Machine Set-Up Fitting the Floor Tool The floor tool has been designed for quick fitting, allowing easy squeegee blade replacement and a safety knock-off feature if the floor tool gets snagged, whilst in transit. Note: The lever moves upward and backward motion to lock the floortool in the raised position. The floor tool carrier can be raised and locked from moving by operating the locking lever,...

  • Page 6: Fill Level Indicator

    Pre-cleaning advice. Before performing the cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor (Fig 16). Numatic part (629044) Wet Floor sign (available if required) Important Do not operate machine unless the Operator Manual has been read and fully understood.

  • Page 7: Moving The Machine

    Machine Set-Up CAUTION When moving or lifting the TT 1840, follow the national safety guidelines on lifting. Moving the machine Transport the machine by tilting back on to the main transit wheels (Fig 17). When the top tank (waste water) is full the machine can be...

  • Page 8: Pre-Scrub Mode

    Machine Operation Pre-scrub mode The TT1840 has been designed to cope with a variety of floor types and different levels of soiling. On heavily soiled floors use a ‘double scrub’ technique. First pre-scrub the floor with the floor tool in the raised position (Fig 21), allow the chemical time to work, then scrub the area a second time with the floor tool lowered.

  • Page 9: Setting The Cleaning Controls

    MILLFIELD ROAD, CHARD, SOMERSET TA20 2GB ENGLAND INTERNATIONAL LTD THIS DRAWING IS COPYRIGHT AND IS THE PROPERTY OF NUMATIC INTERNATIONAL LTD. AND MUST NOT BE USED WITHOUT THEIR KNOWLEDGE NOR COMMUNICATED TO ANY PERSON OR COMPANY. 20.0 20.0 THE EXAMPLE SHOWN DETAILS THE METHOD USED FOR...

  • Page 10: Regular Maintenance

    Regular Maintenance ALWAYS ENSURE THAT THE POWER SUPPLY IS DISCONNECTED, PRIOR TO ANY MAINTENANCE OPERATION. The TT1840 has been designed with ease of use in mind, this included easy stripping down and cleaning. After use, empty waste water tank using emptying hose and flush out with clean water.

  • Page 11: Clean Water Filter

    Regular Maintenance Clean Water Filter Inside the clean water tank is a filter, located below the clean water inlet. Remove the cap and large debris basket. *NOTE Clean water tank side cut away for clarity. Make sure this filter is kept clean from debris and chemical contamination. Replacing the Waste Water Tank Refit the separator and reconnect the vacuum and suction hose (Fig 36).

  • Page 12: Changing The Floor-Tool Blades

    Fig 47 Fig 46 Refer to Page 5 for fitting instructions. 1. Floor tool main body 2. Blade carrier 3. Rear blade 4. Front blade (slotted) 5. Retaining Knobs x 4 Use Genuine NUMATIC spare parts. use Replacement Blade Set (606261)

  • Page 13: About The Machine

    About the Machine Rating Label Company Name & Address Machine Description Voltage Frequency Safety Critical Component Power rating Max Gradient Weight (ready to use) Mains lead: CE Mark H05VV-F 20m x 1.0 mm x 3 core WEEE Logo Splash Proof Rating Machine yr/wk Serial number WEEE (Waste, Electrical and Electronic Equipment) Scrubber dryer Accessories and packaging should be sorted for environmentally- friendly recycling.
  • Page 14 Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people.

  • Page 15: Troubleshooting

    Little or no water flow Clean-water tank empty Fill clean-water tank Clean-water tank filter blocked/ clogged Remove and clean Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268...

  • Page 16: Spare Parts

    Spare Parts 606261 TT 1840 Replacment Blade set 237411 TT 1840 Grit Basket 237466 Skid Plate 237232 TT 1840 Separator Filter 237268 Filler Cap Lid 303985 TT 1840 Filler Cap Assembly 208448 Tank Drain Cap 303961 Clean Tank Filter Assembly (Inside)
  • Page 17 TT 1840 220v ~ 240V ~ 115V DRW - 13476 (A01) 19/03/2013...
  • Page 19 Machinery Directive 2006/42/EC EMC Directive 2014/30/EC RoHS Directive 2011/65/EU Machine Description: Scrubber Dryer Type: TT, ET series Manufactured by: Numatic International Limited Relevant standards upon which conformity is declared include: IEC 60335-1:2010 IEC 60335-2-72:2002 +A1 IEC 62233:2005 EN 55014-1:2006 EN 55014-2:1997+A1...
  • Page 20 TT 1840 This machine has been packed with the following: Brush / Pad Floor Tool Signed Distributed by: Numatic International Limited Chard, Somerset TA20 2GB ENGLAND. Telephone 01460 68600 Fax: 01460 68458 www.numatic.co.uk Subject to change without prior notice. 244163 06/16 (A09)
