Q U I C K G U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Volvo S 90

Summary of Contents for Volvo S 90

  • Page 1 Q U I C K G U I D E...
  • Page 2 VÄLKOMMEN! This Quick Guide describes a selection of the features and functions in your Volvo. More detailed owner’s information is available digitally in the vehicle, in an app and on-line. THE VEHICLE’S CENTER DISPLAY The owner’s manual is available in digital form in the center display and can be accessed from Top view.
  • Page 3 01. GETTING TO KNOW YOUR VEHICLE This section helps you familiarize yourself with some of the basic features in your Volvo and includes information about e.g., remote keys, the vehicle’s three displays, how to start and switch off the engine. It also tells you how to adjust the seats and make climate system settings.

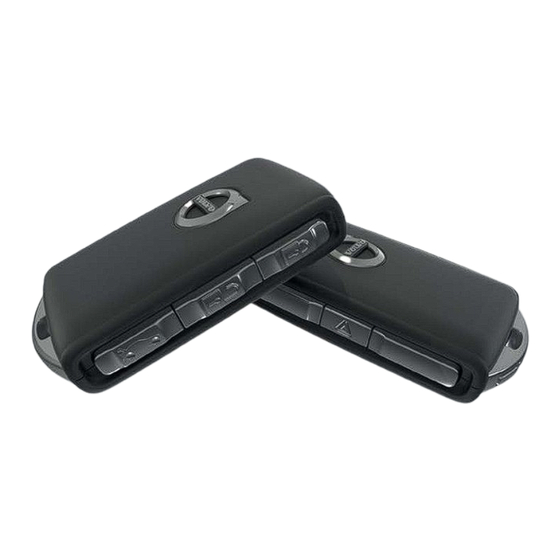

  • Page 4 BUTTONS ON THE REMOTE KEY Press briefly to lock the doors and trunk and arm the alarm. “Panic” alarm: Press and hold for at least 3 seconds or press twice within 3 seconds to sound the horn and flash the turn signals.
  • Page 5 KEYLESS LOCKING/UNLOCKING* You only need to have a remote key in your possession to lock or unlock the vehicle. The remote key has to be within a radius of approx. 5 ft. (1.5 meters) from a door handle or approx. 3 ft. (1 meter) from the trunk (see the illustration).
  • Page 6 POWER FRONT SEAT* Adjust backrest tilt by pressing the control forward/rearward. Raise/lower the seat by moving the rear section of the control up or down. Move the seat forward/rearward by moving the control forward/ rearward. Raise/lower the front edge of the seat cushion by moving the front section of the control up or down.
  • Page 7 FRONT SEAT MEMORY FUNCTION Accessing a stored setting The memory function buttons are on one or both of the front doors. With the door open: Press and release one of the memory buttons. Storing settings With the door closed: Press and hold one of the memory buttons 1.
  • Page 8 FOLDING DOWN THE REAR SEAT BACKRESTS* When folding down the backrests/head restraints, be sure that they do not come in contact the front seat backrests. It may be necessary to move the front seats before the rear seat backrests can be folded down.
  • Page 9 ADJUSTING THE STEERING WHEEL The steering wheel can be adjusted up/down/fore/aft. 1. Push down the lever under the steering wheel to release it. 2. Adjust the steering wheel to the desired position. 3. Pull back the lever to lock the steering wheel in position. INTERIOR AIR QUALITY SYSTEM (IAQS*) IAQS is part of the Clean Zone Interior Package* and is a fully auto- matic system that filters passenger compartment air to help remove...
  • Page 10 STARTING AND SWITCHING OFF THE ENGINE Switch on the igintion or start the engine using the start knob located behind the gear selector. The remote key only has to be in the front section of the passenger compartment. If the vehicle is equipped with the optional Passive Entry system, the remote key can be anywhere in the vehicle.

  • Page 11: Parking Brake

    PARKING BRAKE Setting – Pull up the parking brake control in the center console. A symbol in the instrument panel will illuminate when the parking brake has been set. Check that the vehicle is stationary. Manual release 1. Press the brake pedal. 2.
  • Page 12 THE VEHICLE’S THREE DISPLAYS Center display Head-up display (HUD)* Instrument panel Many of the vehicle’s primary features and The head-up-display supplements the This display shows vehicle and driving-related information using gauges, indicators, and functions, such as the climate and infotain- instrument panel and projects e.g., traffic indicator/warning lights.
  • Page 13 NAVIGATING IN THE CENTER DISPLAY Function view Home view App view Swipe the screen from left to right to access This is the first view shown when the display Swipe the screen from right to left to access this view. From here, various vehicle functions starts and it shows the Navigation, Media, the view of the apps installed in the vehicle such as the...
  • Page 14 Status bar Ongoing activities in the vehicle are shown at the top of the screen in the status bar. Network and connection information is shown to the left and media-related information, the clock and current background activi- ties are shown to the right. Top view Tap (or pull down) the tab at the center of the status bar at the top of the screen to open Top view.
  • Page 15 CLIMATE SYSTEM SETTINGS Climate system functions for the front and rear sections of the passenger compartment are controlled from the center display, using buttons on the center console and the climate panel on the rear side of the tunnel console*. Some functions can be controlled using voice commands.
  • Page 16 POWER TRUNK RELEASE* Opening alternatives • Press and pull up the handle on the trunk. • Press and hold the button on the remote key until the trunk begins to open. • Press and hold the button on the lighting panel (to the left of the steering wheel) until the trunk begins to open.

  • Page 17: Drive Modes

    DRIVE MODES* Select a drive mode best suited to the current driving conditions. Not all drive modes can be selected in every situation. 1. Press the DRIVE MODE control in the tunnel console. A pop-up window will open in the center display. 2.
  • Page 18 START/STOP FUNCTION This function temporarily turns off the engine when the vehicle is at a standstill and restarts it as soon as driving resumes. This function is activated each time the engine is started and is activated if certain conditions are met. Auto-stopping the engine –...
  • Page 19 DRIVER SUPPORT CONTROLS Functions such as Speed limiter*, Cruise control, Adaptive cruise control* and Pilot Assist* can be selected using the keys in the left-side steering wheel keypad. A white symbol indicates that a function is active; a gray symbol indicates that the function has been canceled or is in standby mode.
  • Page 20 DRIVER SUPPORT SYSTEMS City Safety City Safety alerts the driver of obstructions using visual and audible signals. The brakes will be applied automatically if the driver does not react in time. City Safety can e.g., help prevent a collision and assist the driver if there is a risk of colliding with another vehicle, a large animal, a pedestrian or a cyclist.
  • Page 21 Leaving a parking space If the vehicle is equipped with the optional Run-off Mitigation system, additional support can be provided if This function can only be used for parallel parking. it is about to go off the road. Brake and steering support Park out 1.
  • Page 22 WIPERS AND RAIN SENSOR* The wipers and rain sensor are controlled from the right steering wheel lever. Move the lever down and release it for a single sweep. Move the lever to position 0 to turn off the windshield wipers. Move the lever to INT (interval).

  • Page 23: Setting The Date And Time

    AUTO LIGHTING MODE With the left-side steering wheel lever in the AUTO position: • The Daytime Running Lights will be on (the low beam headlights will automatically switch on in dark conditions. • Tunnel detection will be activated. • High beam flash can be used. Continuous high beams can be used if the low beams are on.

  • Page 24: Trip Computer

    TRIP COMPUTER The trip computer registers and calculates e.g., mileage, fuel consumption and average speed. You can choose the type of trip computer information that will be displayed in the instrument panel. Distance to empty The trip computer calculates the distance that can be driven on the amount of fuel remaining in the tank.

  • Page 25: Driver Profiles

    DRIVER PROFILES Many of the vehicle’s settings can be adapted to the driver’s personal preferences and saved in one or more driver profiles. The settings that can be changed in the vehicle are either personal or global. Changes made to personal settings are saved automatically in the active (current) driver profile.

  • Page 26: Voice Control

    VOICE CONTROL The voice control system enables the driver to control certain functions in the media player, the Sensus navigation system, the climate system and a Bluetooth-connected cell phone. Voice commands are given either as direct commands from the user or in dialog form with verbal responses from the system.
  • Page 27 PRIVATE (VALET) LOCKING This function locks the rear seat backrests in the upright position and prevents the trunk lid from being opened when e.g., the vehicle is in a workshop for service, etc. The glove compartment can also be locked manually using the key provided.
  • Page 28 SUN CURTAINS Both rear doors have integrated sun curtains that are raised/lowered manually. An electrically operated sun curtain for the rear window is integrated into the rear parcel shelf. Operating the rear sun curtain: 1. Put the ignition in at least mode II. 2.
  • Page 29 PAIRING AND CONNECTING A BLUETOOTH CELL PHONE Pair a cell phone with the vehicle and connect it to make/receive calls, send/receive text messages, stream media and connect to the Internet. Two Bluetooth devices can be connected at the same time, one of which can only be used to stream media.
  • Page 30 MAKING, ANSWERING AND ENDING PHONE CALLS Phone calls can be made and answered using a Bluetooth-connected cell phone. Answering/declining/ending a call Making a call from the center display Answer: Press on the right-side steering wheel keypad or tap Phone Answer in the center display.

  • Page 31: Connecting To The Internet

    4. Activate by tapping the box. 5. If another type of connection has been used previously, confirm the change to the new connection. When the modem is used to make the connection, the Volvo On Call services will use this connec- tion.
  • Page 32 6. Enter the SIM card’s PIN code. Wi-Fi tethering (hotspot) When the vehicle is connected to the Internet, tethering (sharing a Wi-Fi hotspot) can be used to allow other devices to access the vehi- cle’s Internet connection Settings 1. Tap in the center display’s Top view.

  • Page 33: Apple Carplay

    Siri. Press briefly to activate the vehicle’s own voice control system. If the vehicle is not already equipped with Apple CarPlay, it can be retro-fitted. Contact a Volvo retailer. Information about the apps supported and compatible cell phones is available from Apple at: www.apple.com/ios/carplay/.
  • Page 34 PLAYING MEDIA FROM EXTERNAL DEVICES The media player can play audio from external devices connected to the AUX/USB sockets or by wireless Bluetooth streaming. Bluetooth-connected devices 1. Pair and connect the device to the infotainment system in the same way as for a cell phone. 2.
  • Page 35 SENSUS NAVIGATION GUIDANCE Navigation Tap the sub-view in the center display’s Home view. Entering an address as a destination: dest. The map will change to a search by address 1. Tap – screen. 2. Tap the respective fields to fill in Country and State/Province, etc.
  • Page 36 MANAGING AND UPDATING APPS AND SYSTEM SOFTWARE – Tap Download Center in App view to make updates. In order to perform remote updates, vehicle must be connected to the Internet. Tapping Download Center opens a download app. Downloading/updating/uninstalling apps Downloading: Tap New apps Install and select an app.
  • Page 37 Using the vehicle’s Volvo ID app, a Volvo ID can be created and regis- tered to the vehicle at the same time. A Volvo ID can also be created using My Volvo or the Volvo On Call (VOC) mobile app and the ID can then be registered to the vehicle.
  • Page 38 VOLVO ON CALL (VOC) The Volvo On Call mobile app (a personal Volvo ID is required to use the mobile app) makes it possible to use the preconditioning function* to cool or heat the passenger compartment before driving. Preconditioning can also be started in the center display’s Climate view.

  • Page 39: Adjusting Volume

    ADJUSTING VOLUME Adjust the volume in the passenger compartment by turning the sound knob under the center display or by pressing the buttons on the right-side steering wheel keypad. Adjusting volume for the various systems in the vehicle Settings > Sound > System volumes 1.
  • Page 40 Internet connection. 6. Volvo will send a booking invitation to your email address. A Volvo ID is required. The engine must be running in order to send an appointment request..
  • Page 41 LOCATION OF THE AUX, USB AND ELECTRICAL SOCKETS AUX and USB sockets The AUX and USB sockets are located under the tunnel console armrest. Electrical socket The vehicle has several electrical sockets: • There is a 12-volt socket in the tunnel console storage compartment.
  • Page 42 Safety maintenance may only be carried out by a returning the wipers to the normal position to help partner organizations have cell phone reception. trained and qualified Volvo service technician. Parking brake avoid scratching the paint on the hood. Just as with a cell phone, atmospheric disturbances Park Assist Pilot (PAP)* Use the parking brake when parking on inclines.
  • Page 43 4-6 in. (10-15 cm) to cell phones, metallic Apple Carplay* objects or e.g., stored in a metal briefcase. Please be aware that Volvo has no control over the content of the Apple CarPlay app. Starting and switching off the engine...
  • Page 44 TP 21447 (English - USA & Canada) AT 1617, MY17. Printed in Sweden, Göteborg 2016, Copyright © 2000-2016 Volvo Car Corporation...
