rabbit
TM
English user manual
G
B
© 2010 R82 A/S. All rights reserved.
The R82 logo and the Rabbit are trademarks of R82 A/S.
12.2012 - rev.007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rabbit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for R82 Rabbit

Summary of Contents for R82 Rabbit

  • Page 1 English user manual © 2010 R82 A/S. All rights reserved. The R82 logo and the Rabbit are trademarks of R82 A/S. 12.2012 - rev.007...

  • Page 2: Table Of Contents

    ConTenTS Safety ................4 Warranty ................4 Tools .................. 4 T-tool.................. 5 Ready for use ..............6 Angling of the centre bar ........... 7 Brakes ................7 Height adjustment of driving wheels ........8 Mounting and adjustment of the foot plate ......9 Mounting and adjustment of individual foot supports ..

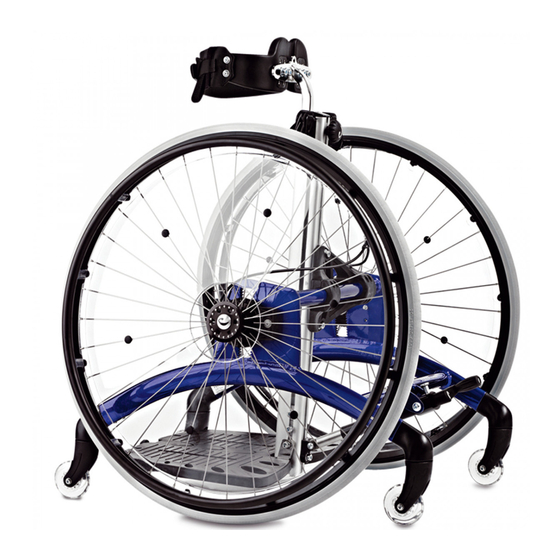

  • Page 3 The user will be in equal height as his or hers friends and will have a good view. Children with paresis or cerebral paralysis will find joy in using the Rabbit, and children in Support Cast can easily be placed in it.

  • Page 4: Safety

    The warranty is given by R82 or, subsequently, an R82 dealer. ToolS Tools are delivered with the Rabbit: 5 & 6 mm allenkeys and 2 pcs. T-tools. This key is used to perform some of the adjustments described in this manual.

  • Page 5: T-Tool

    T-Tool The T-tool (A) helps to maintain the square pla- tes in the slot of the center bar, when mounting or adjusting eg. knee supports, hip support etc. insert tool into slot, twist 90° and tip down to support the plate.

  • Page 6: Ready For Use

    The Rabbit is now ready for use and to receive any accessories ordered. Do not place an user in the Rabbit if it has been standing in/exposed to sun. for the safety and comfort of the user the Rabbit must be moved away from the sun and chilled before use.

  • Page 7: Angling Of The Centre Bar

    (C) to maintain the desired position. We recommend not to lock the wheels, if the Rabbit for any reason is not used for a longer period.

  • Page 8: Height Adjustment Of Driving Wheels

    DRivinG WHeelS The height of the driving wheels can be adjusted to fit the desired height-to-floor on the small casters. The Rabbit is delivered with max. 1 cm height-to-floor on the casters. follow the description below to adjust the height on the driving wheels.

  • Page 9: Mounting And Adjustment Of The Foot Plate

    MoUnTinG AnD ADjUSTMenT of THe fooT PlATe follow the description below to mount the foot plate correctly. We recommend to dismount the square plates from the foot plate before mounting. Tip! in general we recommend to mount all acces- sories from the top of the centre bar which is why the lower accessories must be mounted first.

  • Page 10: Mounting And Adjustment Of Individual Foot Supports

    MoUnTinG AnD ADjUSTMenT of inDiviDUAl fooT SUPPoRTS follow the description below to mount the foot supports correctly. The foot supports are mounted seperately and can be adjusted indi- vidually. * The square plates mounted on the foot sup- port, should be mounted in the slot on the centre bar as for the foot plate.

  • Page 11: Mounting Of Flip-Up Sandals / Heel Supports

    MoUnTinG of fliP- UP SAnDAlS / Heel SUPPoRTS follow the description below to mount the flip-up sandals / heel supports correctly. * Place the enclosed bolt (A) in the slot from the top of the footplate/heel support and fasten with the fingerscrew (B). * The flip-up sandal / heel support can be ad- justed forward or/and backward depending on the desired placement (C).

  • Page 12: Hinged Knee Supports

    HinGeD Knee SUPPoRTS follow the description below to mount the hin- ged knee supports correctly. The knee supports are mounted seperately and can be adjusted individually. * The square plates on the knee support is mounted in the slot on the centre bar. * Adjust the knee support in to the desired height and fasten (A) using the enclosed 6 mm allen key.

  • Page 13: Hip Support, Rear

    HiP SUPPoRT, ReAR follow the description below to mount the hip support correctly: * Mount two square plates in the slots on both sides of the centre bar. * Mount bolts (A) in the upper square plates and fasten at the desired height using the enclosed 6 mm allen key.

  • Page 14: Hip Support, Front

    HiP SUPPoRT, fRonT follow the description below to mount the hip support correctly. * Mount the two square plates in the slots on both sides of the centre bar. * Mount bolts (A) in the upper square plates and fasten slightly. Do not fasten completly before the four bolts have been placed correctly.

  • Page 15: B Head Support

    HeAD SUPPoRT follow the description below to mount the head support correctly. either back support or hip supports (rear) must be mounted to be able to mount a head support on the Toucan * Mount the head support bar on the fitting from the back support/hip supports (rear) and fasten with the enclosed 4 mm Allen key (A).

  • Page 16: Tray And Play Box

    TRAy AnD PlAy follow the description below to mount the tray/ play box correctly. Mounting onto the chest support bar: * loosen the handle (A) and dismount the chest support. * Mount the tray onto the chest support bar and fasten at the desired height with the enclosed 4 mm Allen key (B).

  • Page 17: Chest Support

    CHeST SUPPoRT We recommend to mount the chest support as the final equipment. follow the description below to mount the chest support correctly: * Mount the top part (A) in the top of the centre bar and fasten with the enclosed 5 mm allen key.

  • Page 18: Abdominal Support

    ABDoMinAl SUPPoRT follow the description below to mount the ab- dominal support correctly. * Mount the two square plates in the slots on both sides of the centre bar. * Mount bolts (A) in the upper square plates and fasten slightly. Do not fasten completly before the four bolts have been placed correctly.

  • Page 19: Product Identification

    B) Manufacturer The label is placed on the lower part of the frame near the left rear caster. Date: yyyy-MM-DD Max.load: xx KG xxxxxx ver.: xx Art.no: xxxxxx Product - Size x (01)0570729530134(21)256829 Parallelvej 3 DK-8751 Gedved www.R82.com Made in Denmark...

  • Page 20: Measurements

    MeASUReMenTS Size 1 Size 2 Size 3 Size 4 cm (inch) cm (inch) cm (inch) cm (inch) Width (G) 61½ (24") 68 (26½") 68 (26½") 70 (27½") length, total (H) 62 (24¼") 75 (29¼") 80 (31¼") 90 (35") length, frame (H) 62 (24¼") 75 (29¼") 75 (29¼")

  • Page 21: Technical Data

    TeCHniCAl DATA frame: Powder laquered aluminium tubes Plastic parts: fibre glass strengthened nylon Upholstery: PUR (Polyurethane) PRoDUCeR DiSTRiBUToR R82 A/S Parallelvej 3 8751 Gedved Denmark Please find your distributor on www.R82.com...

  • Page 22: Care And Maintenance

    R82 parts may be used. Accessories or available spare parts which are broken can be forward- ed to R82 for repair. if there is a problem with any basic parts, the whole frame must be returned to R82 for repair. R82 will not be held responsible for damage or injury caused by use of non-...
