Section 2 - Overview
2.3
Recorder Front

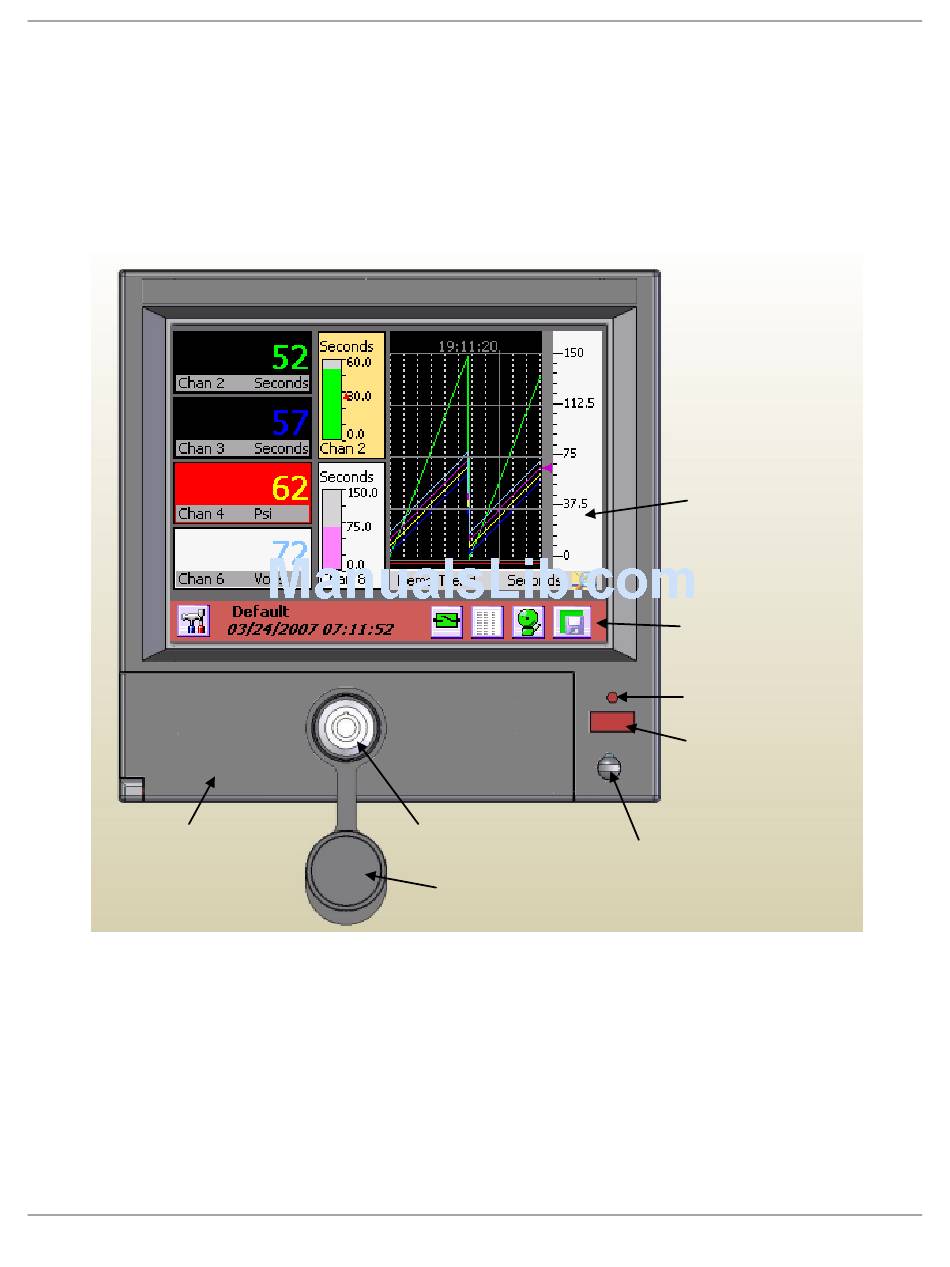

Figure 2-2 shows the front view of the recorder. The recorder has a ¼ VGA color display with touch screen.
Below the display are a lockable media door, status indicator, IR COMM port and stylus used for data entry on the
display.
The recorder is intended to be panel mounted and if mounted correctly using the supplied gasket, the unit is
waterproof to IP65 when the media door is closed and the waterproof lock cover is in place.
MEDIA DOOR
2.3.1 Display Area
The recorder has a ¼ VGA color display (320 x 240 pixels) and can display 24 million colors. The display has
a touch screen over it and is fully interactive. The screen consists of two distinct areas – the task bar with
icons along the bottom of the screen and the live display which is that area above the task bar showing the
live data in either trend, bar graph or digital display widgets. A full description of this is given in Section 3.0.
LOCK
WATERPROOF
LOCK COVER
Figure 2-2 Recorder Front View
Page 4
DISPLAY AREA
TASK BAR
STATUS
INDICATOR
IR COMM PORT
STYLUS
09/11/2008 REV 0.99
