6. Specifi cations
General
Flow range:
5061 and 5062: 0.11 to 2.6 lpm (0.03 to 0.7 gpm)
5063 and 5064: 1.13 to 12.11 lpm (0.3 to 3.2 gpm)
Linearity: ±1.2% of full range
Repeatability: ±0.5% of full range
Connections: ¼ in. NPT (male) or ISO 7/1 - R¼ (male)
Cable length: 8 m (25 ft.), can splice up to 300 m (1000 ft.) max.
Cable type: 2-conductor twisted pair w/shield (Belden 8451)
Weight: 250 g (9.6 oz.)

Wetted Materials

• Sensor body and cover: 40% glass fi lled Polyphenylene Sulfi de
• Rotor: PEEK, natural, unfi lled
• Rotor O-ring: Viton®
• Cover O-ring: Viton®
psi bar
25 1.7
20 1.4
15 1.0
10 0.7
5 0.3
0 0
0
0

Dimensions

Mounting tabs for metric M3 or
standard #6 screws on 68 mm
(2.68 in.) bolt circle
OMEGA FP-5060 Series Micro Flow Sensor

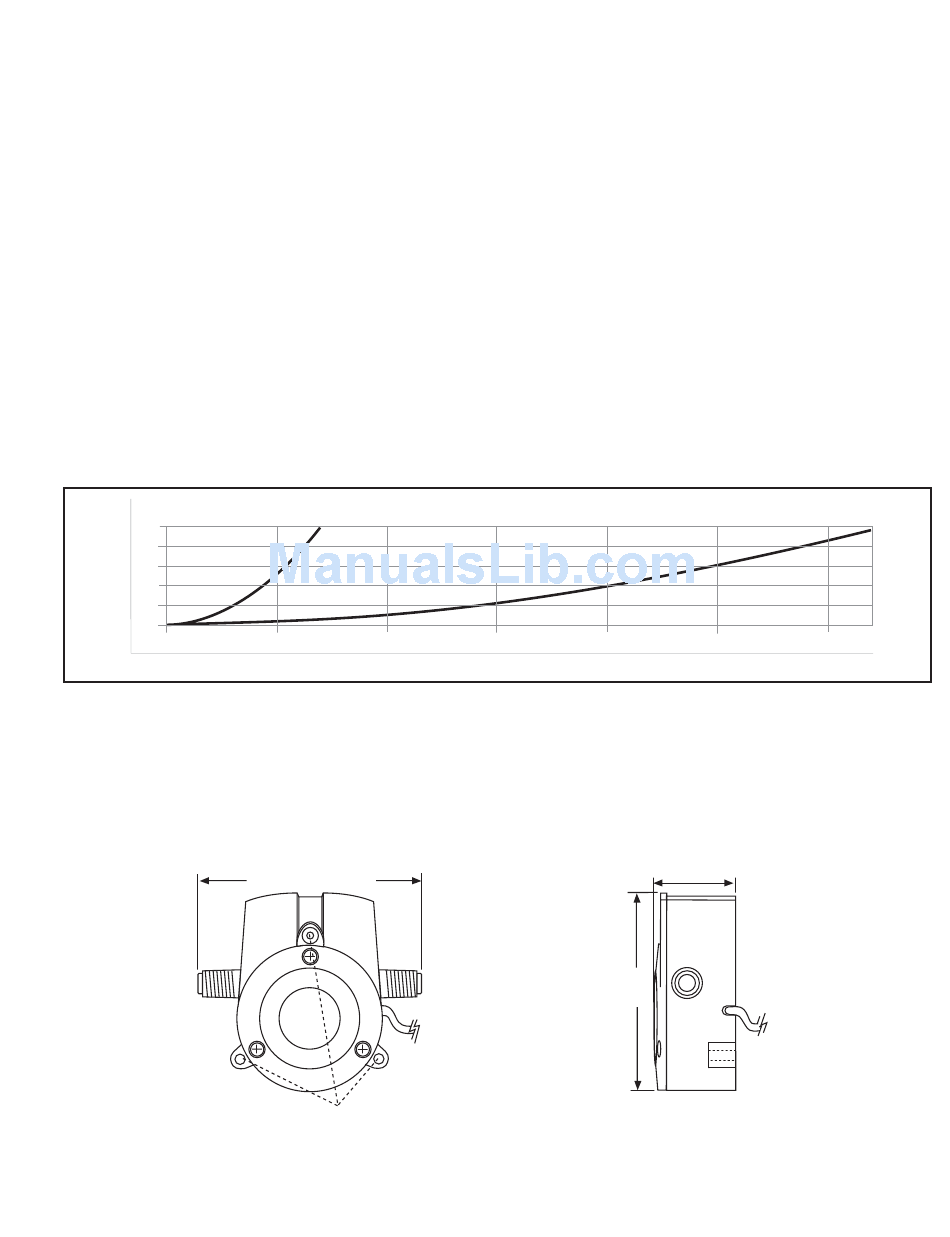

Pressure Drop Across Sensor vs. Flow Rate

FP-5061/FP-5062
1.9 3.8
0.5 1
Top View
100 mm (3.94 in.)
Electrical
Supply voltage: 5 to 24 VDC, regulated
Supply current: 10 mA max.
Output type: Open-collector NPN transistor, 10 mA max sink
Quality Standard
• Manufactured under ISO 9001 and ISO 14001

Fluid Conditions

Max. pressure/temperature:
0 to 80°C (32 to 176°F) @ 5.5 bar (80 psi) max
5.7 7.6
1.5 2
Side View
36 mm (1.42 in.)
81 mm
(3.2 in.)
FP-5063/FP-5064
L/m
9.5 11.4
2.5 3 gpm
page 5
