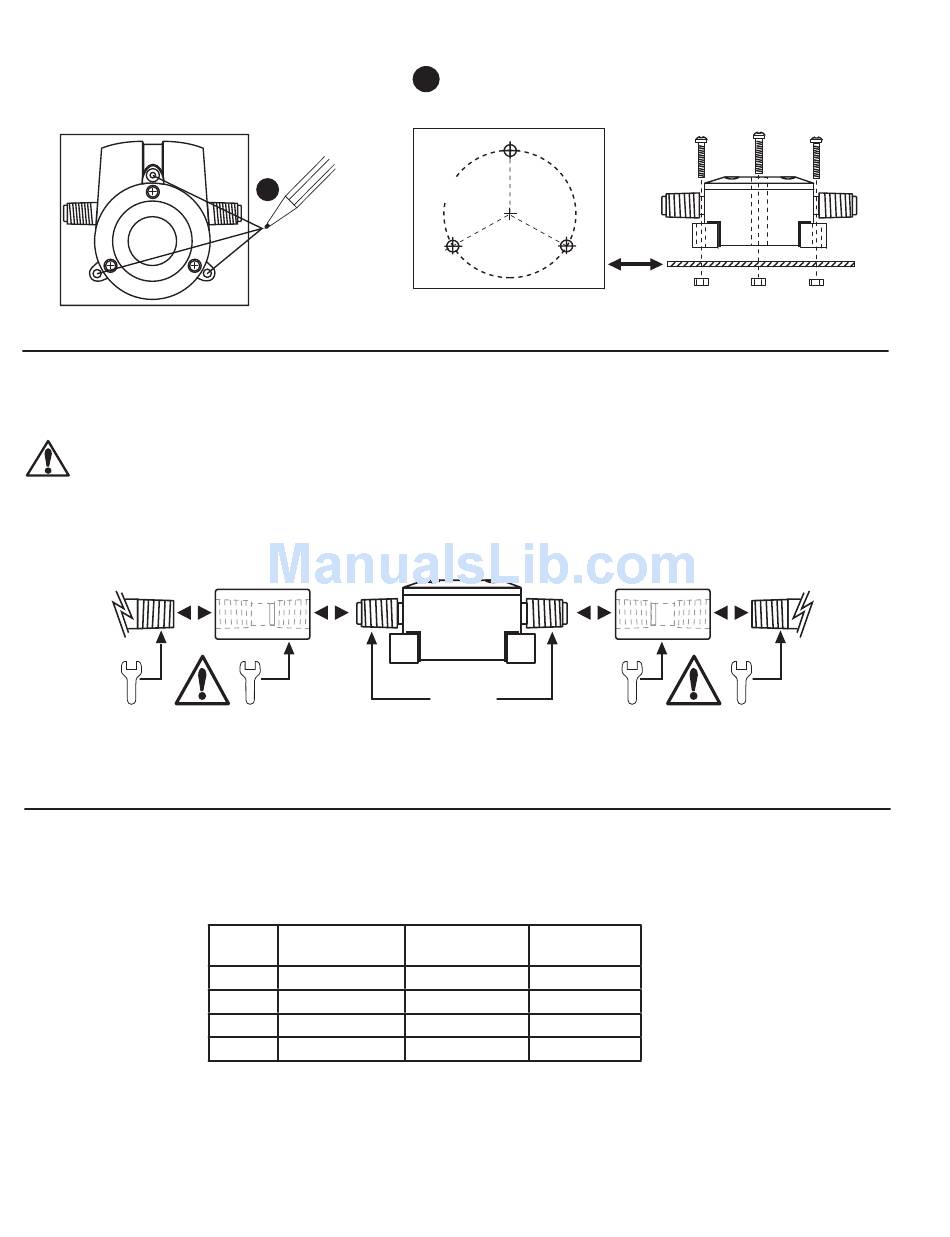

3. Surface Mount Instructions

Mounting surface

4. Fitting Installation

CAUTION:
• Maximum pipe fi tting torque: 10 ft - lbs (13 N m).
• DO NOT overtighten. Failure to observe torque specifi cation may permanently damage sensor ports.
Pipe
Technical Notes:
• Compatible fi ttings (customer supplied): Female union (shown), reducer, or hose barb type.
• Always apply thread sealant to sensor port threads to prevent leakage.

5. Calibration

The K-Factors listed below represent the number of pulses the sensor will generate for each engineering unit of fl uid which passes.
They are listed in U.S. gallons, liters and mL by sensor model:
page 4
1
Pipe fitting
Sensor PULSES PER
Model U.S. GAL
FP-5061 9950
FP-5062 9950
FP-5063 3160
FP-5064 3160
Remove sensor then use correct
2
screws for panel material.
120°
Mounting surface (top),
68 mm (2.68 in.) bolt circle
FP-5060
Sealant
PULSES PER PULSES PER
LITER mL
2629 2.629
2629 2.629
834.9 0.835
834.9 0.835
#6 or M3 metric
screws recommended
Mounting surface (side)
Pipe fitting Pipe
OMEGA FP-5060 Series Micro Flow Sensor
