Samsung NQ50H7235AS User Manual

Samsung NQ50H7235AS User Manual

Built-in microwave oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

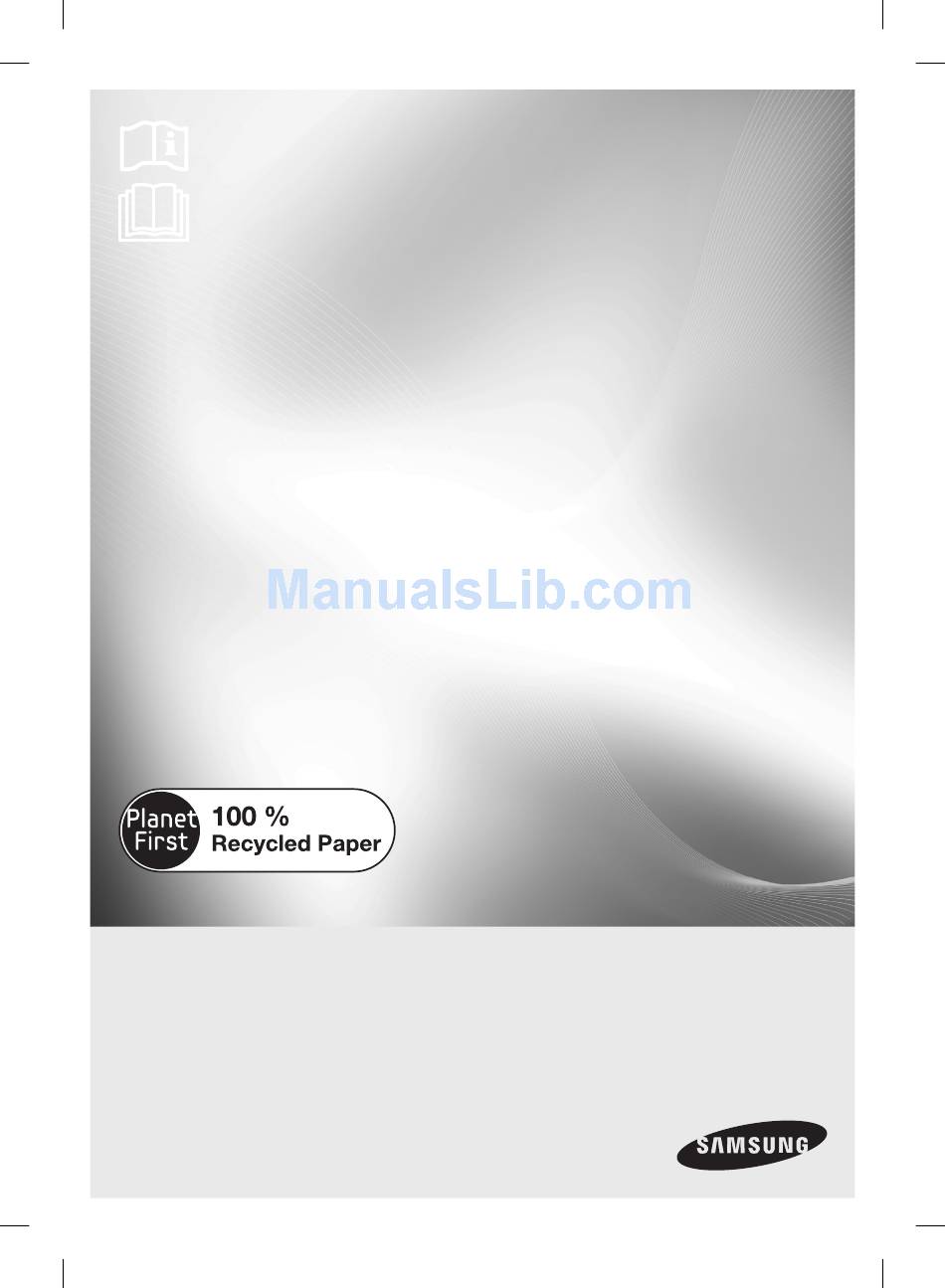

NQ50H7235AS
Built - in Micro Wave
Oven
user manual
Please be advised that the Samsung warranty does NOT cover service
calls to explain product operation, correct improper installation, or perform
normal cleaning or maintenance.
This manual is made with 100 % recycled paper.
imagine
the possibilities
Thank you for purchasing this Samsung product.
NQ50H7235AS_EU_DG68-00523D-00_EN.indb 1
2014-03-07
3:29:08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NQ50H7235AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung NQ50H7235AS

Summary of Contents for Samsung NQ50H7235AS

  • Page 1 Built - in Micro Wave Oven user manual Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. This manual is made with 100 % recycled paper.

  • Page 2: Table Of Contents

    contents SAFETY INFORMATION Safety information OVEN FEATURES Oven Control panel Accessory BEFORE YOU BEGIN Setting the clock Setting the energy save mode OVEN USE Types of heating How a microwave oven works Using the microwave mode Using the auto menu mode CLEANING AND CARE Using the steam clean mode Using the deodorization mode...
  • Page 3 USING THIS INSTRUCTION BOOKLET You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven: • Safety precautions • Suitable accessories and cookware • Useful cooking tips • Cooking tips LEGEND FOR SYMBOLS AND ICONS Hazards or unsafe practices that may result in severe personal injury or death.
  • Page 4 WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  • Page 5 WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
  • Page 6 Appliance should allow to disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. WARNING (Oven function only) - Optional WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures...
  • Page 7 Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. The temperature of accessible surfaces may be high when the appliance is operating. The door or the outer surface may get hot when the appliance is operating.

  • Page 8: Electrical Connection

    Install in the Cabinet Kitchen Cabinets in contact with the oven must be heat- resistant up to 100 °C. Samsung will take no responsibility for damage of cabinets from the heat. English - 8 NQ50H7235AS_EU_DG68-00523D-00_EN.indb 8 2014-03-07 3:29:11...
  • Page 9 Fig1. Slide the oven partly into the recess. Lead the connection cable to the power source. Fig2. Slide the oven completely into the recess. Fig3. Fasten the oven using the two screws (4 X 25 mm) provoded. Fig4. Make the electrical connection. Check that the appliance works.
  • Page 10 Building-in dimensions Be sure to hold the appliance with min 564 2 side handles and door handle when 200 cm² max 568 unpacking the product. Side Side handle handle min 446 max 450 Door handle 200 cm² Built-under Dimensions min 564 max 568 min 446 max 450...
  • Page 11 INSTALLATION & WIRING INSTRUCTIONS IMPORTANT NOTE : The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BS1363 of the same rating must be used.
  • Page 12 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings indentifying the terminals in your plug, proceed as follows. Connect the green and yellow wire to the terminal in the plug marked with the letter E or the earth symbol ( ) or coloured green or green-and-yellow.
  • Page 13 CLEANING YOUR MICROWAVE OVEN The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up: • Inside and outside surfaces • Door and door seals • Turntable and Roller rings (Turntable type model only) ALWAYS ensure that the door seals are clean and the door closes properly.

  • Page 14: Storing And Repairing Your Microwave Oven

    This microwave oven is not intended for commercial use. The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care,to arrange for a qualified engineer to replace the bulb. WARNING Only qualified staff should be allowed to modify or repair the appliance.
  • Page 15 Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. Do not pull or excessively bend or place heavy objecton the power cord. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.
  • Page 16 Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack. Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid.
  • Page 17 Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include: (a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel.

  • Page 18: Oven

    oven features OVEN Control Panel Support Rack Safety Door Lock Door Door Handle When you cook some food, you should use the ceramic tray and place the ceramic tray on the Support Rack. English - 18 NQ50H7235AS_EU_DG68-00523D-00_EN.indb 18 2014-03-07 3:31:54...

  • Page 19: Control Panel

    CONTROL PANEL CLOCK AUTO REHEAT MODE +30s (quick start) AUTO DEFROST MODE CHILD LOCK MICROWAVE MODE DEODORIZATION AUTO COOK MODE SELECT STEAM CLEAN START MODE SELECTOR STOP/CANCEL DISPLAY MULTI-FUNCTION SELECTOR LAMP ACCESSORY The following accessory is provided with your microwave oven: 1.

  • Page 20: Setting The Clock

    before you begin When the appliance is first plugged in, the DISPLAY lights up. After three seconds, the Clock symbol and “12:00” blink on the DISPLAY. SETTING THE CLOCK 1. Press CLOCK. The “12” starts blinking. 2. Turn the MULTI-FUNCTION SELECTOR to set hour.

  • Page 21: Setting The Energy Save Mode

    SETTING THE ENERGY SAVE MODE The oven has an energy save mode. This facility saves electricity when the oven is not in use. Standby mode The oven will default to Standby mode after 10 minutes if not operated. ECO mode 1.

  • Page 22: Types Of Heating

    oven use TYPES OF HEATING The following chart summarizes the various heating modes and settings available on your oven. Use the Cooking Guides in the pages that follow to determine the appropriate mode and setting for all your recipes. Microwave mode Microwave energy is used to cook and defrost foods.

  • Page 23: How A Microwave Oven Works

    HOW A MICROWAVE OVEN WORKS Microwaves are high - frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. You can use your microwave to: • Microwave mode Cooking principle 1.

  • Page 24: Using The Microwave Mode

    USING THE MICROWAVE MODE Microwaves are high frequency electromagnetic waves. In microwave cooking, microwave energy penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

  • Page 25: Microwave Cookware Guide

    Guide to microwave power levels PERCENTAGE OUTPUT POWER LEVEL REMARK POWER (W) For heating up liquids. HIGH For heating up and cooking HIGH LOW food. For heating up and cooking MEDIUM HIGH food. MEDIUM For cooking meat and heating up delicate foods. MEDIUM LOW For defrosting and continued DEFROST...
  • Page 26 Microwave- Cookware Comments Safe Glassware • Oven-to-table ware Can be used, unless decorated with a  metal trim. • Fine glassware Can be used to warm foods or liquids.  Delicate glass may break or crack if heated suddenly. • Glass jars Must remove the lid. Suitable for warming ...

  • Page 27: Microwave Cooking Guide

    Microwave cooking guide General guidelines Food suitable for microwave cooking Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven.
  • Page 28 Cooking guide for fresh vegetables Use a suitable glass Pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended (see table) Cook covered for the minimum time (see table) Continue cooking to get the result you prefer. Stir once during and after cooking. Add salt, herbs or butter after cooking. Cover during the 3 minute standing time. Hint: Cut fresh vegetables into even sized pieces.
  • Page 29 Cooking guide for rice and pasta Rice: U se a large glass Pyrex bowl with lid. (Note that rice doubles in volume during cooking.) Cook covered. After cooking time is over, stir before letting stand. Add salt or herbs and butter. Note that rice may not have absorbed all water after the cooking time is finished. Pasta: U se a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.
  • Page 30 Reheating Your microwave oven will reheat food in a fraction of the time a conventional oven takes. Arranging and covering Avoid reheating large items such as joints of meat since they tend to overcook and dry out before the centre is piping hot. You will have more success reheating smaller pieces. Keeping food covered while heating will also help prevent drying. Power levels Different power levels can be used for reheating foods.
  • Page 31 Reheating baby food Baby food Extra caution should also be exercised when reheating baby foods. Put food into a deep ceramic plate. Cover with plastic lid. Stir well after reheating. Let stand for 2-3 minutes before serving. Stir again and check temperature. Recommended serving temperature is between 30-40 °C. Baby milk Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby’s bottle with the nipple on, as the bottle may explode if overheated. Shake well before standing time and again before serving. Always carefully check the temperature of baby milk or food before serving. Recommended serving temperature is 37 °C. Reheating baby food and milk Use the power levels and times in this table as guide lines for reheating.
  • Page 32 Reheating liquids and food Use the power levels and times in this table as guide lines for reheating. Standing Food Portion Power Time time Instruction (min.) Drink 250 ml 900 W 1½-2 Pour into a ceramic cup and (1 mug) reheat uncovered. Place cup 500 ml in the center of ceramic tray.
  • Page 33 Frozen foods should be defrosted using defrosting power level (180 W). Place food on ceramic tray, insert ceramic tray in shelf level 1. Portion Time Standing Food Instructions (min.) time (min.) MEAT Minced Beef 15-30 Place the meat on the ceramic 8-12 plate. Shield thinner edges with aluminium foil. Turn over after Pork Steaks half of defrosting time.

  • Page 34: Using The Auto Menu Mode

    USING THE AUTO MENU MODE Auto Menu Mode allows you to choose from 20 pre-programmed settings (6 Auto Cook, 5 Auto Defrost and 9 Auto Reheat) to conveniently cook,or reheat your favorite foods. Cooking time and power level are automatically set. Simply select one of the 20 settings and set the weight to start cooking. Setting auto menu mode 1. Turn the MODE SELECTOR to AUTO COOK, AUTO DEFROST or AUTO REHEAT position. 2. Turn MULTI-FUNCTION SELECTOR to select desired Auto Menu setting. Refer to table on pages 35 ~ 37 for a description of the 20 Auto Menu settings.
  • Page 35 Guide to auto cook menu setting The following table presents 6 Auto Programmes Cooking. It contains its quantities, standing times and appropriate recommendations. These auto programmes contain special cook modes, which have been developed for your convenience. Food item Weight (kg) Recommendation A:01 Fresh 0.3-0.4...
  • Page 36 Guide to auto defrost setting The following table presents the various Auto Defrost programmes, quantities, standing times and appropriate recommendations. These programmes use microwave energy only. Remove all packaging material before defrosting. Place meat, poultry and fish on the ceramic tray. Standing Food Weight Time Recommendation Item (kg) (min.) d:01 Meat 0.2 - 2.0 20-90...
  • Page 37 Guide to auto reheat setting Food Item Weight (kg) Recommendation r:01 Drink 0.25 - 0.5 Pour the liquid into ceramic mugs and reheat uncovered. Place one mug in the centre, place 2 mugs side by side on ceramic tray. Leave them to stand in the microwave oven.

  • Page 38: Using The Steam Clean Mode

    cleaning and care USING THE STEAM CLEAN MODE The Steam Clean allows you to sanitize your oven in just 15 minutes. 1. Turn the MODE SELECTOR to Steam Clean position. • Pour about 100 ml water onto the floor of the empty oven. 2. Press the START. The oven will start automatically.

  • Page 39: Using The Deodorization Mode

    USING THE DEODORIZATION MODE In the Deodorization setting, the fans are operated for cooling and deodorization. Deodorization mode setting 1. Turn the MODE SELECTOR to “OFF” position. 2. Press DEODORIZATION. The time is displayed (Default : 5 minutes). 3. Turn the MULTI-FUNCTION SELECTOR and set the desired time (Max. 15 minutes). 4. Press START. English - 39 NQ50H7235AS_EU_DG68-00523D-00_EN.indb 39 2014-03-07 3:32:02...

  • Page 40: Switching Off The Beeper

    SWITCHING OFF THE BEEPER The oven’s Switching Off The Beeper allows you to switch the beeper on and off. 1. Turn the MODE SELECTOR to “OFF” position. 2. To switch the beeper off, press CHILD LOCK and DEODORIZATION at the same time and hold for 3 seconds. 3. To switch the beeper back on, press CHILD LOCK and DEODORIZATION again at the same time and hold for 3 seconds. English - 40 NQ50H7235AS_EU_DG68-00523D-00_EN.indb 40 2014-03-07 3:32:02...

  • Page 41: Child Safety Lock

    CHILD SAFETY LOCK The oven’s Child Safety Lock allows you to lock the control panel to protect the oven against unintended use. To lock the oven 1. Turn the MODE SELECTOR to “OFF” position. 2. Press CHILD LOCK button for 1 second. 3. A lock symbol appears on the DISPLAY indicating that all functions are locked. To unlock the oven 1. Press CHILD LOCK button for 1 second. 2. The lock symbol disappears in the display, indicating that all functions are unlocked. English - 41 NQ50H7235AS_EU_DG68-00523D-00_EN.indb 41 2014-03-07 3:32:03...

  • Page 42: Storing And Repairing Your Microwave Oven

    STORING AND REPAIRING YOUR MICROWAVE OVEN Repairs should only be made by a qualified service technician. If oven requires servicing, unplug the oven and contact SAMSUNG Customer Service. When calling, please have the following information ready: • The model number and serial number (can be found inside the oven door) • Warranty details...
  • Page 43 • Remove any metallic utensils, cookware, or metal ties. • If using foil, use only narrow strips and allow at least one inch between the foil and interior oven walls. Operating noise is too loud. • The oven makes noise during operation. This is normal. If you hear an abnormal sound continuously, please contact the Samsung Call Center. The oven causes interference with radios or televisions. • Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.

  • Page 44: Information Codes

    NAK SIGNAL ERROR Nak signal occurs if initial power-up for more than 10 seconds. If any of these errors occur, please contact COMMUNICATION ERROR SAMSUNG Customer It occurs when not communicating Service. between main and sub PCB for more than 10 seconds. EEPROM OPEN ERROR It occurs when EEPROM communication is error during initial power setting.

  • Page 45: Technical Specifications

    SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. TECHNICAL SPECIFICATIONS Model NQ50H7235AS Power Source 230 V / 50 Hz Power Consumption Microwave Mode...
