Assembly & Set-Up Assembly & Set-Up

Contents of Crate

• Riding Mower (1)
• Steering Wheel/Shaft Assembly (1)
• Rear Hitch Plate (1)
• Rider Operator's Manual (1)
• Engine Operator's Manual (1)

Contents of Hardware Pack

Before beginning installation, remove all the contents from the
crate and all the hardware from the pack to make sure everything
is present. Hardware is listed below.
• Hitch Plate
• Seat Mounting Bracket (with two shoulder bolts & lock nuts
installed)
Recommended Tools for Assembly
• 3/8" Wrench (or Socket)
• 1/2" Wrench (or Socket)
• Phillips Screw Driver
• 1/4" Drive Ratchet
• 9/16" Socket
• 7/16" Wrench

Installing the Steering Wheel Assembly

If the steering wheel assembly for your tractor did not come
already installed, follow the steps below:
1. Slide the pedestal cap onto the steering shaft so that when
the steering shaft is installed on the tractor, the pedestal
cap will be upright as shown in Figure 3-1.
2. Remove the shoulder bolt and lock nut from the steering
shaft and retain for later steps.
3. With the steering wheel assembly upright and positioned
over the lower steering shaft on the tractor, align the
steering wheel so that with the tractor wheels straight, the
large opening on the steering wheel is facing forward.
10 10
• Seat Assembly (1)
• Rear Engine Cover (1)
• Oil Drain Sleeve (1)
• Steering Pedestal Cap (1)
• Hardware Pack (1)
4. Lower the steering wheel assembly onto the lower steering
shaft and secure with the shoulder bolt and lock nut
previously removed. See Figure 3-2.
• Discharge Chute Assembly (1)
• Mulch Plug (1)
• Product Registration Card (1)
• Front Bumper (1)

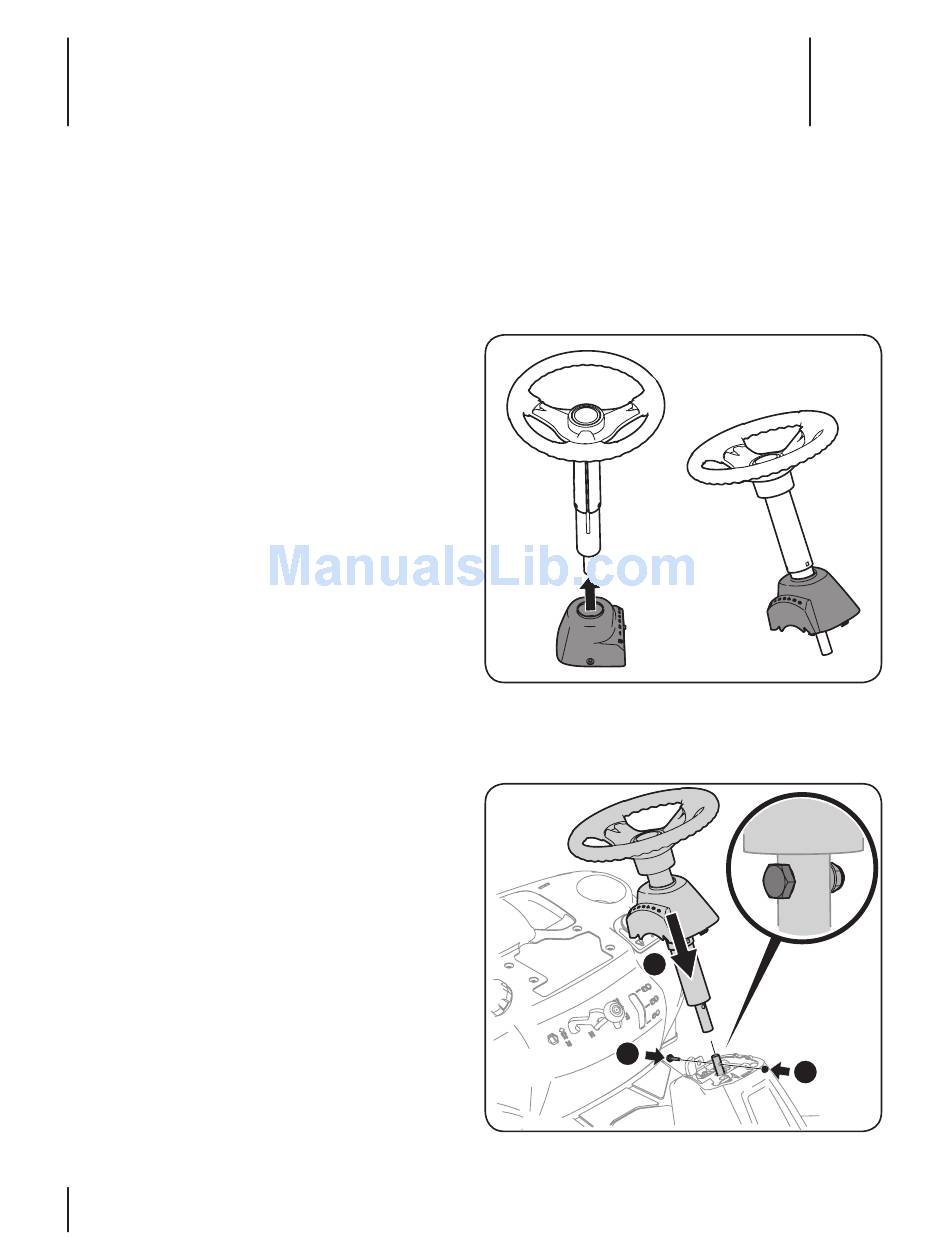

Figure 3-1
1
2
Figure 3-2
3 3
2
