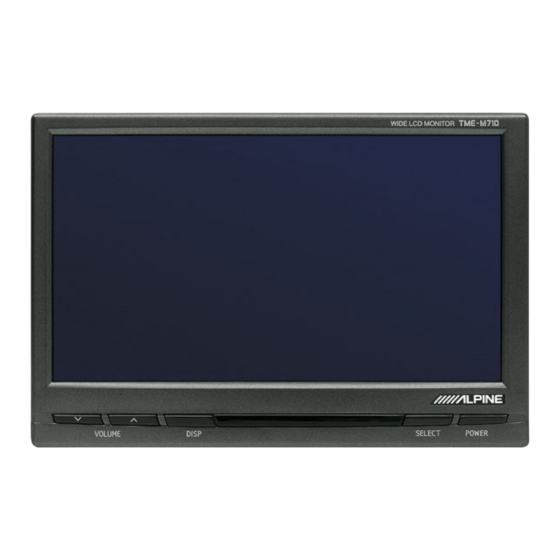

Alpine TME-M710 Service Manual

6.5-inch wide lcd monitor
Hide thumbs Also See for TME-M710:

Advertisement

Quick Links

Download this manual See also: Owner's Manual

SERVICE MANUAL

6.5-INCH WIDE LCD MONITOR
* The model is component system unit of Monitor Unit and AV Interface Unit.
Caution : The part marked with ! is generating a high voltage, so care will be necessary when working.
TME-M710
TO ALPINE Home Page
4 / 05-A
68E38530S01

Advertisement

loading

Related Manuals for Alpine TME-M710

Summary of Contents for Alpine TME-M710

  • Page 1: Service Manual

    * The model is component system unit of Monitor Unit and AV Interface Unit. Caution : The part marked with ! is generating a high voltage, so care will be necessary when working. TO ALPINE Home Page 4 / 05-A...
  • Page 2 <Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.
  • Page 3 TME-M710 Contents Packing Assembly Parts List Packing Method View Specifications System Connections 6 to 9 Adjustment Procedures 10 to 14 Extension Cable < Monitor Unit > 16 to 25 < AV Interface Unit > 26 to 36 NOTE : Due to continuing product improvement, specifications and designs are subject to change without notice.
  • Page 4 TME-M710 Packing Assembly Parts List Symbol Symbol Part No. Description Part No. Description #1 101 %1 103 68-02278Z74 MANUAL,OWNER'S 01E38563S01 ASS'Y,POWER WIRE $1 101 01E38578S01 ASS'Y,POWER WIRE &1 103 68-04094Z09 O/M,AOCH M710 %1 101 03E38574S01 SCR,M4X14(WP)(BLK) 01E38578S01 ASS'Y,POWER WIRE &1 101...
  • Page 5 TME-M710 Specifications <MONITOR> Screen Size ............................6.5-Type Wide Display System ............Low Reflection Rear Projection Type TN Liquid Crystal Panel Drive System ................... Active Matrix Drive, Nomally White Display Number of Picuture Elements ..............280,800 pcs. (H : 1,200 x V : 234 Dots) Light Source ............
  • Page 6 TME-M710 System Connections (North American Model Only) Make connections correctly. Improper connections may cause a fire or operation failure. Basic connection Battery Chassis TO CONTENTS - 6 -...
  • Page 7 45Remote control output lead (White/Brown) • Locate the unit and route the leads at least To remote control input lead of ALPINE products 10cm away from the car harness. used in the system. • Keep the battery power leads as far away from 6 Reverse Lead (Orange/White) other leads as possible.
  • Page 8 TME-M710 (General Foreign Model Only) Make connections correctly. Improper connections may cause a fire or operation failure. Basic connection TO CONTENTS - 8 -...
  • Page 9 34Remote control output lead (White/Brown) • If you add an optional noise suppressor, To remote control input lead of ALPINE products connect it as far away from the unit as used in the system. possible. Your Alpine dealer carries various...
  • Page 10 TME-M710 Adjustment Procedures 1. Preparation product : * TME-M770 and NAVIGATION (North American : NVE-N872A, General Foreign : NVE-N099P) are needed for adjustment. 2. Cancellation of AUX Regulation (Parking Wire) (North American Model Only) (General Foreign Model Only) (1) HAND : L <GND> (ON), FOOT : H <14V> (ON)...by initial setting (1) Parking Brake : L <GND>...
  • Page 11 TME-M710 TME-M770 TME-M710 MONITOR Unit MONITOR Unit RGB-IN AUX-OUT AUX-IN NAVIGATION NVE-N099P or NVE-N872A AV Interface Unit AV Interface Unit Figure 5 <Map information is displayed. > COMPOSITE SIGNAL TME-M710 MONITOR Unit TP525(VCOM) Oscilloscope AUX IN Figure 6 Pattern Generator...
  • Page 12 HSYNC Frequency Adjustment Figure 3 Adjust by VR504 so that it may be set to 15.73KHz. (4-E) (1) After connecting NAVIGATION(*) and TME-M710, switched NAV. Mode. (2) Monitored NAVI position adjustment screen by TME-M710. <NAVIGATION (*) Screen position setting value :...
  • Page 13 TME-M710 Test Point/ Step Operations Process P.W.Board Adjustment Connection Coordinates TP532 Adjust by VOLUME Up/Down Key as becoming the PAL PHASE Adjustment Figure 10 waveform of Figure 16. (4-F) Cancelled DIAG Mode by Pushing POWER Key at Figure 10 Cancellation DIAG Mode DIAG Mode.
  • Page 14 TME-M710 Figure 14 Figure 15 Figure 16 TO CONTENTS - 14 -...
  • Page 15 TME-M710 Extension Cable *Always connect the Extension Cable when making checks of voltage and repair. < Monitor Unit > KEY P.W.Board LCD Display MONITOR P.W.Board CB900 32PIN CB504 CB500 (1) 01E37339S01 (2) 01E37341S01 TO CONTENTS - 15 -...
  • Page 16 TME-M710 < Monitor Unit > Block Diagram Parts Layout on P.W.Boards and Wiring Diagram 18 , 19 Schematic Diagram 20 , 21 Terminal Voltage of IC/TR 22 to 24 Exploded View (Cabinet) NOTE : Due to continuing product improvement, specifications and designs are subject to change without notice.
  • Page 17 TME-M710 Block Diagram ACC+5V ACC+5V REG. ACC+3.3V ACC+9V ACC+3.3V ACC+5V REMO-CON REG. REMSEN RECEIVER IND. VSH,V5B PWR+5V ICC:Max1mA REG. DIMMER -16V -11V -11V DC/DC +13V -10V CONVERTER -10V DIMMER POW-CTL VGH-CTL VGL-CTL V-MUTE SHIELD-GND ISH:60mA RGB/VIDEO IGH:1mA S-GND IGL:-1mA +13V -10V -11V...
  • Page 18 Parts Layout on P.W.Boards and Wiring Diagram(1/2) TME-M710 KEY P.W.Board TO CONTENTS (Foil Side View) KEY P.W.Board (Component Side View) Caution:The part marked with is generating a high voltage, so care will be necessary when working. LCD504 ASSY,LB065WQ2 (Bottom Side View) MONITOR P.W.Board...
  • Page 19 Parts Layout on P.W.Boards and Wiring Diagram(2/2) TME-M710 TO CONTENTS MONITOR P.W.Board (Foil Side View) TP552 C590 Q506 Q507 R604 Q503 TP551 R631 R567 R560 R568 R559 R557 R513 R630 R514 C552 C563 C587 C505 C528 C585 R615 C531 RA500...
  • Page 20 IC502 BA05SFP R565 4.7k-F SD502 Q504 SB05-05CP XN1A311 L510 R558 IC512 330u BA05SFP L505 LCD504 ASSY, LB065WQ2 2.2u Q501 2SC4540 C586 R567 R556 18k-F Q500 C569 2SA1735 SD501 SD500 C570 SB05-05CP MA716 R557 R568 R608 L512 C603 C578 R586 12k-F 1000p Q502 470p...
  • Page 21 CB900 CONN, FFC-7P R906 E900 10/16 R901 R902 R903 R905 47-1/4F IC900 2.7k-1/4-F 3.9k-1/4-F 8.2k-1/4-F 27k-1/4-F RS-181 SW900 SW901 SW902 SW903 SW904 SKRPACE010E2 SKRPACE010E2 SKRPACE010E2 SKRPACE010E2 SKRPACE010E2 Q901 DTC124EE R904 TO P. W. BOARD TO PARTS LIST TO CONTENTS - 21 -...
  • Page 22 TME-M710 Terminal Voltage of IC/TR Ref.No. Pin No. Voltage (V) MODE Ref.No. Pin No. Voltage (V) MODE IC501 IC505-2 IC502 IC503 IC506 IC504 IC507 IC508-1 IC505-1 TO SCHEMATIC TO CONTENTS - 22 -...
  • Page 23 TME-M710 Ref.No. Pin No. Voltage (V) MODE Ref.No. Pin No. Voltage (V) MODE IC508-2 IC509-2 NTSC/PAL IC509-1 TO SCHEMATIC TO CONTENTS - 23 -...
  • Page 24 TME-M710 Ref.No. Pin No. Voltage (V) MODE Ref.No. Pin No. Voltage (V) MODE IC509-3 Q504 IC510 Q505 Q506 IC511 Q507 IC512 Q508 -0.5 Q509 -0.4 IC513 Q510 IC900 Q511 Q512 Ref.No. Pin No. Voltage (V) MODE DIMMER Q500 Q901 ON/OFF 0/3.8...
  • Page 25 Exploded View (Cabinet) TME-M710 (Monitor Unit) SP502 LCD504 CB501 TO PARTS LIST TO CONTENTS - 25 -...
  • Page 26 TME-M710 < AV Interface Unit > Block Diagram Parts Layout on P.W.Board and Wiring Diagram 28 , 29 Schematic Diagram Terminal Voltage of IC/TR 31 to 33 Description of IC Terminal 34 , 35 Exploded View (Cabinet) NOTE : Due to continuing product improvement, specifications and designs are subject to change without notice.
  • Page 27 TME-M710 Block Diagram SHIELD-GND C.SYNC/VIDEO Switching PROTECTION S-GND CONVERTER CIRCUIT 9V REG. AUDIO 9V REG. REG. REG. NTSC/PAL RESET CS-DECORDER CS-DAC REVERSE P-BRAKE H-BRAKE F-BRAKE CS-OSD ILUM KEY IN REMOUT1 REMSEN REMOUT2 REM 1 ACC+9V REM 2 u-COM REM 3...
  • Page 28 Parts Layout on P.W.Boards and Wiring Diagram(1/2) TME-M710 TO CONTENTS B.BOX P.W.Board (Component Side View) To Monitor Unit (MONITOR P.W.Board (CB501)) CB101 DIN100 CB100 R256 R247 ZD114 R248 R185 ZD100 R169 ZD111 R249 R152 E105 R159 ZD101 R151 E106 ZD102...
  • Page 29 Parts Layout on P.W.Boards and Wiring Diagram(2/2) TME-M710 TO CONTENTS B.BOX P.W.Board (Foil Side View) TP130TP129 TP152 TP158 TP156 TP154 TP161 TP151 TP150 TP147 TP146 TP145 TP159 TP149 TP163 TP128 TP127 TP126 TP124 TP165 TP123 TP133 TP132 TP148 TP166 TP164...
  • Page 30 DIN100 DIN,TCS7741-01WA R125 1k-1/4 R126 1k-1/4 R127 1k-1/4 R239 Q119 FMC2 Q112 1k-1/4 R240 DTC124EKA 1k-1/4 E157 CB101 Q114 1/50 CONN,CSS5020-20P FMC2A TP128 TP129 R211 R213 R214 C143 TP130 IC100 TP131 R268 0.01 NJM2130F R250 R123 E105 1/50 Q113 N.U. 1k-1/4 E160 DTC124EKA...
  • Page 31 TME-M710 Terminal Voltage of IC/TR Ref.No. Pin No. Voltage (V) MODE Ref.No. Pin No. Voltage (V) MODE IC100 IC107-2 IC101 IC108 IC109 IC105 IC110 IC106 IC111 0.24 IC112 IC107-1 IC113-1 TO SCHEMATIC TO CONTENTS - 31 -...
  • Page 32 TME-M710 Ref.No. Pin No. Voltage (V) MODE Ref.No. Pin No. Voltage (V) MODE IC113-2 IC114-2 IC116 IC117 IC114-1 IC118 15.5 15.3 IC119 Ref.No. Pin No. Voltage (V) MODE Q100 Q101 TO SCHEMATIC TO CONTENTS - 32 -...
  • Page 33 TME-M710 Ref.No. Pin No. Voltage (V) MODE Ref.No. Pin No. Voltage (V) MODE Q102 Q117 Q103 Q119 Q104 Q105 Q121 Q106 Q122 Q107 F.BRAKE Q123 0/2.6 ON/OFF Q108 H.BRAKE Q124 3.2/4.2 ON/OFF Q109 Q125 Q110 Q126 Q111 Q127 P.BRAKE Q112...
  • Page 34 TME-M710 Description of IC Terminal H8/3687F : IC114 Symbol Terminal Description PB6/AN6(GND) GND connect terminal. PB7/AN7(GND) AVCC ACC +5V connect terminal. X2(NC) No connect terminal. X1(GND) GND connect terminal. Internal power supply terminal. RESET RESET signal input terminal. TEST(GND) GND connect terminal.
  • Page 35 TME-M710 Symbol Terminal Description CS_DAC CS signal output terminal for DAC. P70/SCK3_2(NC) No connect terminal. TEST_RXD(PULL-UP) Pull-up connect terminal. NTSC/PAL NTSC/PAL judgment signal input terminal. P14/IRQ0(NC) P15/IRQ1/TMIB1(NC) No connect terminal. P16/IRQ2(NC) P17/IRQ3/TRGV(NC) REVERSE REVERSE signal input terminal. H_BRAKE H_BRAKE signal input terminal.
  • Page 36 TME-M710 Exploded View (Cabinet) (AV Interface Unit) JK101 CB100 JK100 CB101 DIN100 JK102 TO PARTS LIST TO CONTENTS - 36 -...
